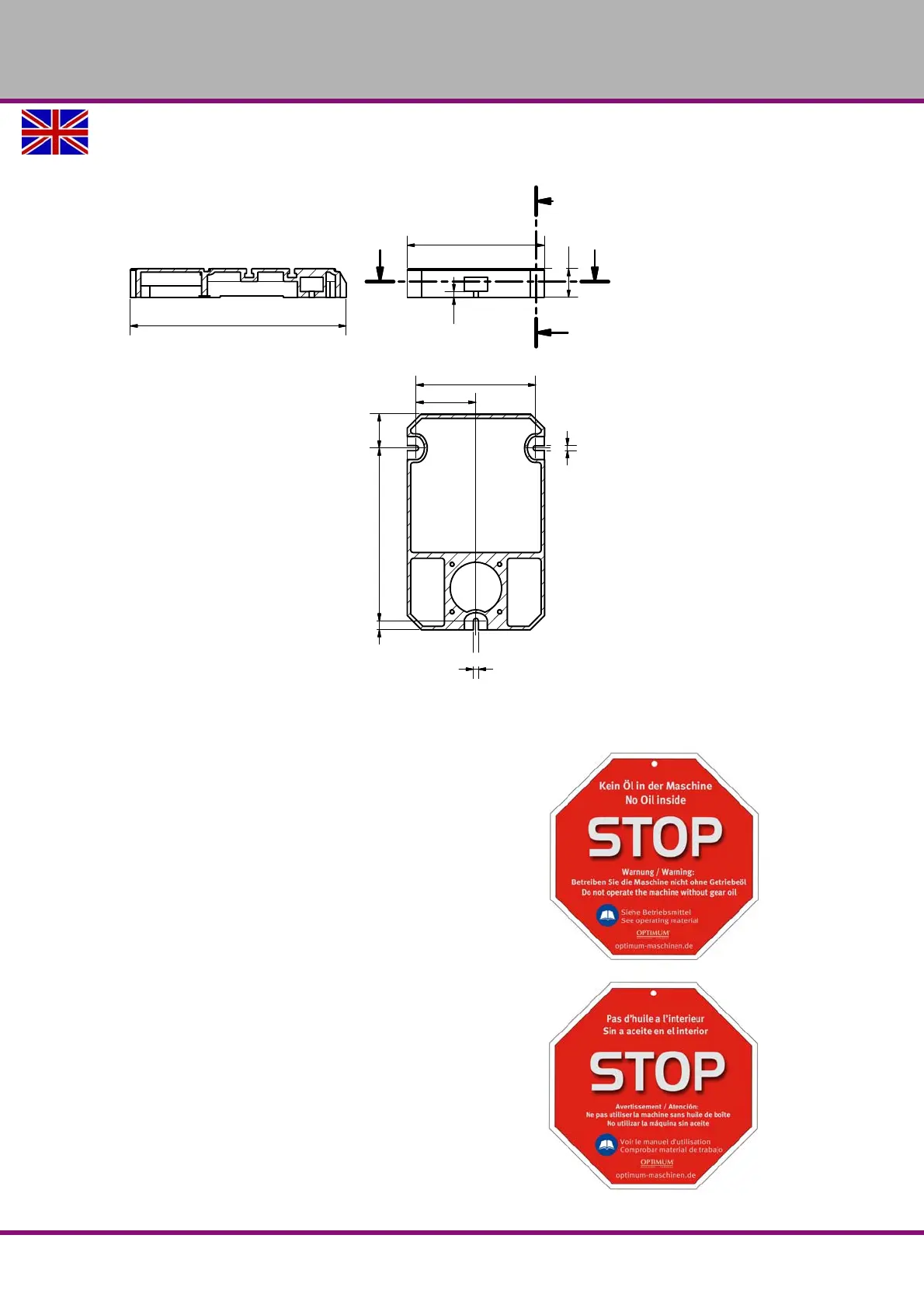

3.6.1 Assembly drawing
3.7 Lubrication
With the first lubrication and greasing your new machine, oil in
the gear and the coolant system is filled. Once these opera-
tions have been carried out, the machine can be started up.
The oil tank of the gearbox must be filled to half way up the
sight glass. Filling quantity about 3 liters.
The oil must be changed 200 hours after being filled for the
first time, then after every 2000 operating hours.
Use the oil types recommended in the reference table
"Lubricant“ on page 63. This table can be used to com-
pare the characteristics of each different type of oil of your
choice.
The coolant tank must be filled to half way up the sight
glass. Filling quantity about 4 liters. Fill the coolant tank
over the drilling table.
A-A
B-B
AA
B
B
18
18
418
209
604
20
755
120
31
480
100
