1 Operation
1.1 Control and indicating elements

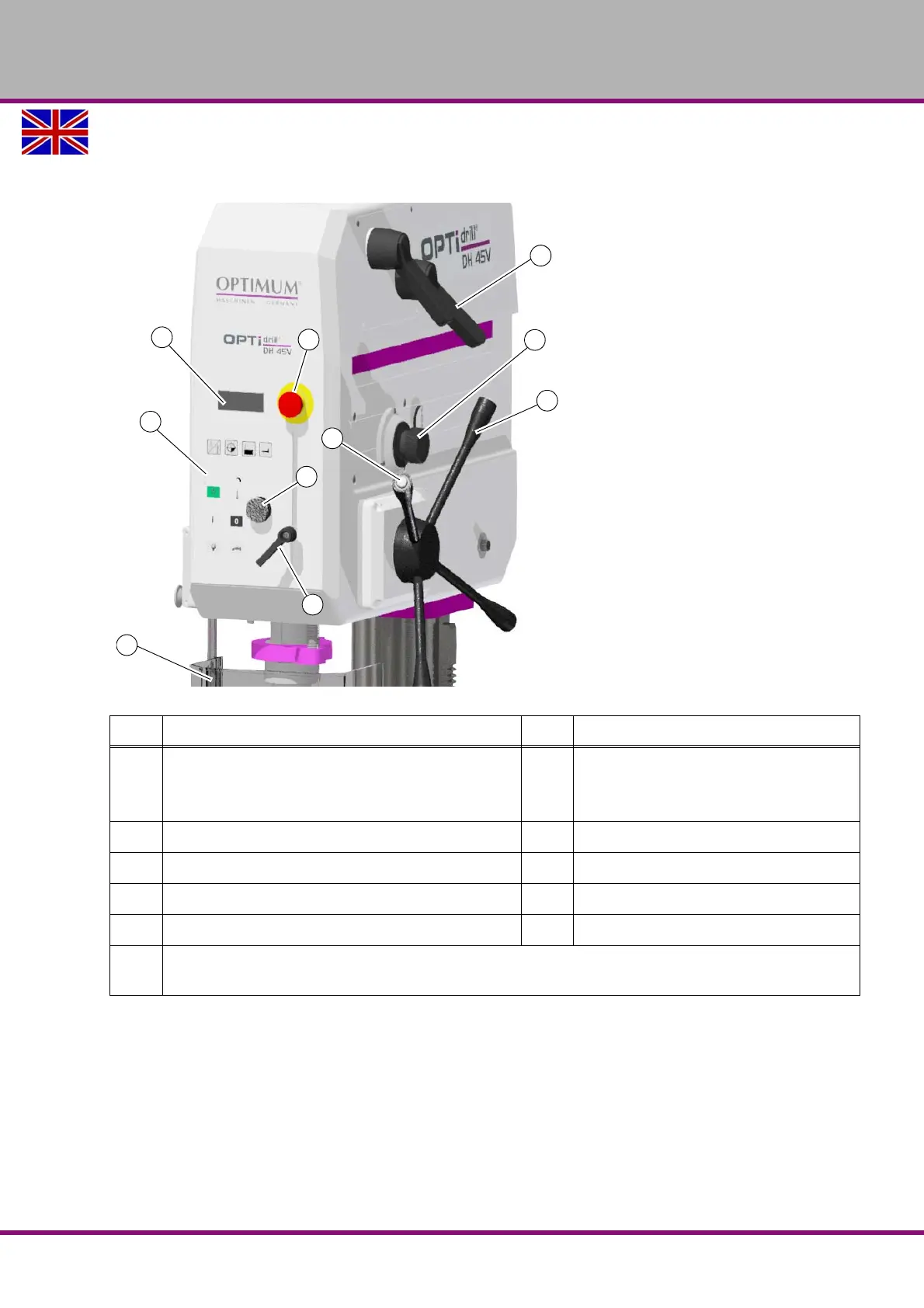

Img. 1-1: Control and indicating elements
6
8
9
5
7
3
2
1
4
10
Pos. Designation Pos. Designation
1
Display
Speed │Drill depth │Tapping depth │Piece coun-
ter
2
Emergency stop switch
3
 "Control panel“ on page 32
4
Mechanical drill depth clamping lever
5
Mechanical drill depth clamping lever
6
Drill chuck guard
7
Feed push button
8
Speed gear lever
9
Feed selector
10
Spindle sleeve lever
Status displays on the inverter:
 "Sinamics G110M, Operating Instructions, 06/2016, FW V4.7.6,
A5E31298649B AG“ on page 67
