Version 1.1.6 2014-10-16 138 Original operating instructions
F150DE | GB
11.14.2Werkzeugwechsler 2-4 -Tool changer 2-4

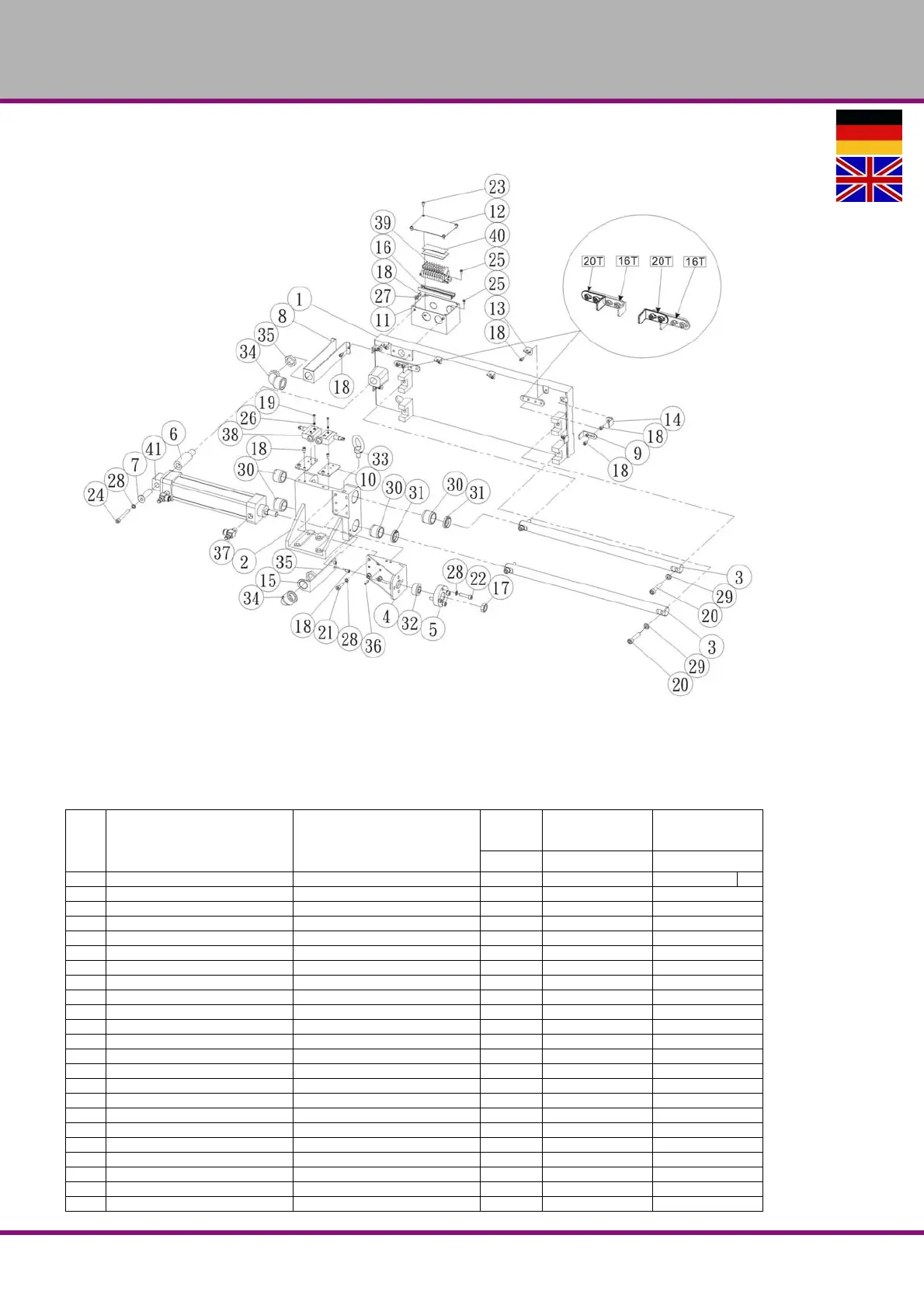

Abb.11-12: Werkzeugwechsler 2-4 -Tool changer 2-4
Ersatzteilliste Werkzeugwechsler 2-4 - Spare part list tool changer 2-4
Pos.
Bezeichnung Designation
Quan-
tity
Size Item number
Qty. Size Item no.
1 Carrier Carrier 1 0351121011 01
2 Fixture Holder 1 0351121011 02
3 Zugstange Pull rod 2 0351121011 03
4 Fixture Holder 1 0351121011 04
5 Lagerbock Bearing bracket 1 0351121011 05
6 Zwischenwelle Counter shaft 1 0351121011 06
7 Buchse Bushing 1 0351121011 07
8 Fixture Holder 1 0351121011 08
9 Fixture Holder 2 0351121011 09
10 Fixture Holder 2 0351121011 10
11 Schaltkasten Wire box 1 0351121011 11
12 Abdeckung Cover 1 0351121011 12
13 Fixture Holder 6 0351121011 13
14 Fixture Holder 2 0351121011 14
15 Fixture Holder 1 0351121011 15
16 Aluschiene Aluminium track 1 0351121011 16
17 Mutter Nut 1 M16
18 Schraube Screw 22 M6
19 Schraube Screw 4 M4
20 Schraube Screw 4 M10
21 Schraube Screw 4 M8
22 Schraube Screw 4 M8
23 Schraube Screw 4 M5
