Technical data
Version 1.1.6 dated 2014-10-16 Page 25Original operating instructions
F150 GB
2.12 Environmental conditions- operation
2.13 Environmental conditions - storage
2.14 Optional coolant delivery through the spindle
CTS - C oolant T hroug S pindle

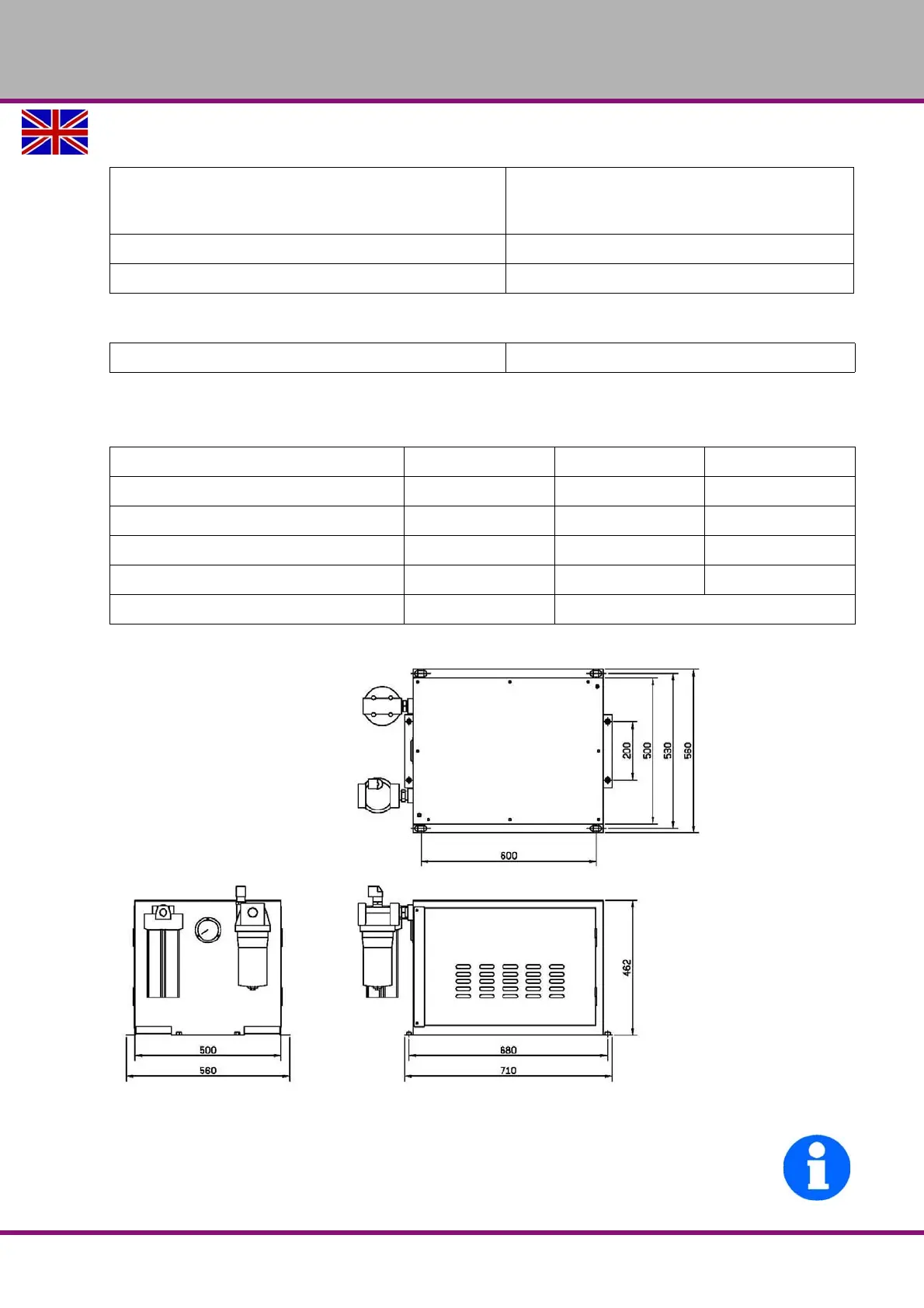

2.14.1 Dimensions integrated unit 20 bar
Img.2-1: 351121008
INFORMATION
The integrated CTS unit is supplied with coolant from the coolant tank of the machine.
Temperature 19 - 21 °C (for an optimum milling result)
19 - 21 °C (for operation without malfunc-
tions)
Admissible relative humidity 5...80 % no condensation
Compressed air 700...1060 hPa
Temperature 5 - 45 °C
Integrated unit External unit External unit
Item no. 351121008 351121009 351121003
Pump pressure 20 bar 20 bar 70 bar
Outlet filter 40μm25μm25μm
Pre filter pump 150μm40μm40μm
Tank capacity [ liter ] - 165
