Operation
Version 1.1.6 dated 2014-10-16 Page 75Original operating instructions
F150 GB

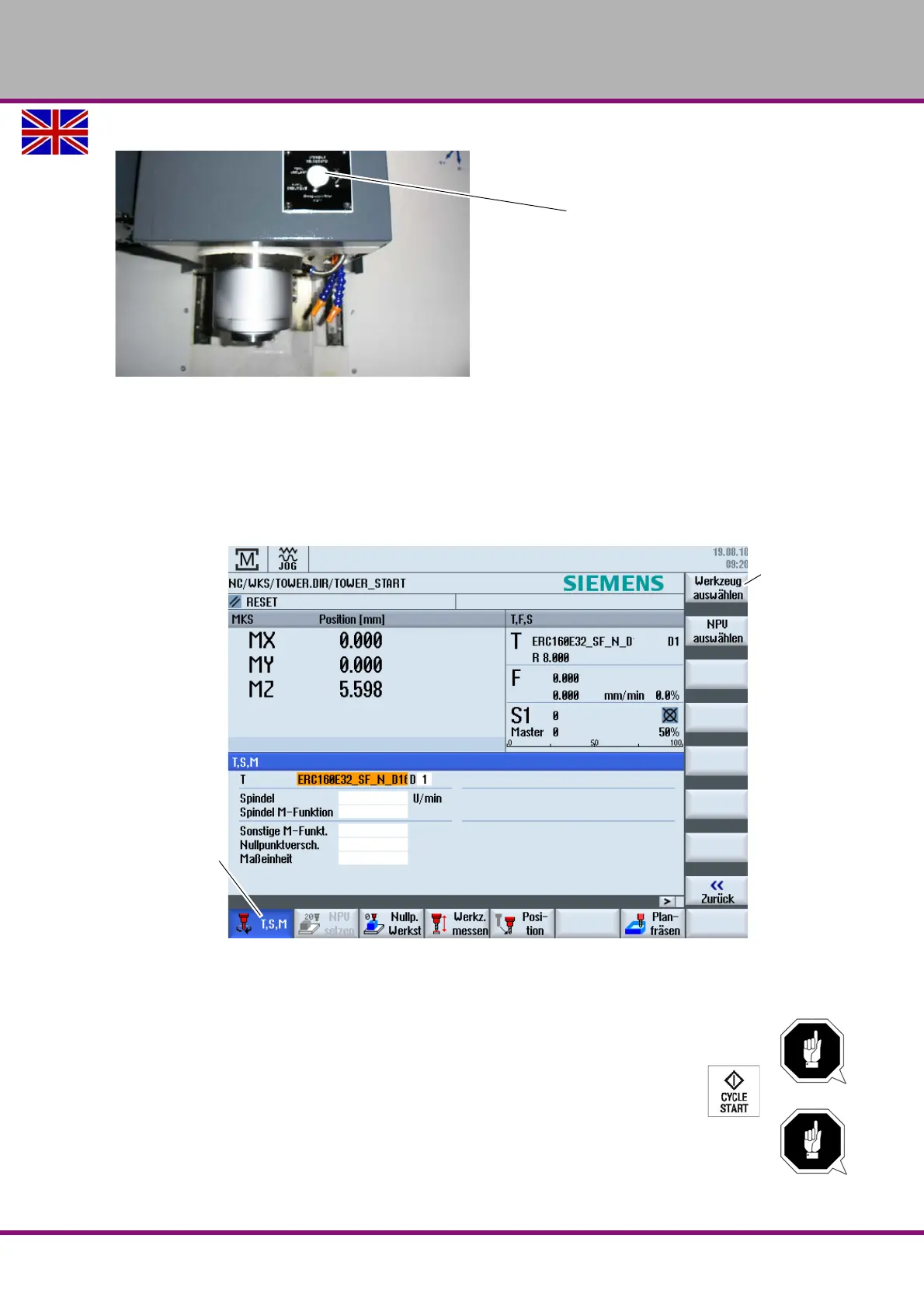

Img.6-4: Manual tool change
When inserting a tool for the first time, please observe  "First insertion of a tool“ on page 74
In case that you are working using the tool changer and you would like to insert new tools you
must change to the operating mode <JOG> (Jog mode) "T, S, M“ since it is only possible to
change the tool via the spindle.
 Manually change the tool in the spindle as described above. Perform the following com-
mands for changing resp. replacing.
 Press the softkey button "T, S, M".
 Actuate the softkey "Select tool".
NOTE!
The tool must be created in the tool magazine.
 Select the tool by means of the arrow key and press <CYCLE START>. The tool
in the tool magazine is changed.
NOTE!
The tool is displayed in the tool list.
Push button
Softkey button
"Select tool"
Softkey button
„T, S, M"
