Version 1.3.0 dated 2016-12-16Page 32 Original operating instructions
MF2 VarioGB

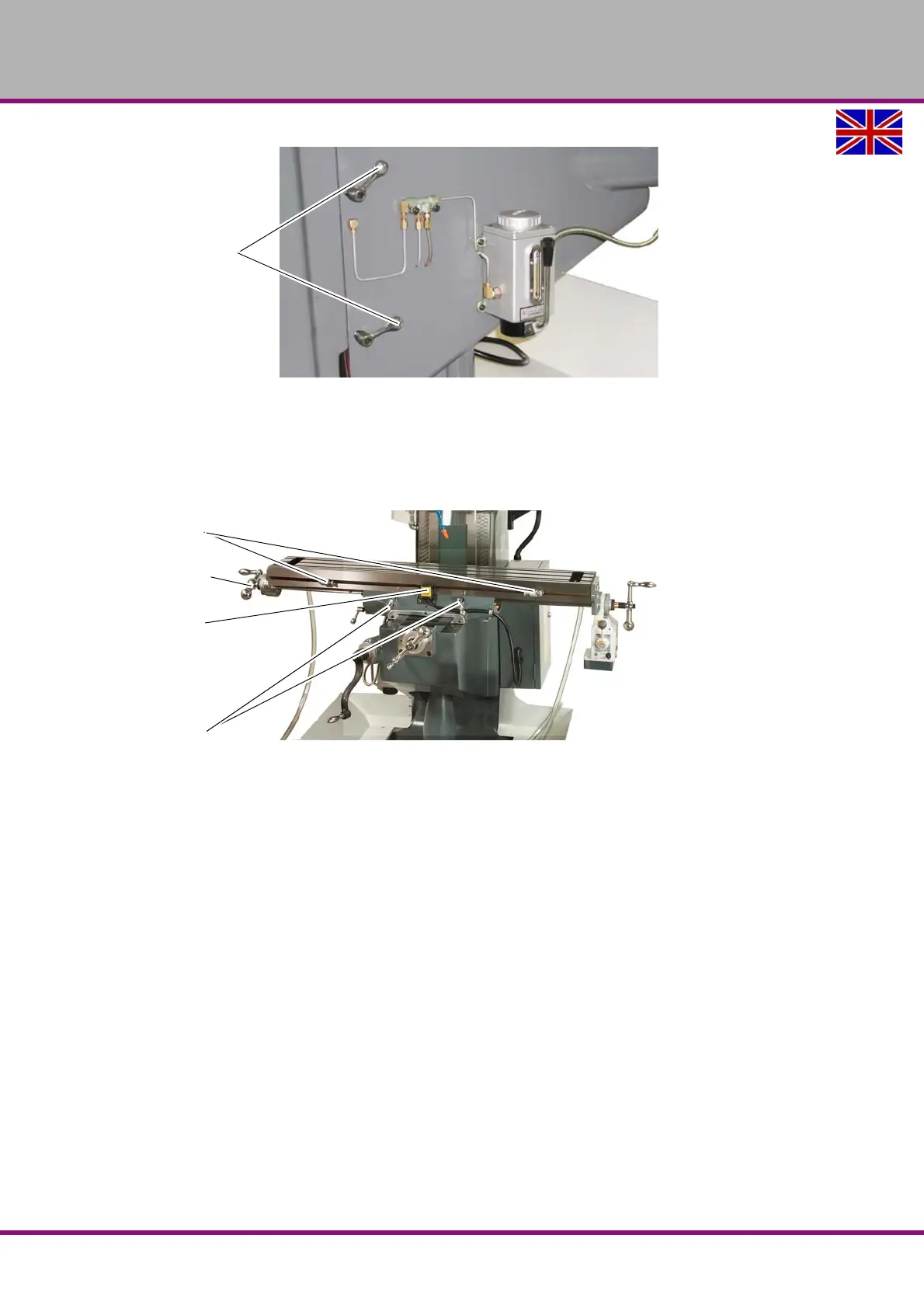

Img.4-7: Clamping lever
4.6 Moving the cross table left or right (X-axis)
There are two ways of moving the cross table on the X axis.
 by turning the hand wheels 4 on the right or left of the table.
 Using the automatic feed motor.
Img.4-8: Moving the cross table on the X-axis
4.6.1 Manual movement on the X axis
 Loosen the tightening lever.
 Engage the crank handle by pushing it towards the clutch.
 Turn the handle to the required position for the cross table.
 The scale has a graduation of 0.2 mm. The zero point can be adjusted using the knurled
nut.
 Make sure to tighten it again in the required position.
Clamping lever
End stops
Hand wheel
End switch
Clamping lever
