Version 1.3.0 2016-12-16 59Originalbetriebsanleitung
MF2 Vario DE | GB
6.4 Zentralschmierung - Central lubrication

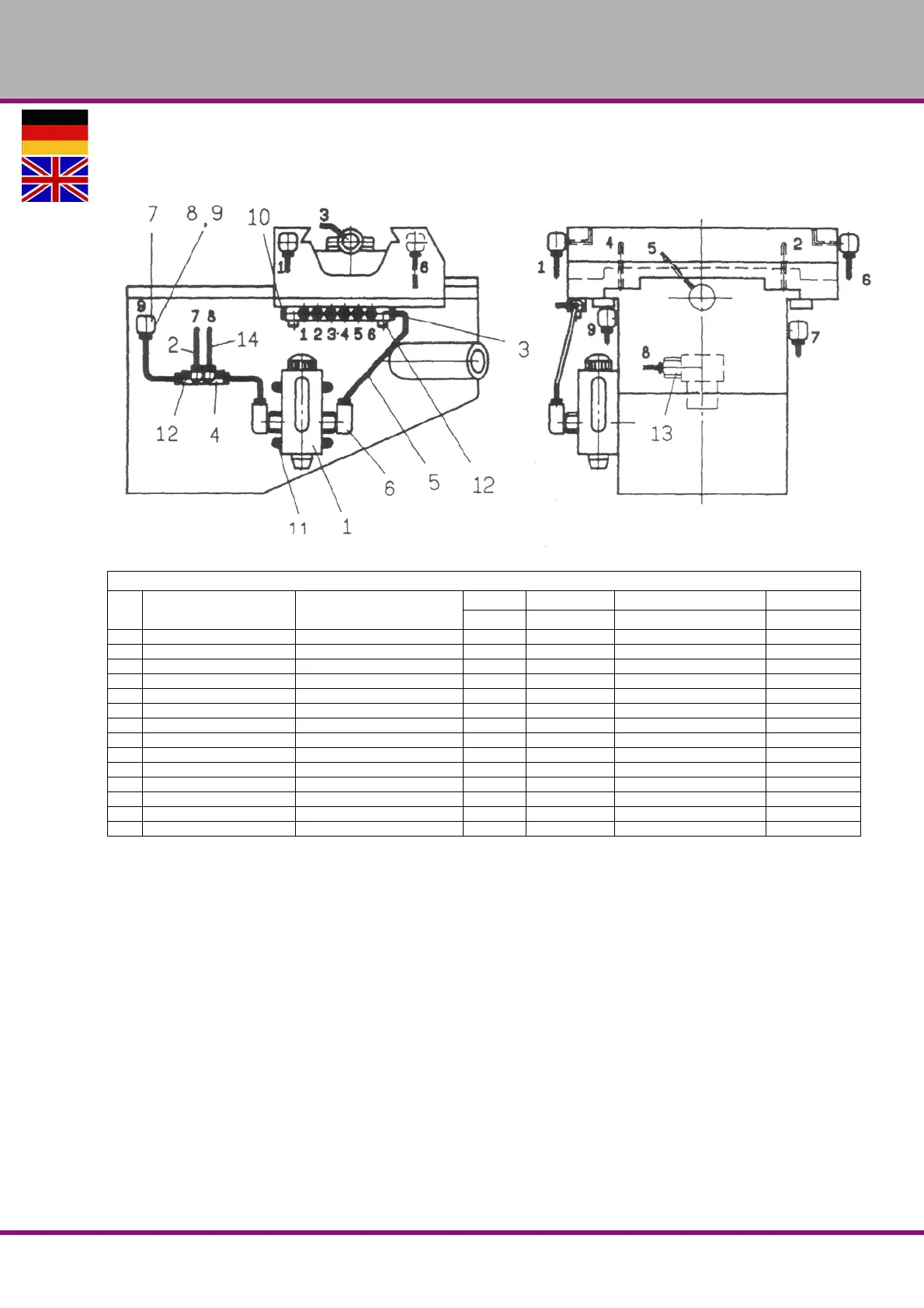

Ersatzteilliste Zentralschmierung - Spare parts list central lubrication
Pos.
Bezeichnung Designation
Menge Größe Zeichnungsnr. Artikelnr.
Qty. Size Drawing no. Item no.
1 Öler Oil filler cup 1 CLA-8 0333602041
2 Aluminiumstück Aluminium piece 1 13,5 ALMP-04 0333602042
3 Öl-Regelverteiler Oil regulation distributor 1 A-8 0333602043
4 Öl-Regelverteiler Oil regulation distributor 1 A-4 0333602044
5 flexibler Stahlschlauch Flexible steel tube 1 4x550 A-5 0333602045
6 Winkelanschluss Angular connection 2 PH-4011 0333602046
7 Winkelanschluss Angular connection 6 PI-401 0333602047
8 Überwurfmutter Swivel nut 20 PA-4 0333602048
9 Hülse Bushing 20 PB-4 0333602049
10 Anschlussstück Connection piece 1 PG-004 03336020410
11 Schraube Screw 4 M6x14 03336020411
12 Sechskantschraube Hexagon-head screw 4 M5x25 TS-1502061 03336020412
13 Anschluss Joint 1 PD-401 03336020413
14 Nylonstück Nylon piece 1 4x700 A-14 03336020414
