Optimum OPTIMILL MF 2V - Inclining the Spindle Head up or down

OPTIMUM
MASCHINEN - GERMANY
Version 1.3.0 dated 2016-12-16Page 34 Original operating instructions
MF2 VarioGB

The scale has a precision of 0.2 mm. The zero point can be adjusted using the knurled nut.
 Make sure to tighten it again in the required position.

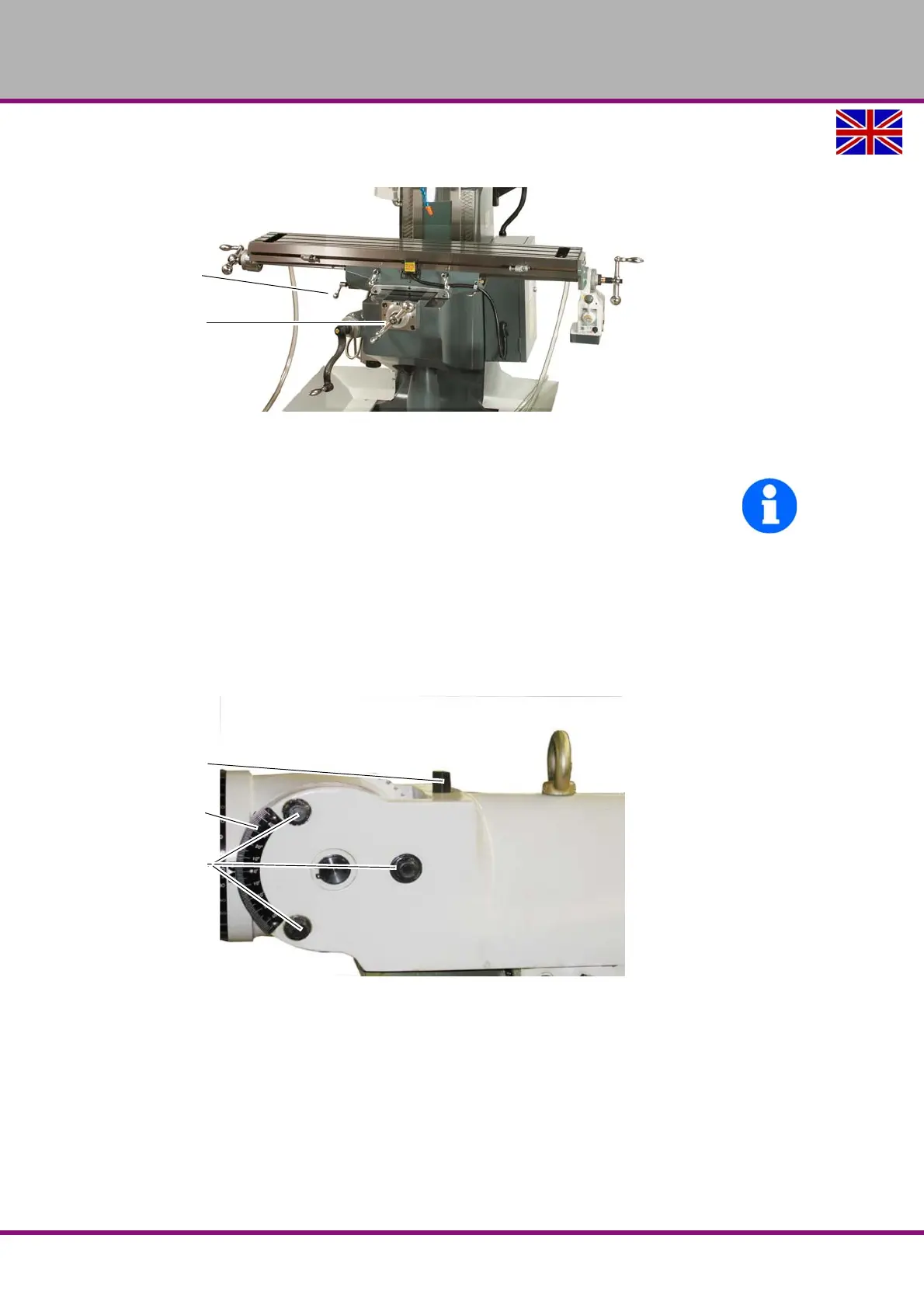

Img.4-9: Moving the cross table to the Y-direction
4.8 Inclining the spindle head up or down
INFORMATION
Use a 17/19 polygonal spanner for the clamping screws and movement screws. One is
included among the accessories.
The spindle head can be inclined forward and back 45°.
Proceed as follows:
 Loosen the clamping screws (3 units) located on the spindle head-holder.
 Position the spindle head in the required position by screwing in or out the movement
screw.
 You must re-tighten the clamping screws.
Img.4-10: Inclining the spindle head up or down
Clamping lever
Hand wheel
Movement screw
Scale ± 45°
Clamping screws
