5.3 Lubricating
The multi-milling machine is equipped with a central lubrication system. This oils most greasing
points.
Fill quill oil in the oiler. (machine oil 628 Mobil)
Lubricate lubricating nipples using ball bearing grease.
every day

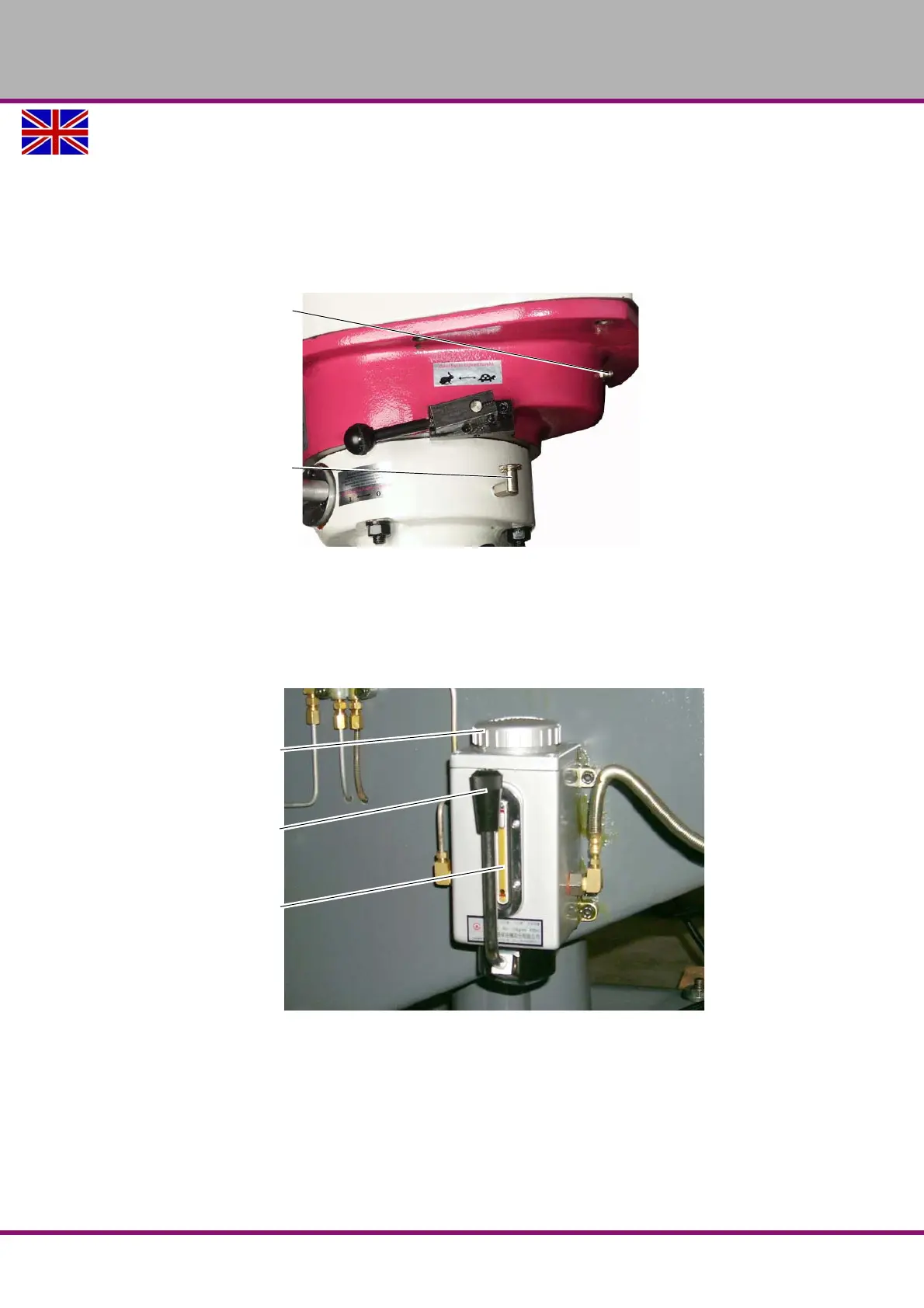

Img.5-1: Quill oiler
Activate the central lubrication system (Abbildung 5-2 ) using the lever. One stroke per
operating hour.
Refill central lubrication system, if required. Loosen lid and fill in machine oil 628 Mobil up to
the maximum marking of the sight glass.
Close the lid again.
Img.5-2: Central lubrication
every week Lubricate the cross table lifting spindle with bearing oil (6).
Lubricating nipple
Oiler cup
