Version 1.3.0 dated 2016-12-16 Page 35Original operating instructions
MF2 Vario GB
4.9 Orienting the spindle head to the right or left
The spindle head can be oriented 90° to the right or left.
Proceed as follows:
 Loosen the clamping screws (4 units).
 Position the spindle head in the required position by screwing in or out the movement
screw.
 Imperatively fasten the clamping screws.

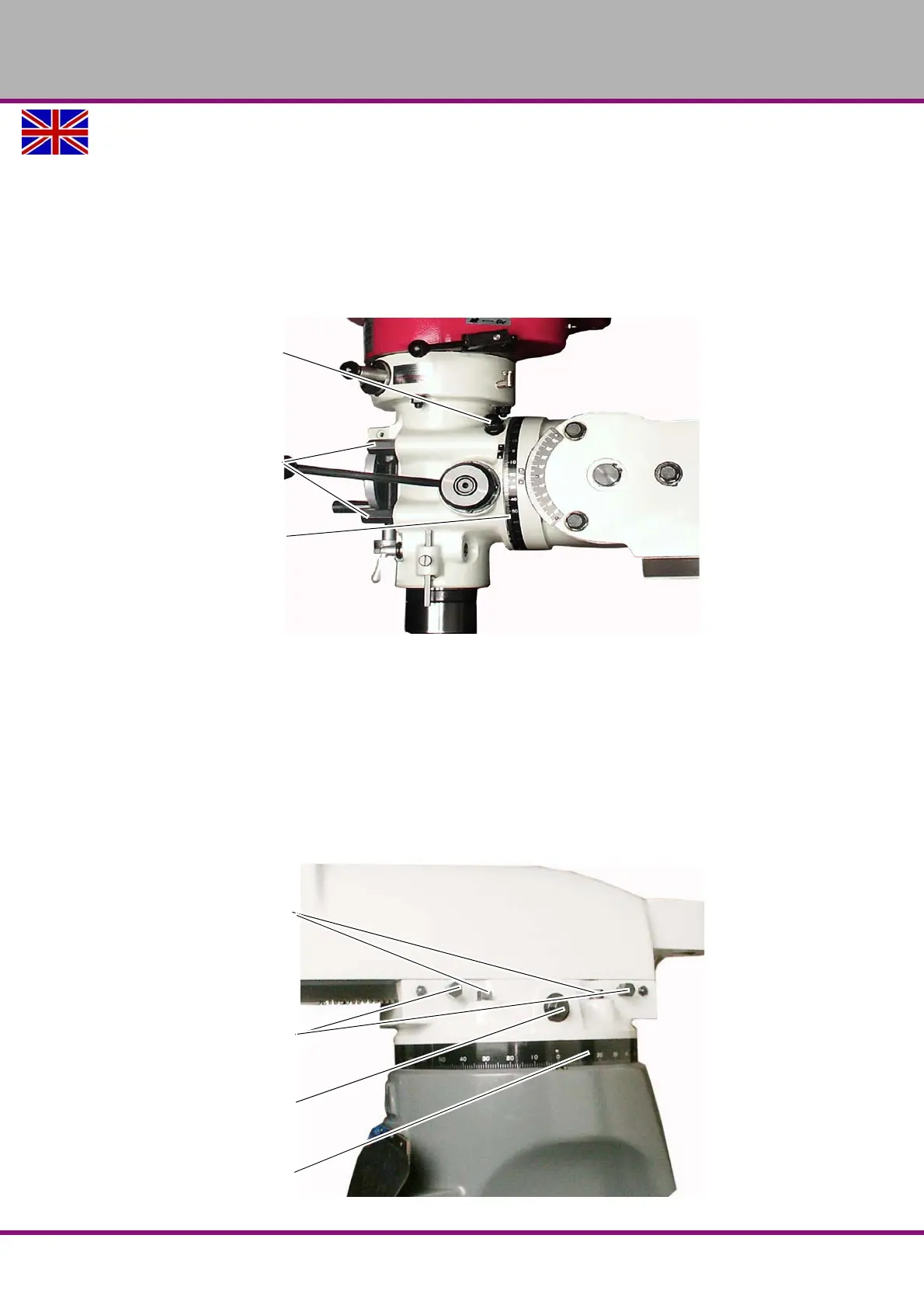

Img.4-11: Moving the spindle head to the right or left
4.10 Moving the spindle head-holder forward or back
You can move the spindle head-holder forward or back.
Proceed as follows:
 Loosen the clamping screws (2 units).
 Position the spindle head-holder in the required position by screwing in or out the move-
ment screw.
 Imperatively fasten the clamping screws.
Img.4-12: Moving the spindle head-holder forward or back
Movement screw
Clamping screws
Scale ± 90°
Clamping screws for moving the
spindle head-holder
back and forward
Clamping screws for turning
the spindle head-holder
Movement screw for moving the
spindle head-holder back and
forward
back and forward
± 90º scale for turning the
spindle head-holder
