Check that the foundation has sufficient load-bearing capacity and rigidity. "Total
weight“ on page 17
Place the multi milling machine on the provided foundation.
Fix the machine to the substructure through the holes pre-drilled for this purpose.
WARNING!
The nature of the foundation and type of fixings used to secure the machine base to the
foundation must be capable of absorbing the loads caused by the machine. The
foundation must be level. Check that the machine foundation is horizontal by using a
spirit level.
3.5 Fastening
In order to provide for the necessary stability of the multi-milling machine it is necessary to
firmly bolt the base of the machine to the subsurface. We recommend that you use shear con-
nector cartridges or heavy-duty anchors.
Fix the foot of the multi-milling
machine to the substructure with the
provided through-holes.
The through-bore are marked with
arrows on the machine base.

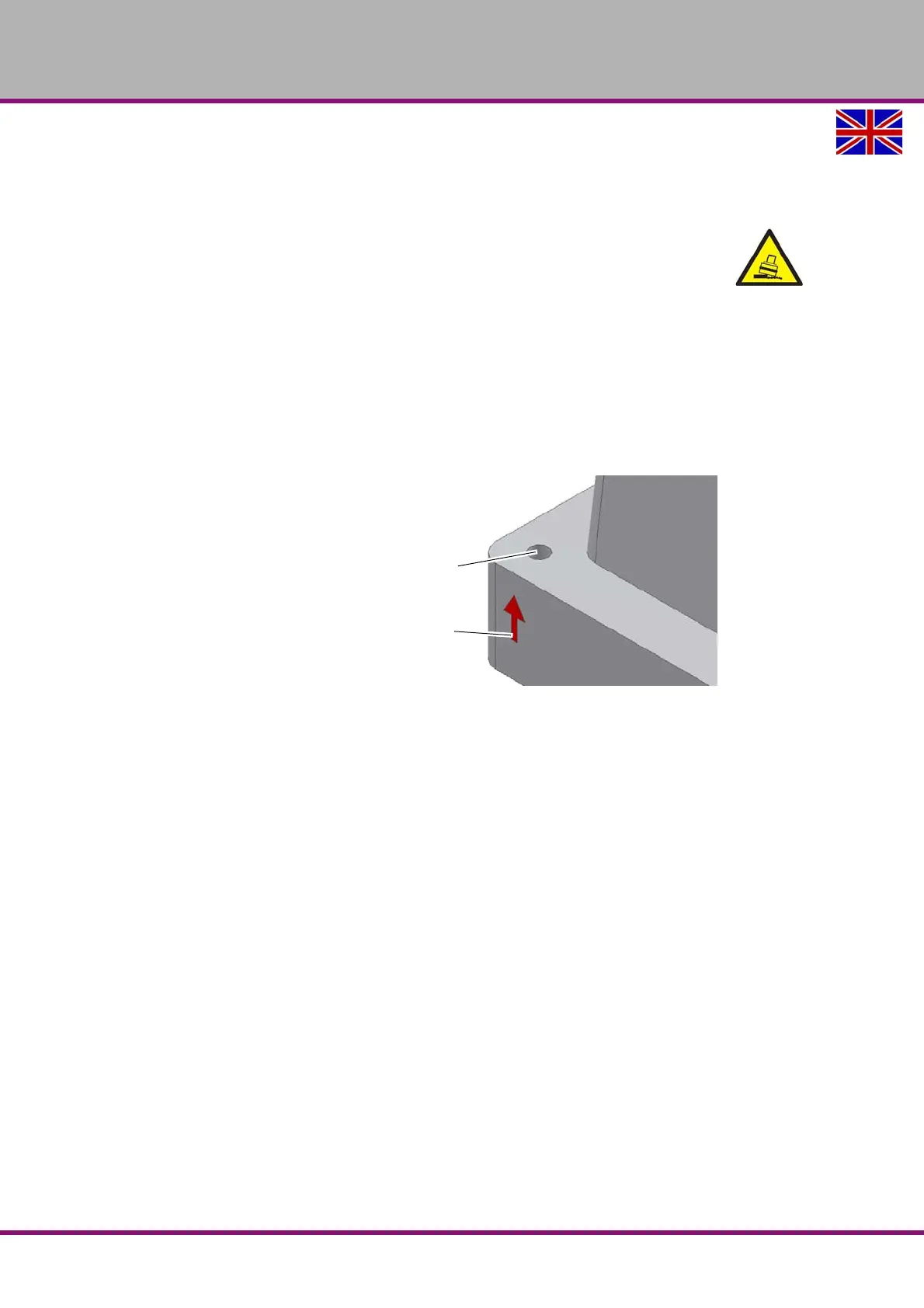

Img.3-2: Attachment points on machine foot
