Remove a Storage Drive
120 Oracle Database Appliance Service Manual • June 2017

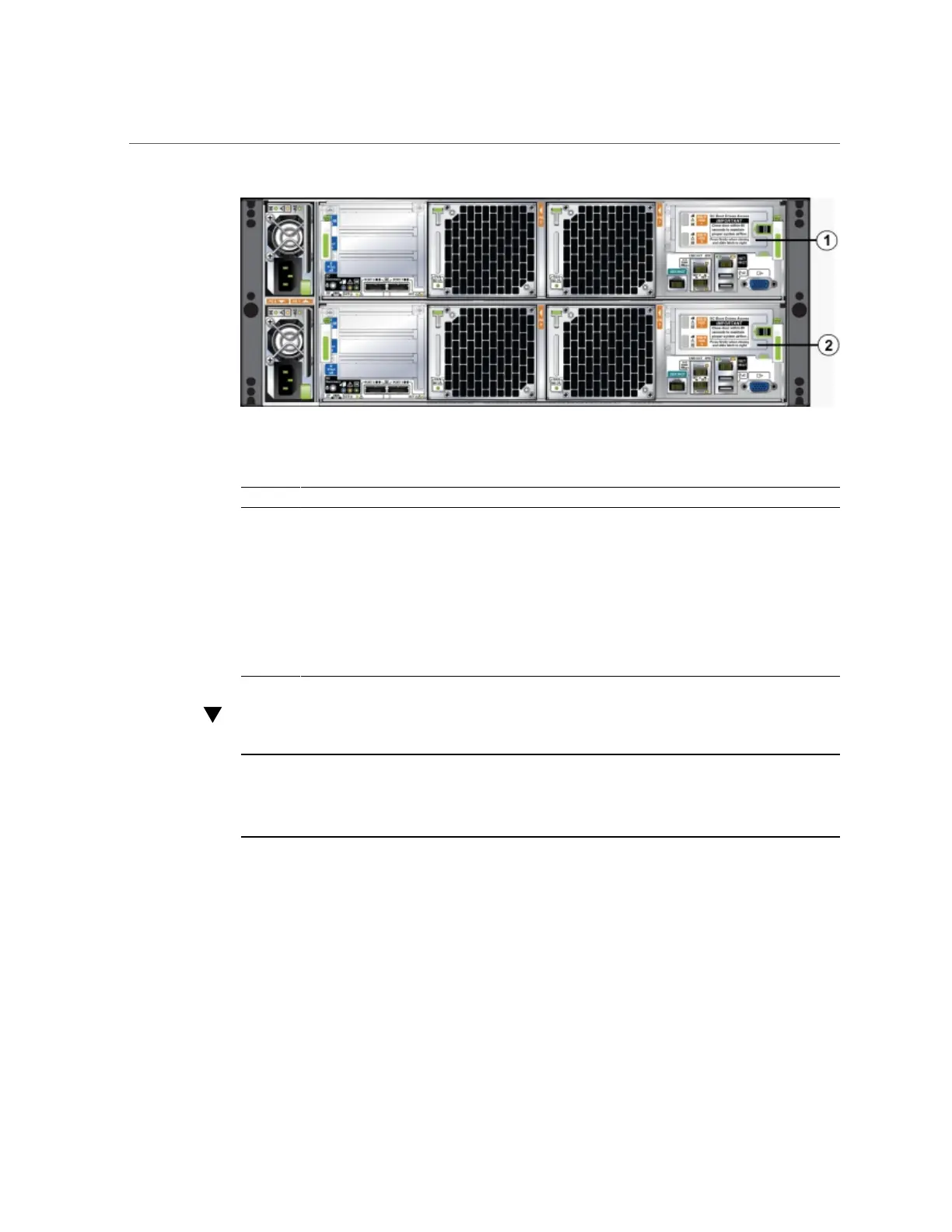

The following table shows the location and numbering of the boot drives.
Callout Drive Locations and Identification
1 Boot Drives at the back of server node 1. Location and identification of the server node 1 boot drives as
listed in Oracle ILOM:
■
/SYS/MB/RHDD1
■
/SYS/MB/RHDD0
2 Boot Drives at the back of server node 0. Location and identification of the server node 0 boot drives as
listed in Oracle ILOM:
■
/SYS/MB/RHDD1
■
/SYS/MB/RHDD0
Remove a Storage Drive
Note - Information in this appendix does NOT apply to Oracle Database Appliance X3-
2, Oracle Database Appliance X4-2, Oracle Database Appliance X5-2 or Oracle Database
Appliance X6 series. Refer to the preceding chapters in this document for information on
servicing those systems.
This section describes removing a storage drive from Oracle Database Appliance Version 1.
1.
Identify the storage drive that you want to remove.
If a drive has failed, its amber Service Required LED will be lit. For information on drive status
LEDs, see “Storage and Boot Drive Status Indicators” on page 41. For specific drive locations,
see “Storage and Boot Drive Locations” on page 118.
2.
Remove a storage drive.
a.
On the drive you plan to remove, push the storage drive release button to
open the latch [1].
