Install PCIe Riser in Server Nodes
AppendixA • Servicing the Oracle Database Appliance Version 1 145
Access these screws from the rear of the server node.
6.

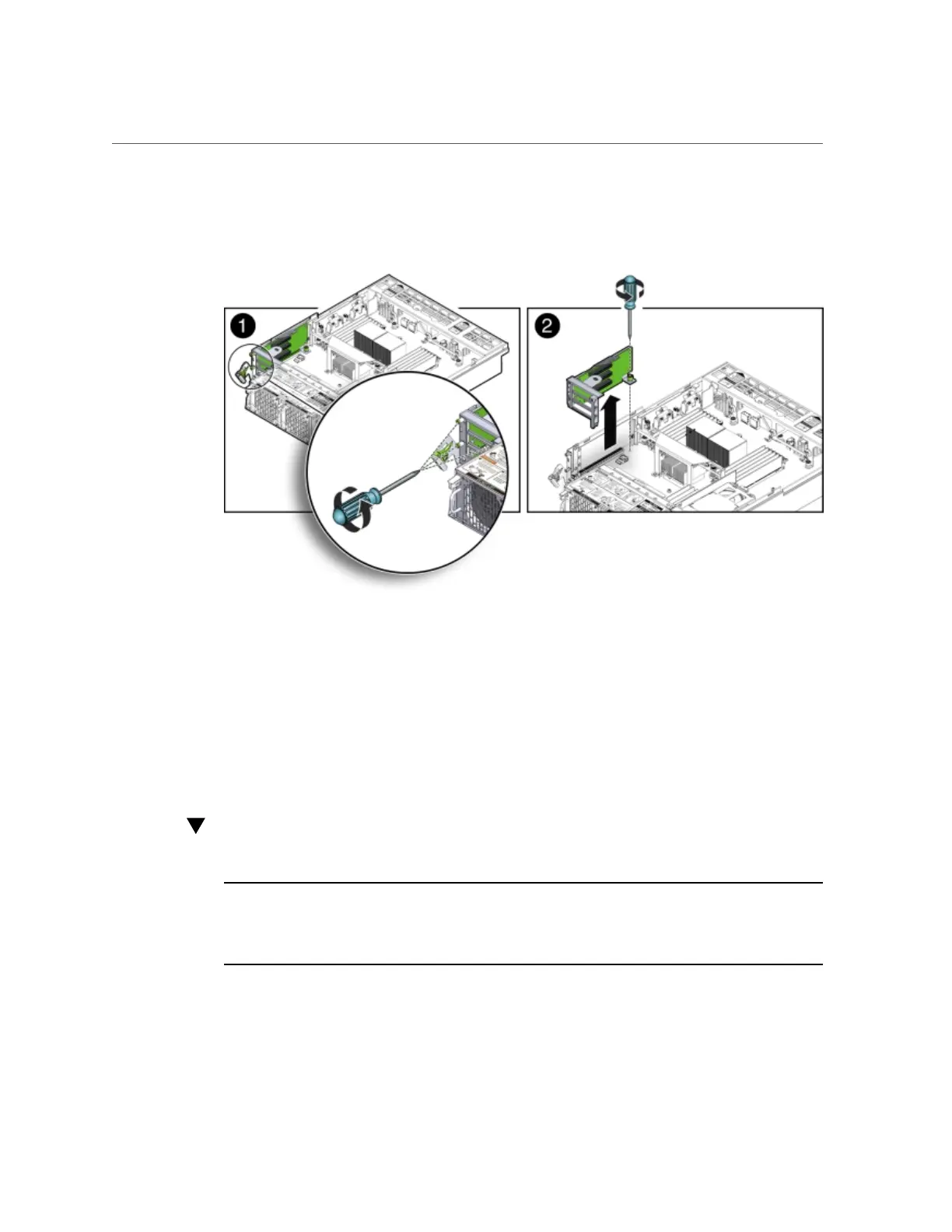

Loosen the green captive Phillips screw that secures the PCIe riser to the
motherboard [2].
7.
To lift the PCIe riser out of the server node, grasp the front-most side plastic tab
with one hand and the rear of the riser with the other hand, and lift it straight up
and out of the server node [2].
8.
Place the PCIe riser and any cards attached to it on an antistatic mat.
Install PCIe Riser in Server Nodes
Note - Information in this appendix does NOT apply to Oracle Database Appliance X3-
2, Oracle Database Appliance X4-2, Oracle Database Appliance X5-2 or Oracle Database
Appliance X6 series. Refer to the preceding chapters in this document for information on
servicing those systems.
This section describes installing a PCIe Riser in Oracle Database Appliance Version 1.
1.
Before installing the PCIe riser, ensure that the latch adjacent to the location
where PCIe riser is to be installed is in the open (down) position [2].
