Install Power Distribution Board
AppendixA • Servicing the Oracle Database Appliance Version 1 175
1.

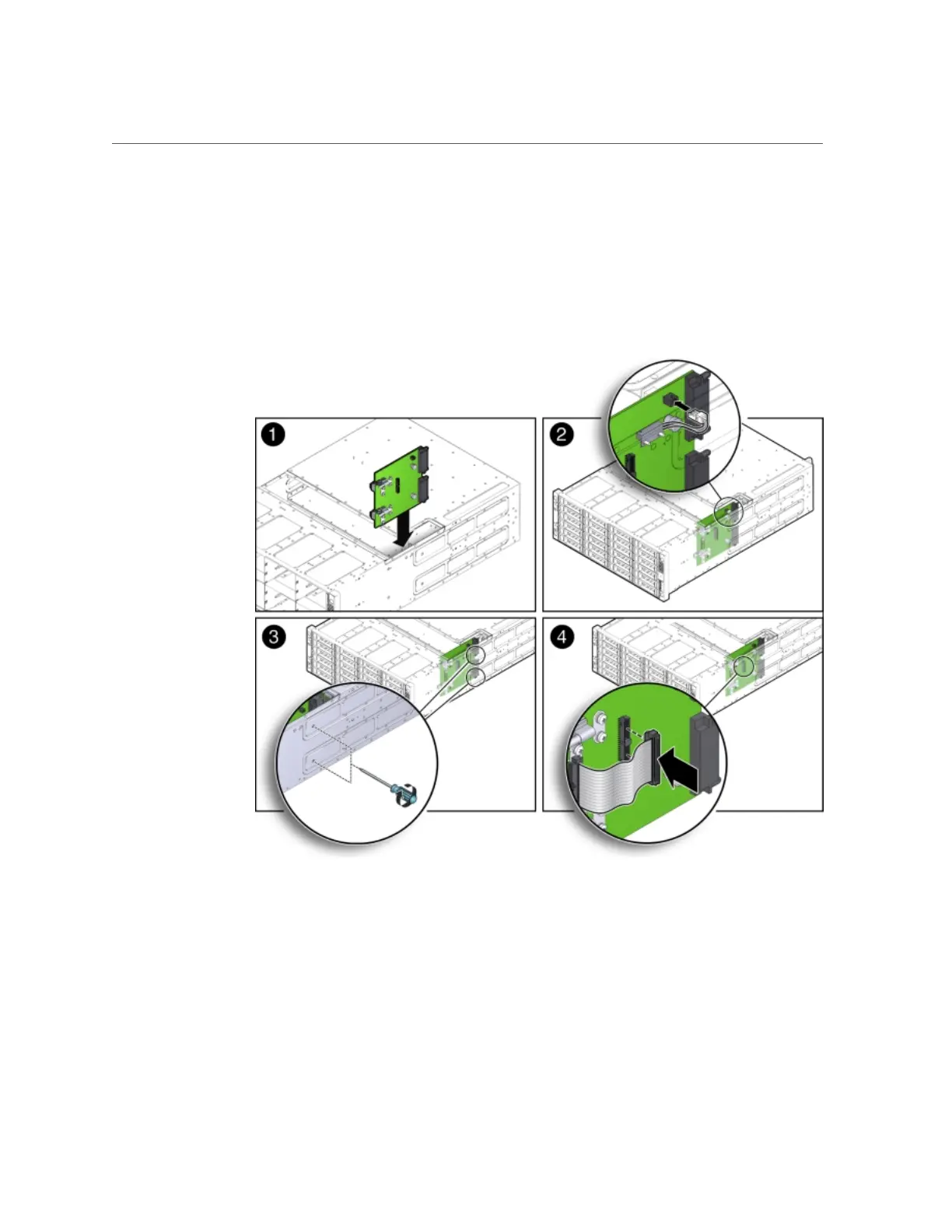

Install the power distribution board into the system chassis.
a.
Lower the power distribution board partially into the system [1].
b.
Reconnect the chassis interlock switch cable [2].
c.
Align the power distribution board with the two power connectors on the
disk midplane module and slide the power distribution board forward until
the connectors seat.
d.
To secure the power distribution board to the system, use the holes in the
system side wall to access and tighten the two Phillips screws [3].
e.
Reconnect the power distribution board ribbon cable [4].
