Install PCIe Card Cables for Secondary HBA PCIe Card
196 Oracle Database Appliance Service Manual • June 2017
b.

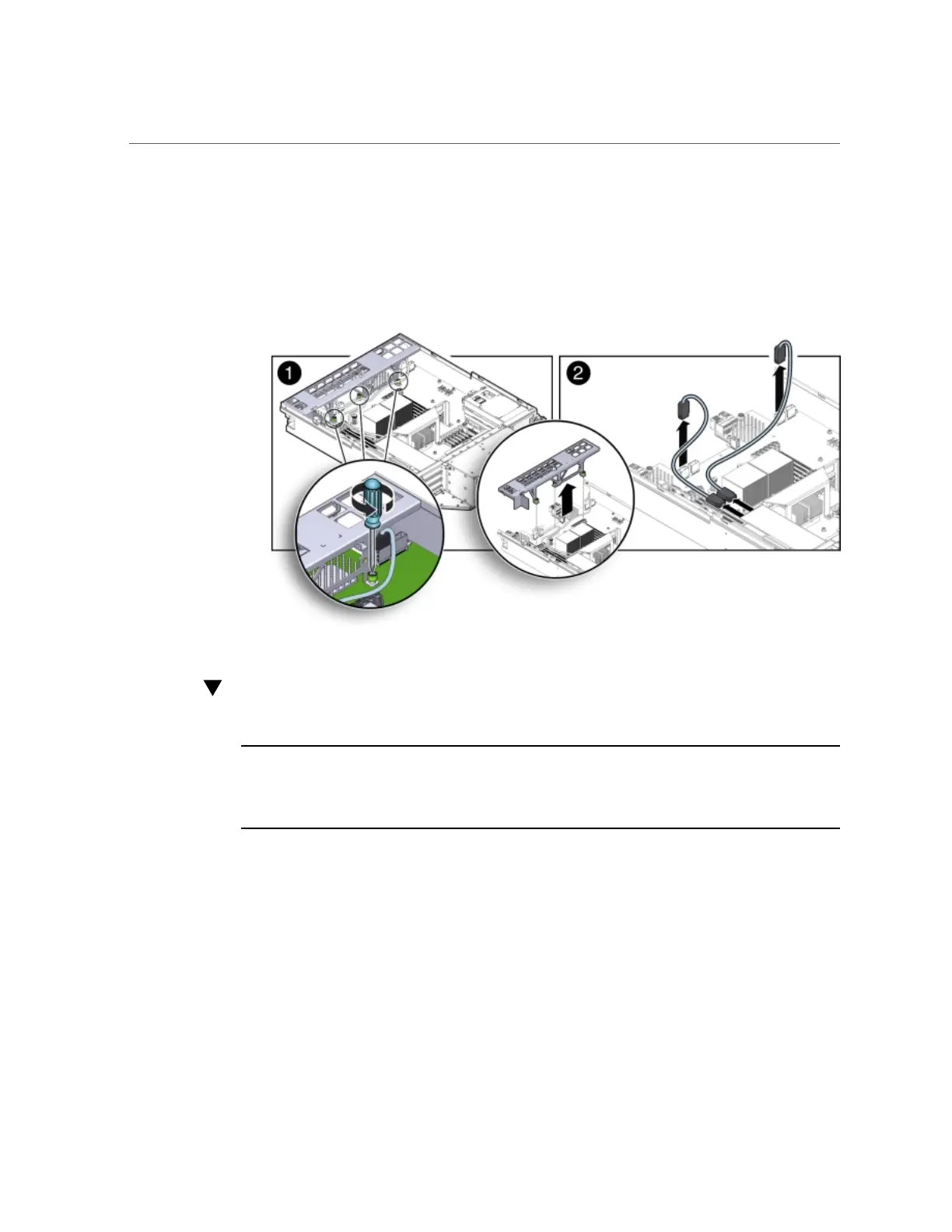

Disconnect the two secondary HBA PCIe card cables and remove the cables
[2].
To remove each cable connector, push the connector inward, press down on the connector
to release it, and pull the connector out.
Install PCIe Card Cables for Secondary HBA PCIe Card
Note - Information in this appendix does NOT apply to Oracle Database Appliance X3-
2, Oracle Database Appliance X4-2, Oracle Database Appliance X5-2 or Oracle Database
Appliance X6 series. Refer to the preceding chapters in this document for information on
servicing those systems.
This section describes installing secondary HBA PCIe card cables in Oracle Database
Appliance Version 1.
1.
Reconnect the PCIe card cables.
a.
Reconnect the two PCIe card cables between to the secondary PCIe card
and the connectors on the motherboard [2].
The Secondary HBA PCIe Card sits in the top slot on the PCIe riser (PCIe slot 2)
