Oracle Database Appliance X5-2 Status Indicators
Chapter1 • Overview of System Status Indicators and LEDs 27
Callout Indicator/LED: Color State Meaning
4 Power button Press to apply full power. Press again to turn main power off, but
leave standby power on the Oracle ILOM.
5 Top fan: amber Indicates that one (or more) of the internal fan modules has failed.
■ Off – Indicates steady state; no service is required.
■ On – Indicates service required; service the failed fan module.
6 Rear PS: amber Indicates that one (or more) of the power supplies has failed.
■ Off – Indicates steady state; no service is required.
■ On – Indicates service required; service the failed power supply.
7 Over temperature warning:
amber
■ Off – Normal operation; no service is required.
■ On – The system is experiencing an over temperature warning
condition.
Note - This is a warning indication, not a fatal over temperature.
Failure to correct this condition might result in the system
overheating and shutting down unexpectedly.
8 Service processor (SP): green ■ Off – The service processor (SP) is not running.
■ On – The SP is fully operational.
■ Slow blink – SP is booting.
9 Drive OK: green ■ Off – Power is off or the installed drive is not recognized by the
system.
■ On – The drive is engaged and is receiving power.
■ Random blink – There is disk activity. The indicator blinks on
and off to indicate activity.
10 Drive Service Required: amber ■ Off – The storage drive is operating normally.
■ On – The system has detected a fault with the storage drive.
11 Drive Ready-to-Remove: blue ■ Off – The storage drive has not been prepared for removal.
■ On – The storage drive can be removed safely during a hot-plug
operation.

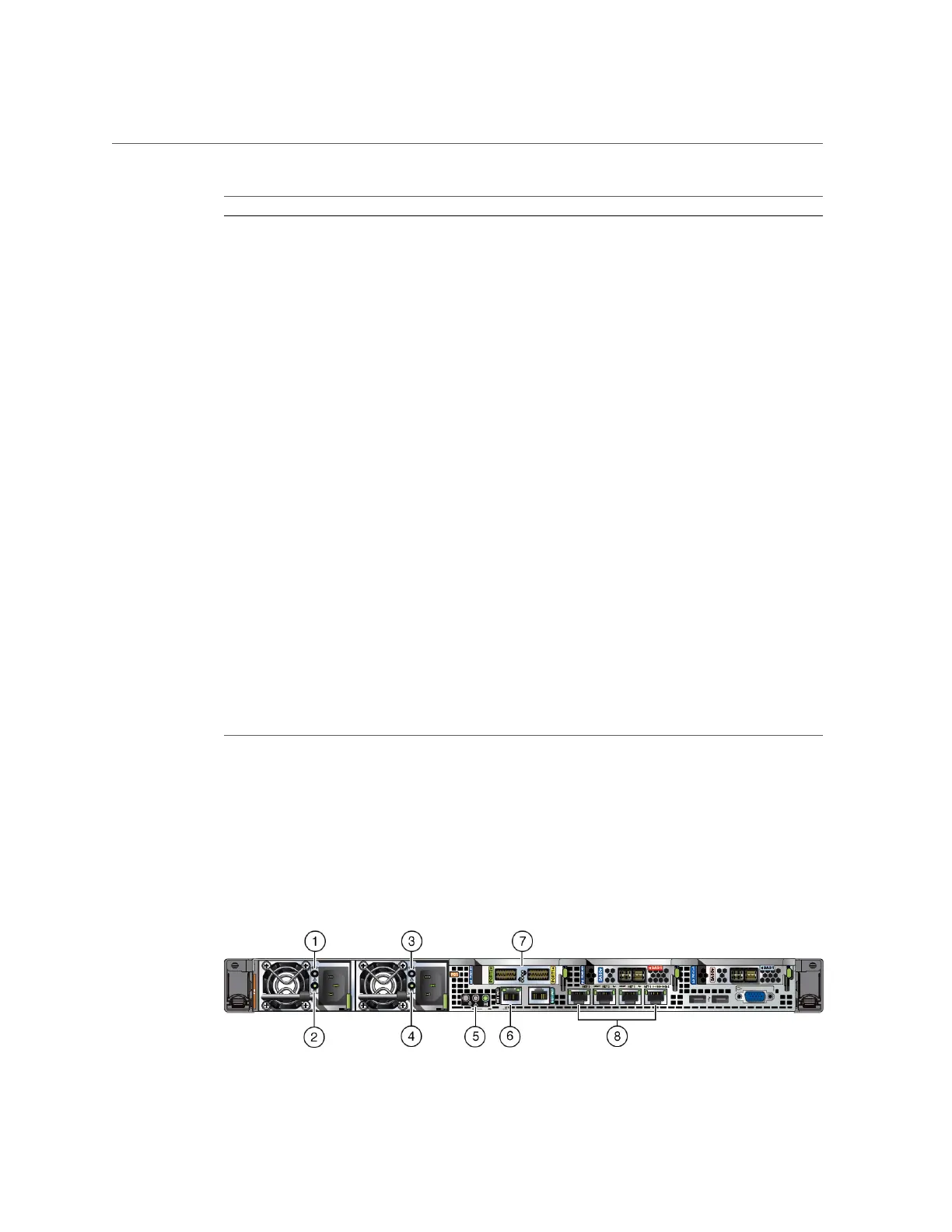

Server Node Back Panel Status Indicators
The Oracle Database Appliance X5-2 server node back panel includes indicators for the system,
power supplies and network ports.
