Oracle Database Appliance X3-2/X4-2 Status Indicators
36 Oracle Database Appliance Service Manual • June 2017
Callout Indicator/LED: Color State Meaning
1 OK: green ■ On – The storage shelf is powered on and operating normally.
■ Off – The storage shelf is unplugged or turned off.
2 Service Required: amber ■ Off – Normal operation.
■ Steady on – A fault is present in the storage shelf.
3 Locate: white ■ Off – Normal operation.
■ Fast blink – This LED blinks to help locate the system. Operators
can turn this indicator on and off remotely using Oracle ILOM.
■ Pressing this button toggles the fast blink on or off.
4 Status Code Display Not used for this product.
5 Drive Service Required: amber ■ Off – Normal operation.
■ Steady on – A fault is present in the disk drive.
6 Power/Activity: green ■ On – The drive is installed and recognized by the system but
there is no drive activity.
■ Blink – The LED blinks randomly in response to data being
written to or read from the drive.
■ Off – The drive is powered off or the installed drive is not
recognized by the system.
Storage Shelf Back Panel Status Indicators

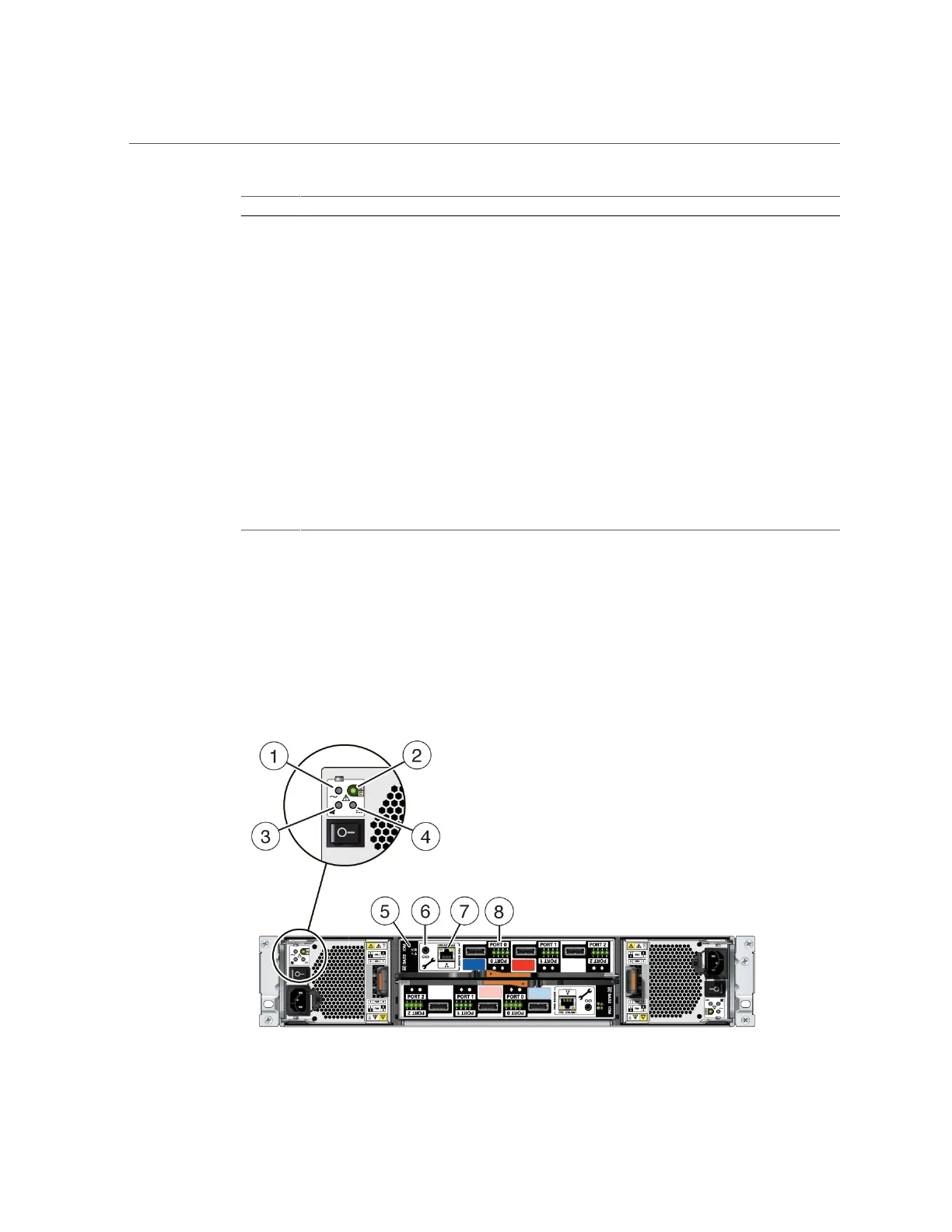

The following figure shows the controls and indicators on the Oracle Database Appliance X3-2/
X4-2 storage shelf (DE2-24P) back panel and drives.
