Oracle Database Appliance X6-2-HA

Replace the Internal SAS HBA Cables
Chapter5 • Servicing FRUs 89
3.

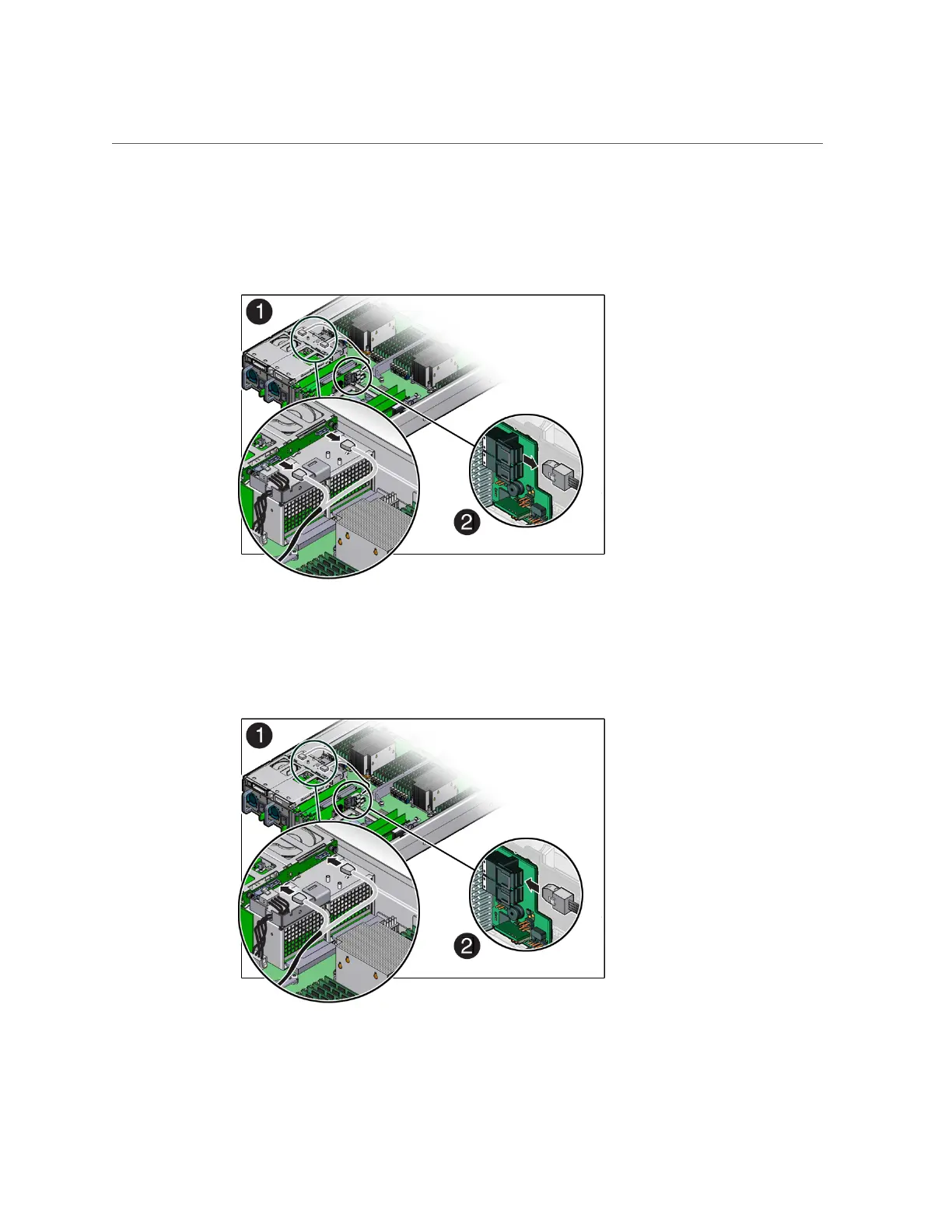

Disconnect the SAS cable from the rear disk drive backplane [1] and from the
card [2].
4.
Install the replacement SAS cable to the rear disk drive backplane [1] and the
SAS card [2].
5.
Lower the air baffle to the installed position.
