2. Lower the rack stabilization feet if you have not already done so.
3. Pull the slide rails (mounted in the slide-rail assembly) toward you until the slide rails stop
(approximately 12 inches, (30 cm) out of the rack).
4. Raise the chassis so that the back ends of the mounting brackets are aligned with the
slide rail and insert the chassis into the slide rails, pushing the chassis slowly, until the
mounting brackets meet the slide rail stops (~12 in or 30 cm). You will hear an audible
click.

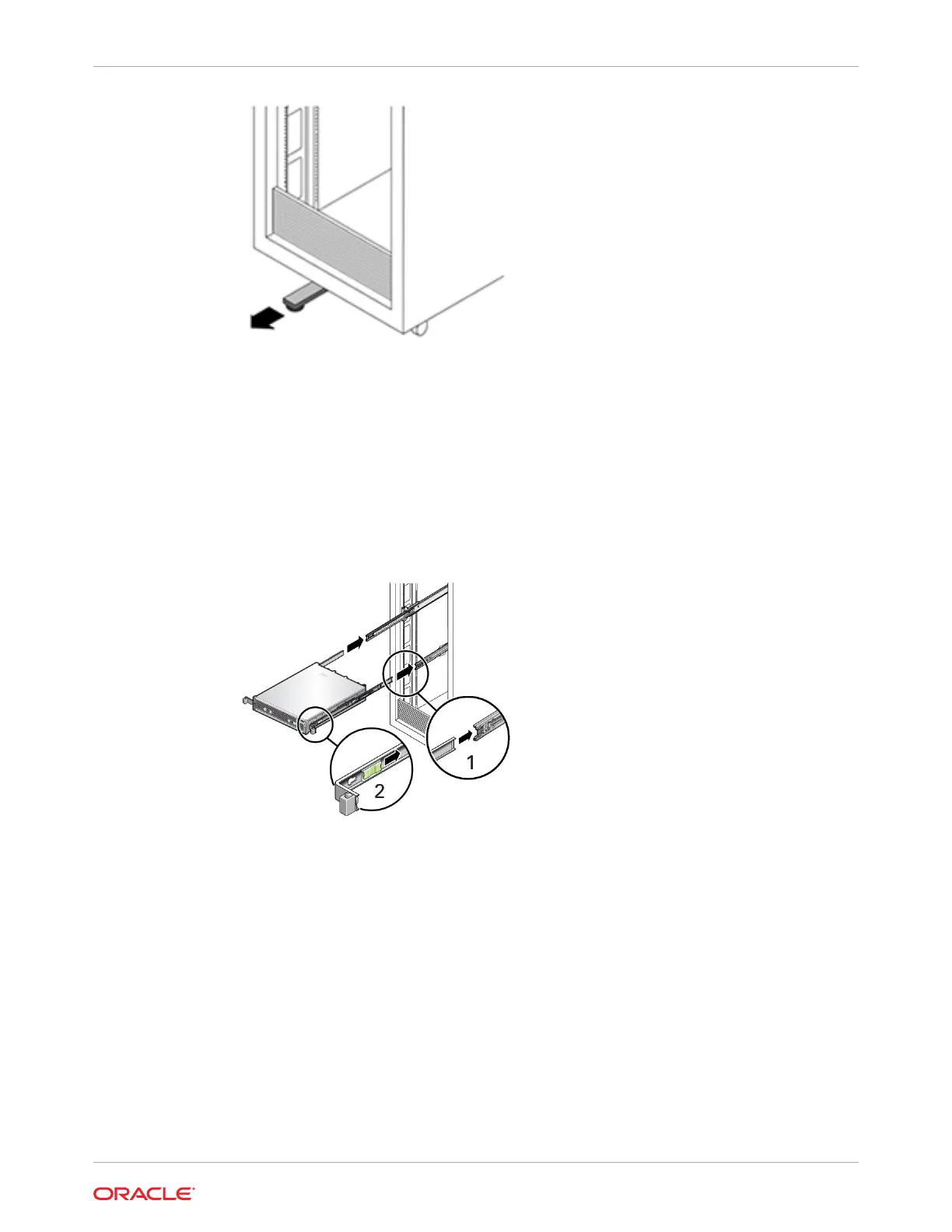

5. The following graphic illustrates the chassis insertion and slide rail locks usage.
Installing an Oracle ZFS Storage ZS3-2 Cable Management
Arm
Use the following procedure to install the optional cable management arm (CMA) on an
Oracle ZFS Storage ZS3-2 controller.
Before You Begin
Unpack the CMA and identify its components.
To prepare for installing the optional CMA, follow these guidelines:
• Route cluster cables, long-term host cables (including InfiniBand, Fibre Channel, and
Ethernet Cables) and up to 12 disk shelf SAS cables through the CMA.
Chapter 9
Installing an Oracle ZFS Storage ZS3-2 Cable Management Arm
9-5
