1 RFID tag 2 System status LED: Locator
(white)
3 System status LED: Service
Action Required (amber)
4 System status LED: Power/OK
(green)
5 Power button 6 Fan service action required
(amber)
7 Power Supply (PS) service
action required (amber)
8 Over-temperature warning
(amber)
9 Service Processor (SP) OK
(green)
10 Do Not Service indicator 11 System disk 0 12 System disk 1
13 Filler panel 14 Filler panel 15 Filler panel
16 Filler panel 17 Filler panel 18 Filler panel
19 Filler panel 20 Filler panel 21 Filler panel
22 Filler panel
Oracle ZFS Storage ZS7-2 Rear Panel Components

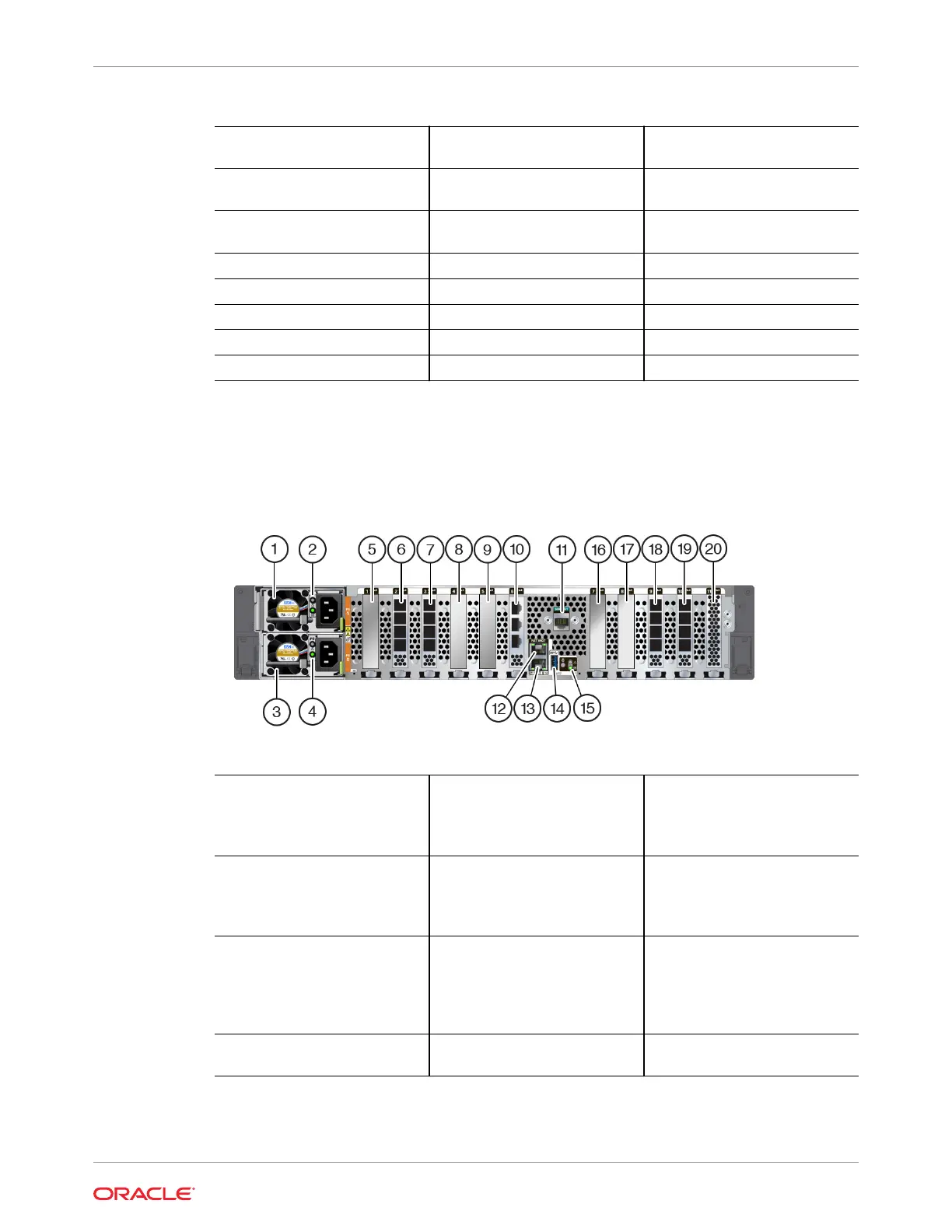

The Oracle ZFS Storage ZS7-2 controller PCIe slots and rear panel components are shown
in the following figure.
1 Power Supply Unit (PSU) 1
2 PSU 1 status indicators (top to
bottom):
• Attention (amber)
• Power/OK (green)
3 PSU 0
4 PSU 0 status indicators (top to
bottom):
• Attention (amber)
• Power/OK (green)
5 Fifth PCIe option (slot 1) 6 External SAS-3 HBA (slot 2)
7 Slot 3:
• High-end model: External
SAS-3 HBA
• Mid-range model: Filler
panel; slot not available
8 First PCIe option (slot 4) 9 Third PCIe option (slot 5)
10 Cluster interface card (slot 6) 11 Serial management (SER
MGT) RJ-45 serial port
12 Service Processor (SP) NET
MGT port
Chapter 2
Overview of the Oracle ZFS Storage ZS7-2 Controller
2-33
