1 Power Supply Unit (PSU) 1 2 Second PCle option (slot 1) 3 Third PCle option (slot 3)
4 Network Management (NET
MGT) 10/100/1000 BASE-T
Ethernet port
5 First PCle option (slot 5) 6 Second 4x4 SAS HBA, or
fourth PCle option (slot 6)
7 Network (NET) 10 GbE ports:
NET 0, NET 1, NET 2, NET 3
8 SER MGT port 9 Two USB 3.0 ports
10 Cluster interface card (slot 4) 11 First 4x4 SAS HBA (slot 2) 12 Power Supply Unit (PSU) 0
Cluster Interface Card Compatibility - The Oracle ZFS Storage ZS5-2 controller contains a
Version 3 cluster interface card, which is incompatible with Version 2.
For information about how to connect cables to form a cluster, see Connecting Cluster
Cables.
Cable Management Arm

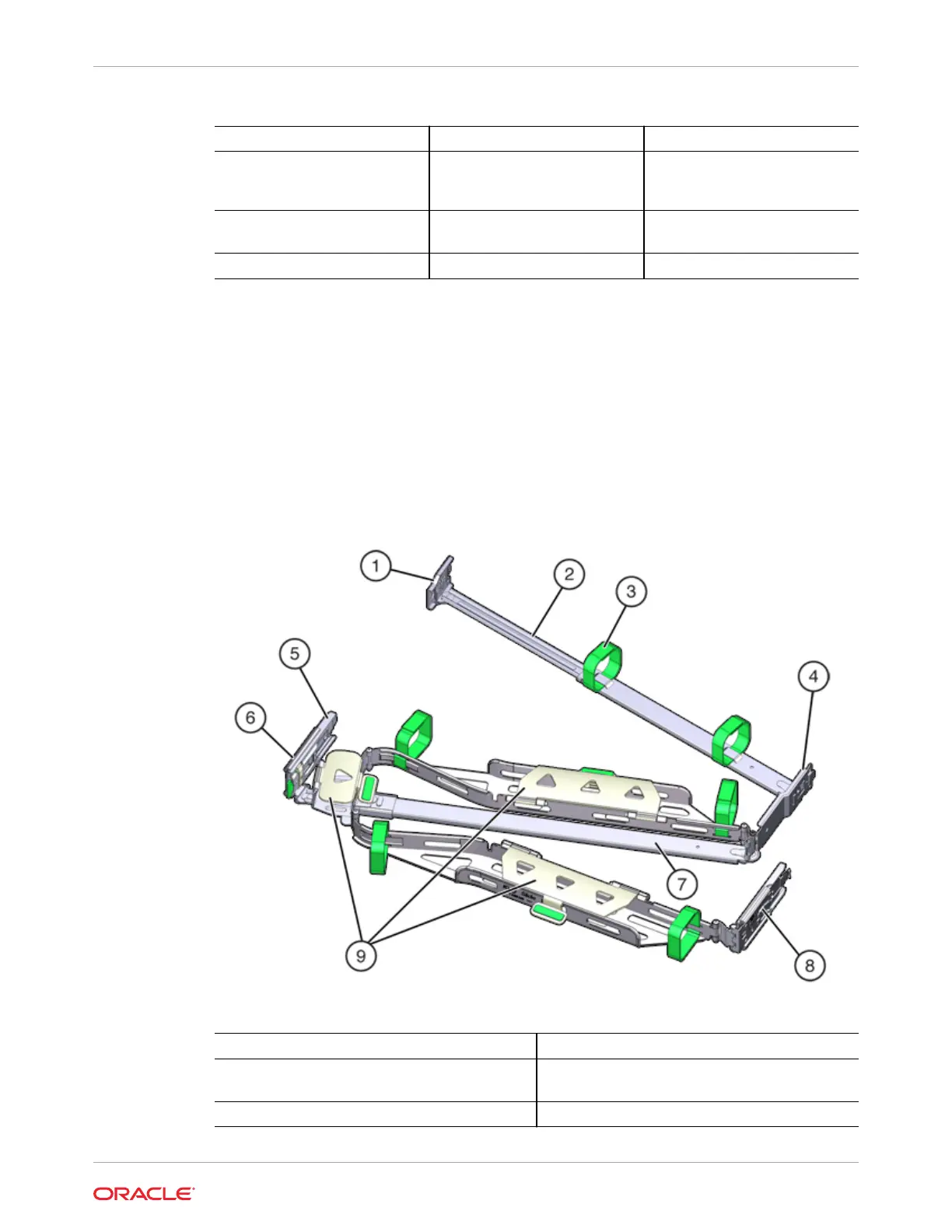

The following figure identifies the components of the cable management arm (CMA). For
installation instructions, see Installing an Oracle ZFS Storage ZS5-2 Cable Management
Arm.
1 Connector A
6 Connector D
2 Front slide bar 7 Slide-rail latching bracket (used with connector
D)
3 Velcro straps (6) 8 Rear slide bar
Chapter 2
Overview of the Oracle ZFS Storage ZS5-2 Controller
2-39
