CPU Memory System Disks PCIe Slots HBA
2x18-core, 2.3
GHz
384 GB
768 GB
2x2.5'' SAS-3 Two dedicated;
four available
4-port (4x4)
SAS-3 12 Gb/s
external
4-port (4x4)
SAS-2 6 Gb/s
external
Refer to https://oracle.com/zfsstorage for the most recent component specification.

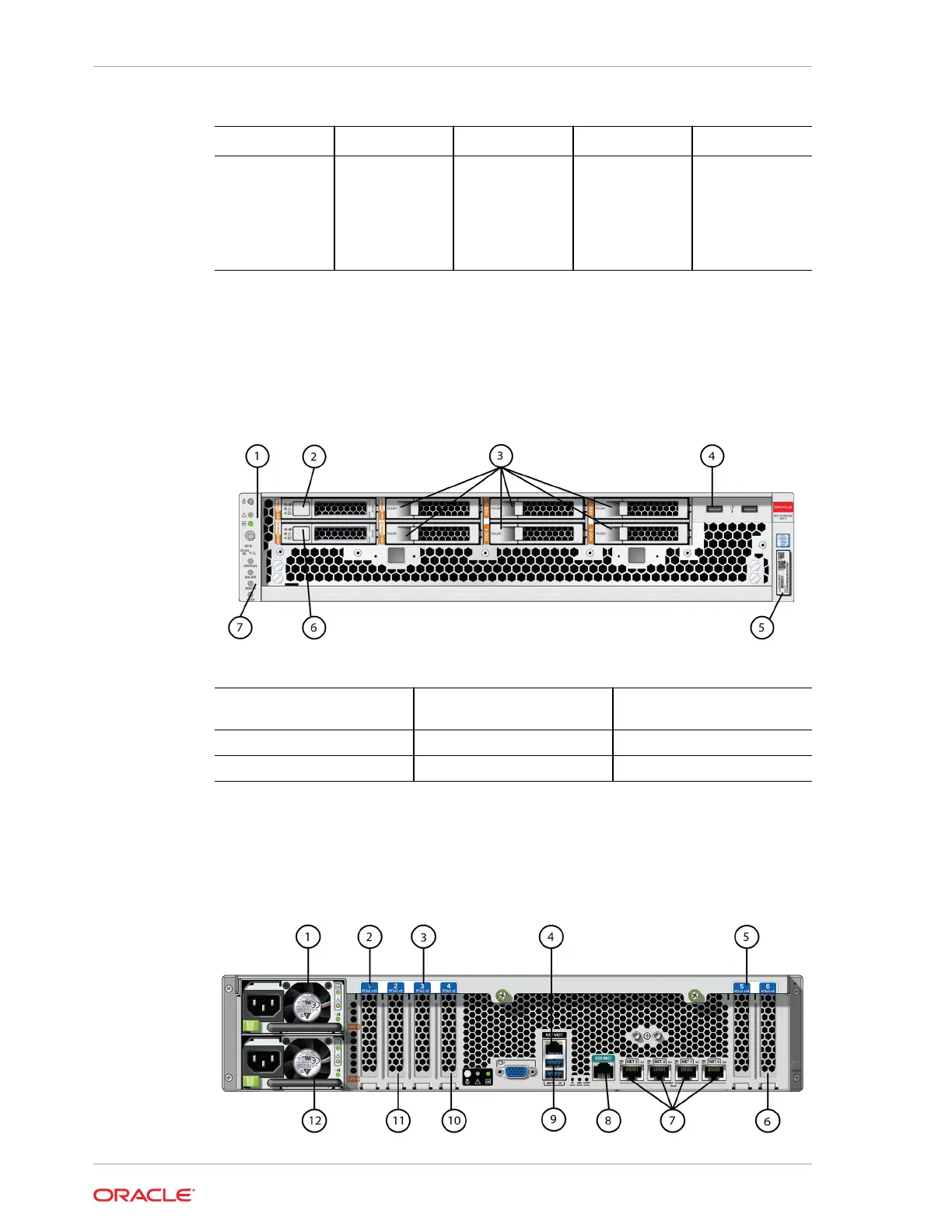

Oracle ZFS Storage ZS5-2 Front Panel Components
The Oracle ZFS Storage ZS5-2 controller drive slots and front panel components are
shown in the following figure.
1 LEDs: Locator, Service,
Power
2 System disk 1 3 Permanent HDD filler panels
4 Two USB 2.0 ports 5 RFID tag 6 System disk 0
7 Alarm indicators (not used)
Oracle ZFS Storage ZS5-2 Rear Panel Components
The Oracle ZFS Storage ZS5-2 controller PCIe slots and rear panel components are
shown in the following figure.
Chapter 2
Overview of the Oracle ZFS Storage ZS5-2 Controller
2-38
