CPU Memory System Disks PCIe Slots HBA
2x24-core, 2.1
GHz
512 GB or 1.0 TB 2x3.5'' NVMe Three dedicated;
five available; two
unavailable
(permanent filler
panels)
4-port (4x4) SAS-3
12 Gb/s external
The most recent component specification is located at https://www.oracle.com/storage/nas/
index.html .

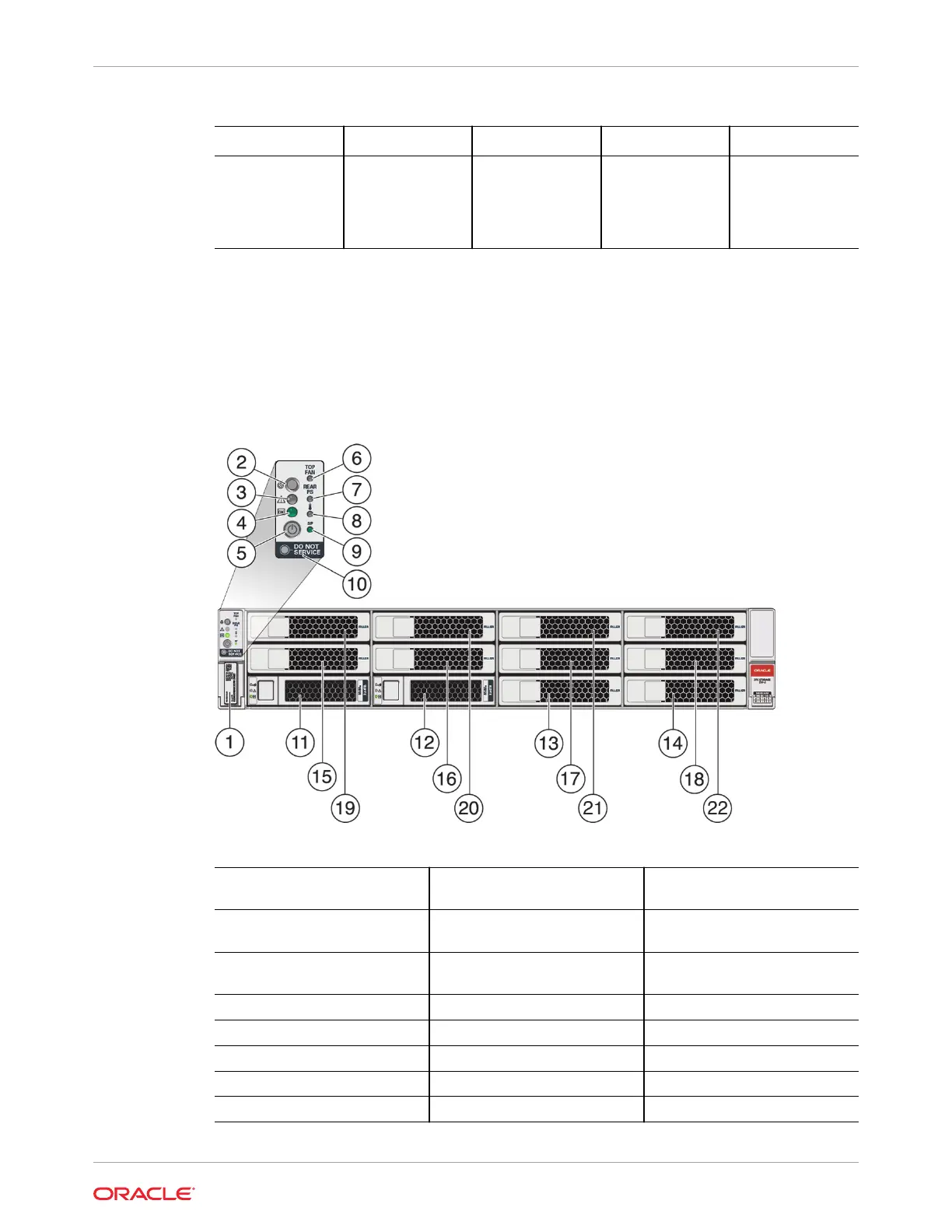

Oracle ZFS Storage ZS9-2 Front Panel Components
The Oracle ZFS Storage ZS9-2 controller drive slots and front panel components are shown
in the following figure.
1 RFID tag
2 System status LED: Locator
(white)
3 System status LED: Service
Action Required (amber)
4 System status LED: Power/OK
(green)
5 Power button 6 Fan service action required
(amber)
7 Power Supply (PS) service
action required (amber)
8 Over-temperature warning
(amber)
9 Service Processor (SP) OK
(green)
10 Do Not Service indicator 11 System disk 0 12 System disk 1
13 Filler panel 14 Filler panel 15 Filler panel
16 Filler panel 17 Filler panel 18 Filler panel
19 Filler panel 20 Filler panel 21 Filler panel
22 Filler panel
Chapter 2
Overview of the Oracle ZFS Storage ZS9-2 Controller
2-29
