• HBA Ports - The 4x4 SAS HBA, installed in PCIe slot 2 of the ZS3-2, provides
connectivity to external disk shelves. The HBA logical ports are numbered 0-3, left
to right, as shown in the following illustration:
Optional Cable Management Arm

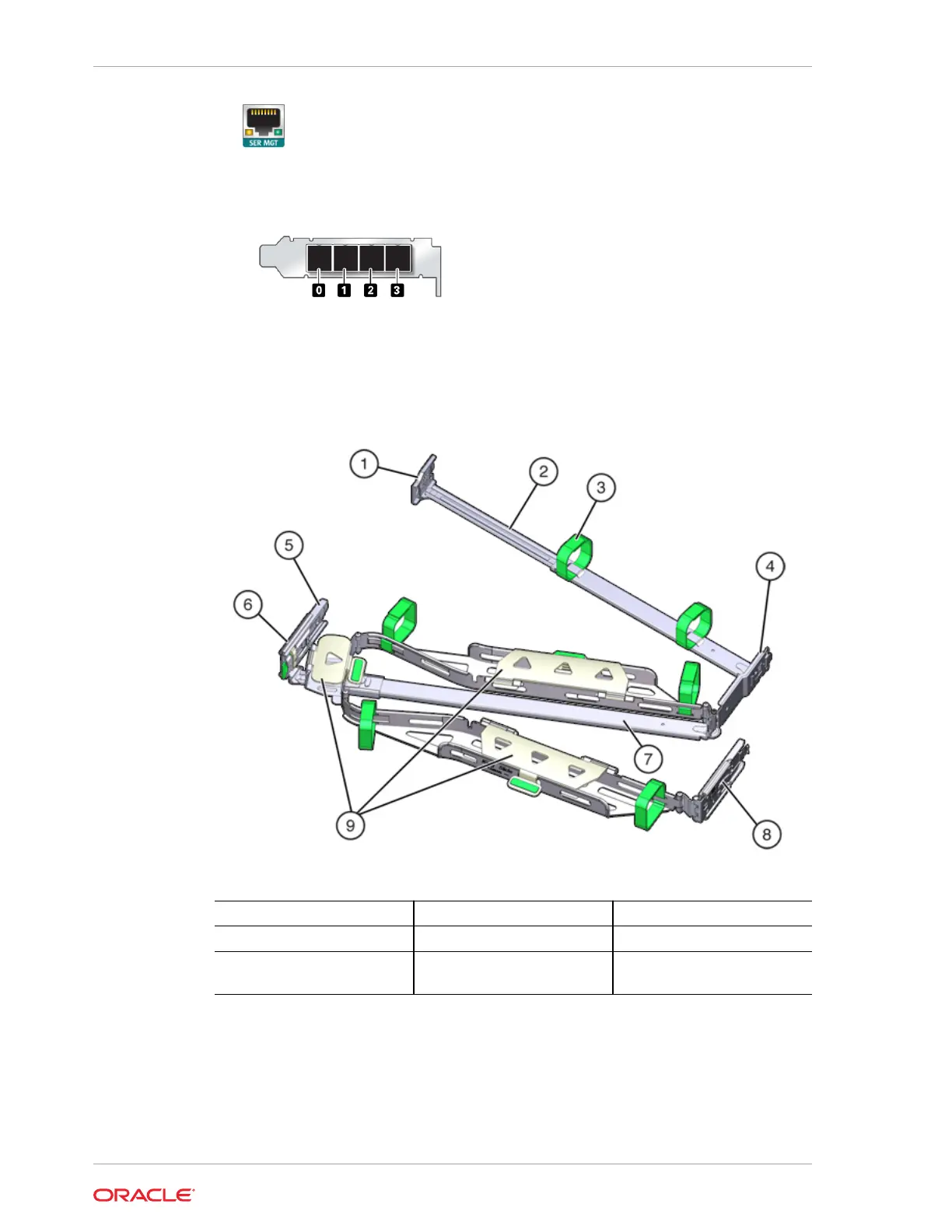

The following figure identifies the components of the second-generation cable
management arm (CMA). See the CMA installation instructions.
1 Connector A
2 Front slide bar 3 Velcro straps (6)
4 Connector B 5 Connector C 6 Connector D
7 Slide-rail latching bracket
(used with connector D)
8 Rear slide bar 9 Cable covers
Overview of the Sun ZFS Storage 7420 Controller
This section provides an overview of the Sun ZFS Storage 7420 controller. For
installation instructions, refer to Installing a Sun ZFS Storage 7x20 Controller. For
service instructions, refer to Servicing the 7x20 Controller in Oracle ZFS Storage
Appliance Customer Service Manual, Release OS8.8.x.
Chapter 2
Overview of the Sun ZFS Storage 7420 Controller
2-50
