Oracle ZFS Storage ZS3-4 and Sun ZFS Storage 7420 Cluster Cabling
Three Category 5 Ethernet cables are provided. Each cable is 1 meter in length. Connect the
cables in the same way as described for Oracle ZFS Storage ZS5-x controllers.
The cluster card for Oracle ZFS Storage ZS3-4 and Sun ZFS Storage 7420 is installed in the
cluster slot, as described in the hardware overview for each controller in Oracle ZFS Storage
Appliance Customer Service Manual, Release OS8.8.x.
Oracle ZFS Storage ZS3-2 Cluster Cabling
Three Category 5 Ethernet cables are provided. Each cable is 1 meter in length. Connect the
cables in the same way as described for Oracle ZFS Storage ZS5-x controllers. For details
about the cluster ports, see Controller Cluster I/O Ports.

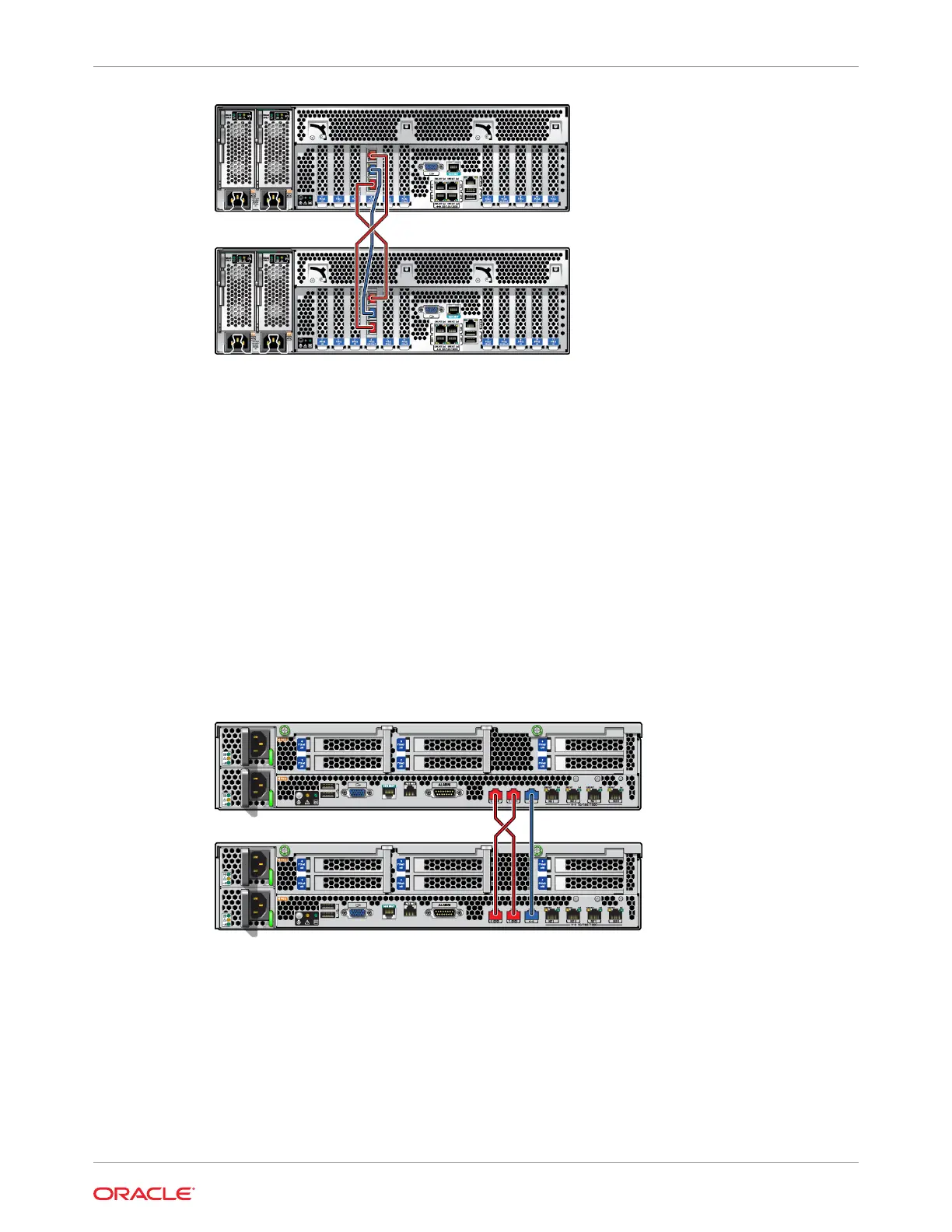

The following figure shows cluster cabling between two Oracle ZFS Storage ZS3-2
controllers.
Controller Cluster I/O Ports
Controller cluster interface cards provide redundant links through I/O ports that enable two
controllers to communicate with each other. For the location of these cluster interface cards,
see the hardware overview for the appropriate controller.
Oracle ZFS Storage ZS9-2 controllers employ Ethernet-based clustering using two Ethernet
ports in the Oracle Quad Port 10GBASE-T Ethernet Adapter. All other controller cluster
Chapter 11
Controller Cluster I/O Ports
11-5
