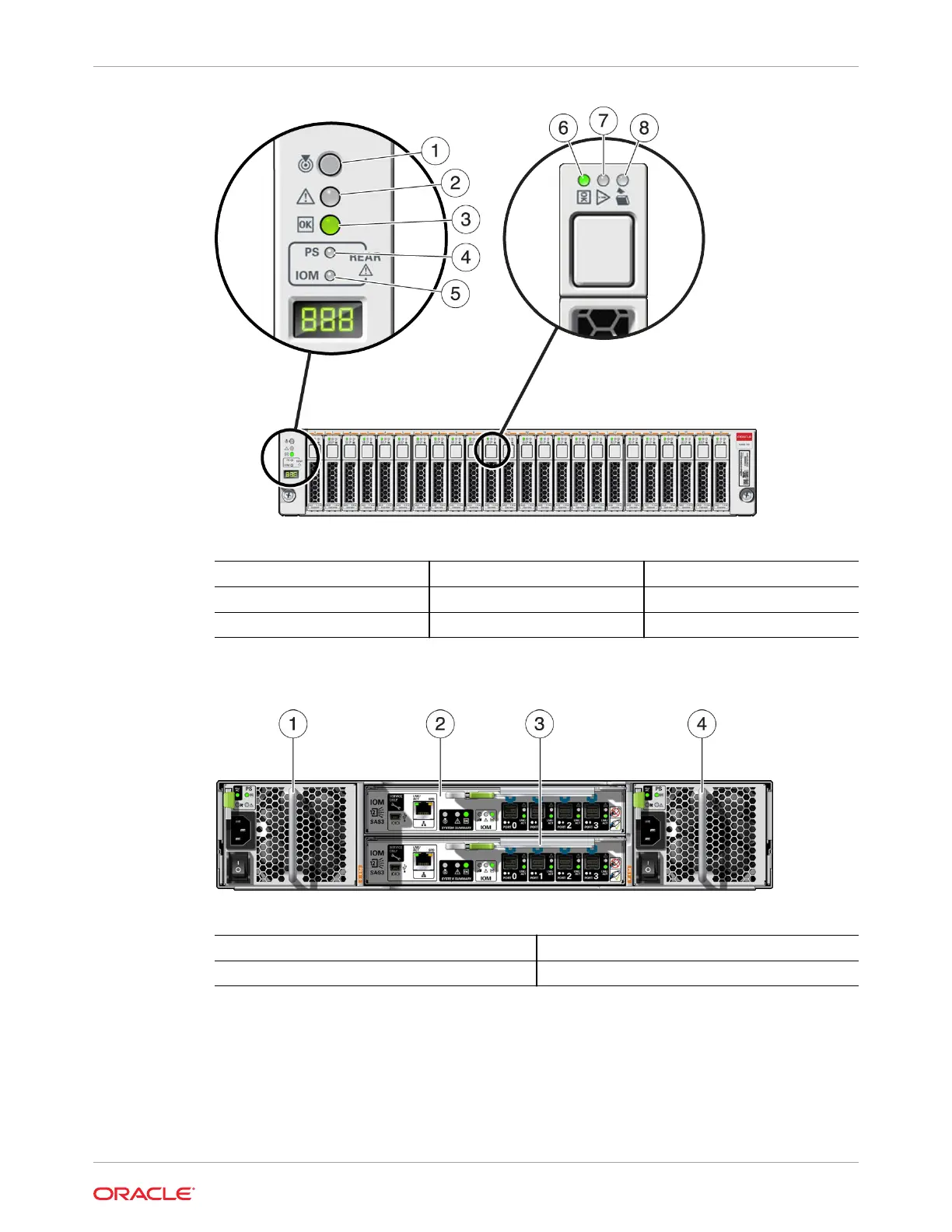

1 Locate indicator 2 Service required indicator 3 OK indicator
4 Power supply fault indicator 5 SAS I/O Module fault indicator 6 Power/Activity indicator
7 Drive service required indicator 8 Ready-to-remove indicator
Oracle Storage Drive Enclosure DE3-24P Rear Panel
1
Power supply with fan module 0 2 I/O Module 1
3 I/O Module 0 4 Power supply with fan module 1
Oracle Storage Drive Enclosure DE3-24C Disk Shelf
Oracle Storage Drive Enclosure DE3-24C is a 4U chassis that supports 24 3.5" SAS-3 drives.
The high-performance HDDs provide reliable storage. The SSDs provide accelerated write
operations, and for some controllers, read-optimized cache operations. This disk shelf
features dual, redundant I/O Modules (IOMs), and dual power supply with fan modules.
Chapter 2
Overview of Disk Shelves
2-17
