CPU Memory System Disks PCIe Slots HBA
2x24-core, 2.1
GHz
1.5 TB 2x3.5'' SAS-3 Six dedicated;
five available
4-port (4x4)
SAS-3 12 Gb/s
external
The Oracle ZFS Storage ZS7-2 mid-range model incorporates one or two controllers
and one to sixteen disk shelves. Each controller has 11 PCle Gen3 slots in the rear,
and 12 3.5" disk slots in the front, two of which are occupied by system disks. Read
cache devices are installed in disk shelves; therefore, the remaining ten front disk slots
have permanent filler panels. The following table describes the configuration options.
CPU Memory System Disks PCIe Slots HBA
2x18-core, 2.3
GHz
512 GB or 1024
GB
2x3.5'' SAS-3 Four dedicated;
five available; two
unavailable
(permanent filler
panels)
4-port (4x4)
SAS-3 12 Gb/s
external
The most recent component specification is located at https://www.oracle.com/
storage/nas/index.html .
Oracle ZFS Storage ZS7-2 Front Panel Components

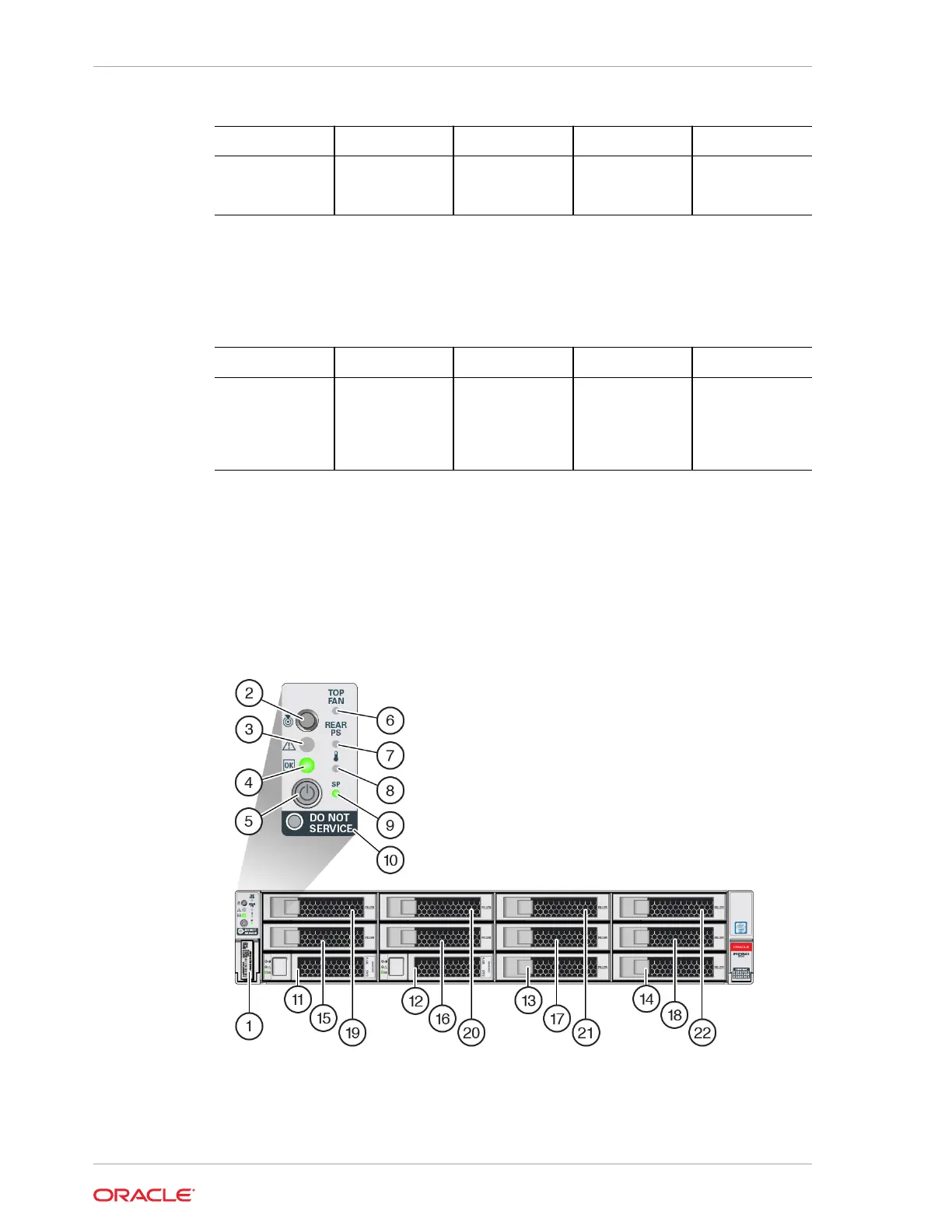

The Oracle ZFS Storage ZS7-2 controller drive slots and front panel components are
shown in the following figure.
Chapter 2
Overview of the Oracle ZFS Storage ZS7-2 Controller
2-32
