Oracle ZFS Storage ZS5-4 Acoustic Noise Emissions
In compliance with the requirements defined in ISO 9296, the workplace-dependent noise
level of this product is less than 75 dBA (bystander position, max. ambient).
Oracle ZFS Storage ZS5-4 Configuration Options
Oracle ZFS Storage ZS5-4 incorporates one or two controllers and one to forty-eight disk
shelves. Each controller has eleven PCle Gen3 slots. Each controller includes six 2.5'' disk
slots that accommodate two system disks. Read cache devices are installed in disk shelves;
therefore, the remaining four disk slots have permanent filler panels. The following table
describes the configuration options.
CPU Memory System Disks PCIe Slots HBA
4x18-core, 2.6
GHz
1536 GB 2x2.5'' SAS-3 Four dedicated;
seven available
4-port (4x4) SAS-3
12 Gb/s external
4-port (4x4) SAS-2
6 Gb/s external
The most recent component specification is located at https://www.oracle.com/storage/nas/
index.html .
Oracle ZFS Storage ZS5-4 Front Panel Components

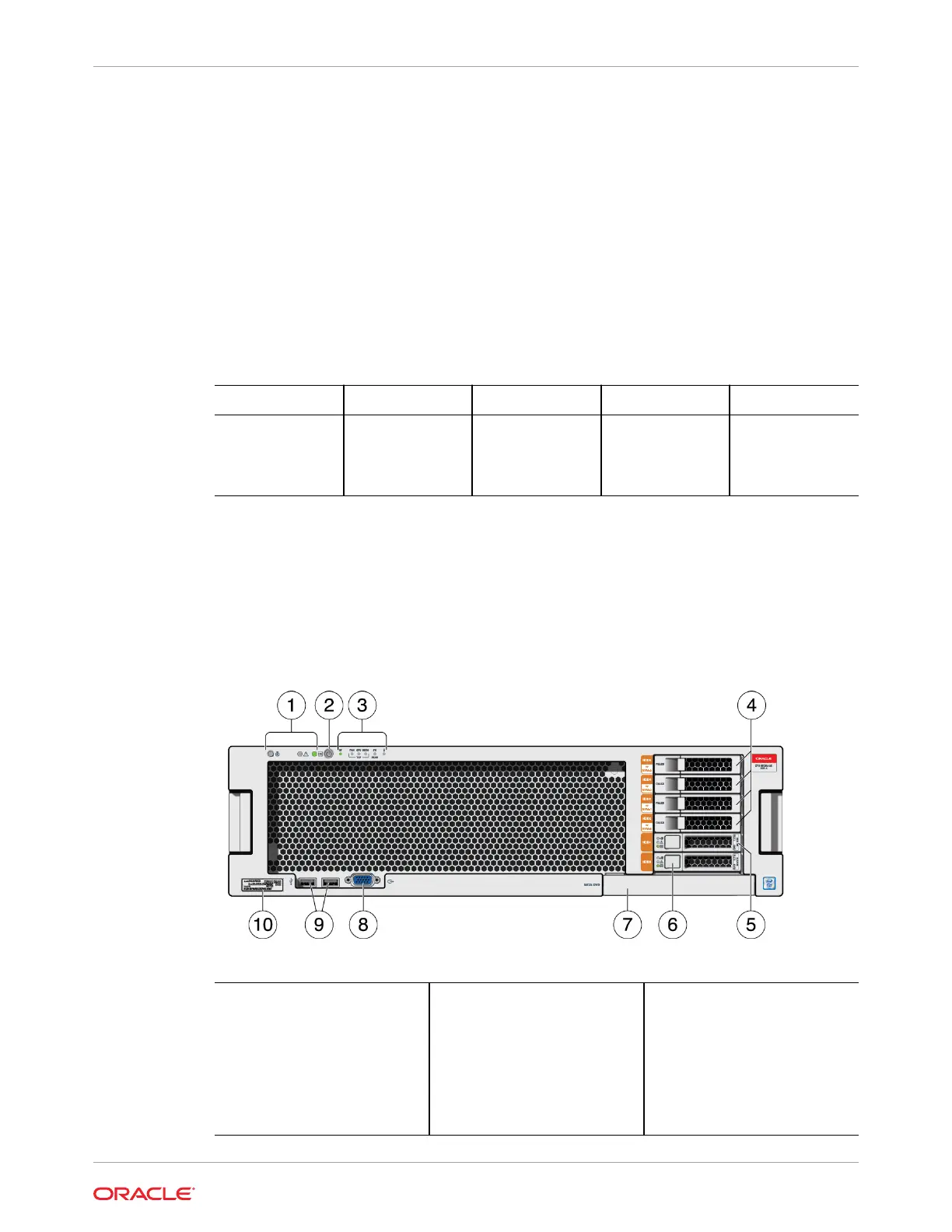

The Oracle ZFS Storage ZS5-4 controller drive slots and front panel components are shown
in the following figure.
1
LEDs (left to right)
• Locator
• Service action required
• Power/OK
2 Power button 3 Alert indicators (left to right)
• Service Processor (SP) OK/
Fault
• Fan/ CPU/ Memory service
action required
• Power Supply (PS) service
action required
• Over-temperature warning
Chapter 2
Overview of the Oracle ZFS Storage ZS5-4 Controller
2-35
