Oracle ZFS Storage ZS9-2 Rear Panel Components

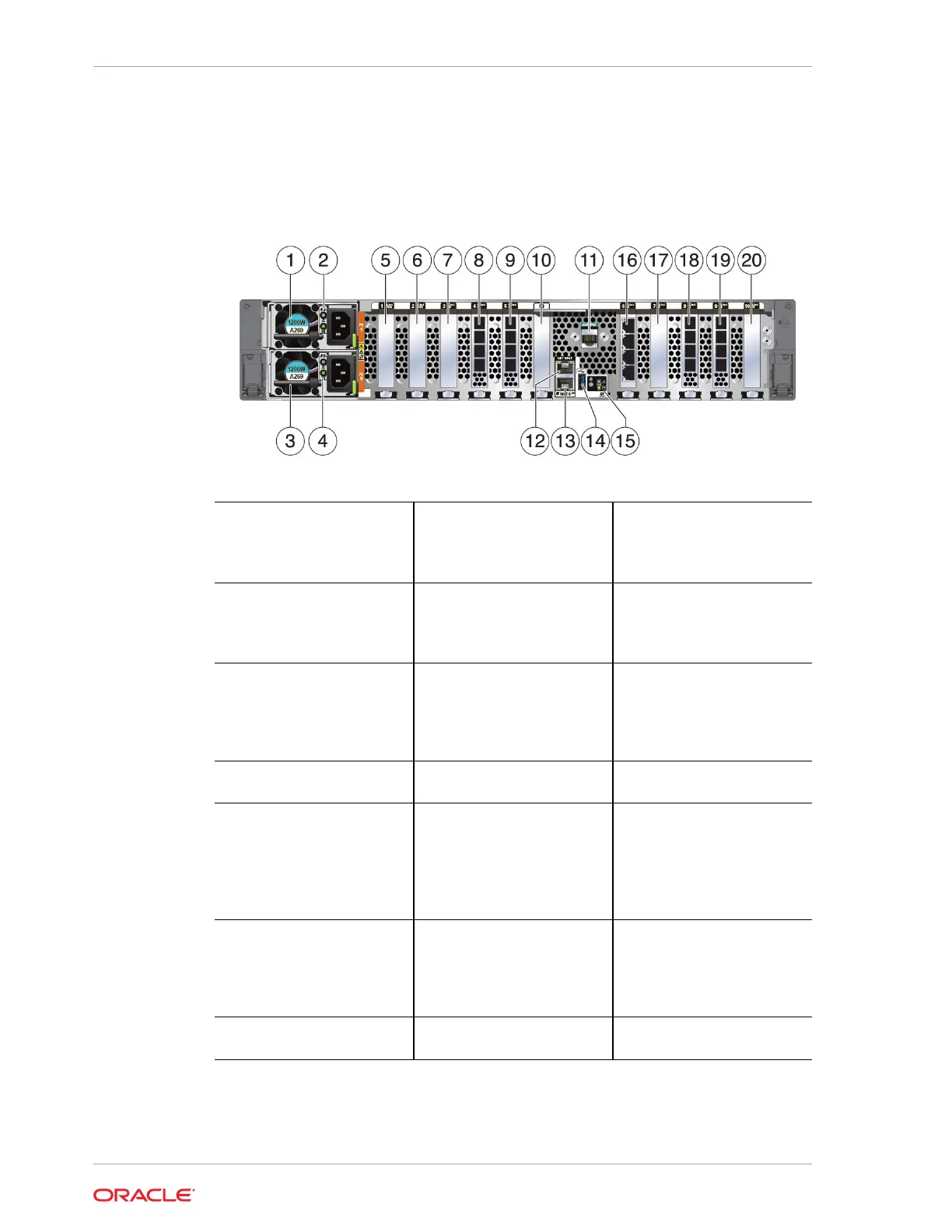

The Oracle ZFS Storage ZS9-2 controller PCIe slots and rear panel components are
shown in the following figure.
1 Power Supply Unit (PSU) 1 2 PSU 1 status indicators (top
to bottom):
• Attention (amber)
• Power/OK (green)
3 PSU 0
4 PSU 0 status indicators (top
to bottom):
• Attention (amber)
• Power/OK (green)
5 Second PCIe option (slot 1) 6 Third PCIe option (slot 2)
7 Fifth PCIe option (slot 3) 8 External SAS-3 HBA (slot 4) 9 Slot 5:
• High-end model: External
SAS-3 HBA
• Mid-range model: Filler
panel; slot not available
10 Not available 11 Serial management (SER
MGT) RJ-45 serial port
12 Service Processor (SP)
NET MGT port
13 Network (NET)
100/1000BASE-T RJ-45
Gigabit Ethernet (GbE) port:
NET 0
14 USB 3.0 port 15 System status LEDs:
• Locate (white) - left
• Attention (amber) - right,
top
• Power/OK (green) - right,
bottom
16 Cluster interface card (slot
6)
17 First PCIe option (slot 7) 18 Slot 8:
• High-end model: External
SAS-3 HBA
• Mid-range model: Filler
panel; slot not available
19 External SAS-3 HBA (slot
9)
20 Fourth PCIe option (slot
10)
For information about how to connect cables to form a cluster, see Connecting Cluster
Cables.
Chapter 2
Overview of the Oracle ZFS Storage ZS9-2 Controller
2-30
