Oracle Storage Drive Enclosure DE2-24C Disk Shelf
Oracle Storage Drive Enclosure DE2-24C is a 4U chassis that supports 24 3.5" SAS-2
drives. The high-capacity HDDs provide reliable storage. The SSDs provide
accelerated write operations, and for some controllers, read-optimized cache
operations. This disk shelf features dual, redundant I/O Modules (IOMs), and dual
power supply with fan modules.

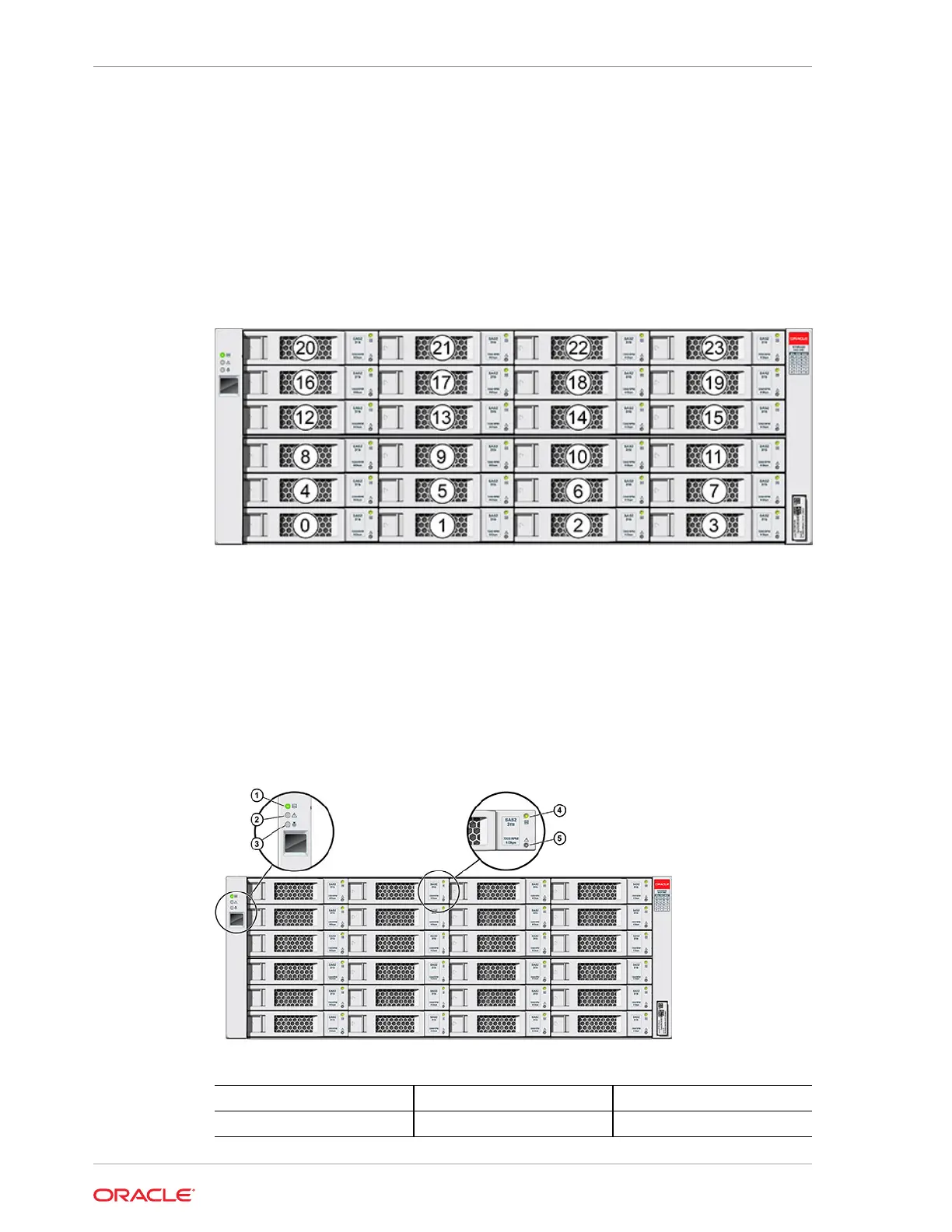

Oracle Storage Drive Enclosure DE2-24C Drive Locations (Front View)
Up to four write-optimized log SSDs are supported per disk shelf. Log devices should
be populated in order of slots 20, 21, 22, and 23.
Read-optimized cache SSDs can also be installed in the DE2-24C disk shelf, for some
controllers. For slot configuration details and minimum software requirements, see
Disk Shelf Configurations in Oracle ZFS Storage Appliance Customer Service Manual,
Release OS8.8.x.
Oracle Storage Drive Enclosure DE2-24C Status Indicators (Front View)
1
System power indicator 2 Module fault indicator 3 Locate indicator
4 Power/Activity indicator 5 Drive fault indicator
Chapter 2
Overview of Disk Shelves
2-22
