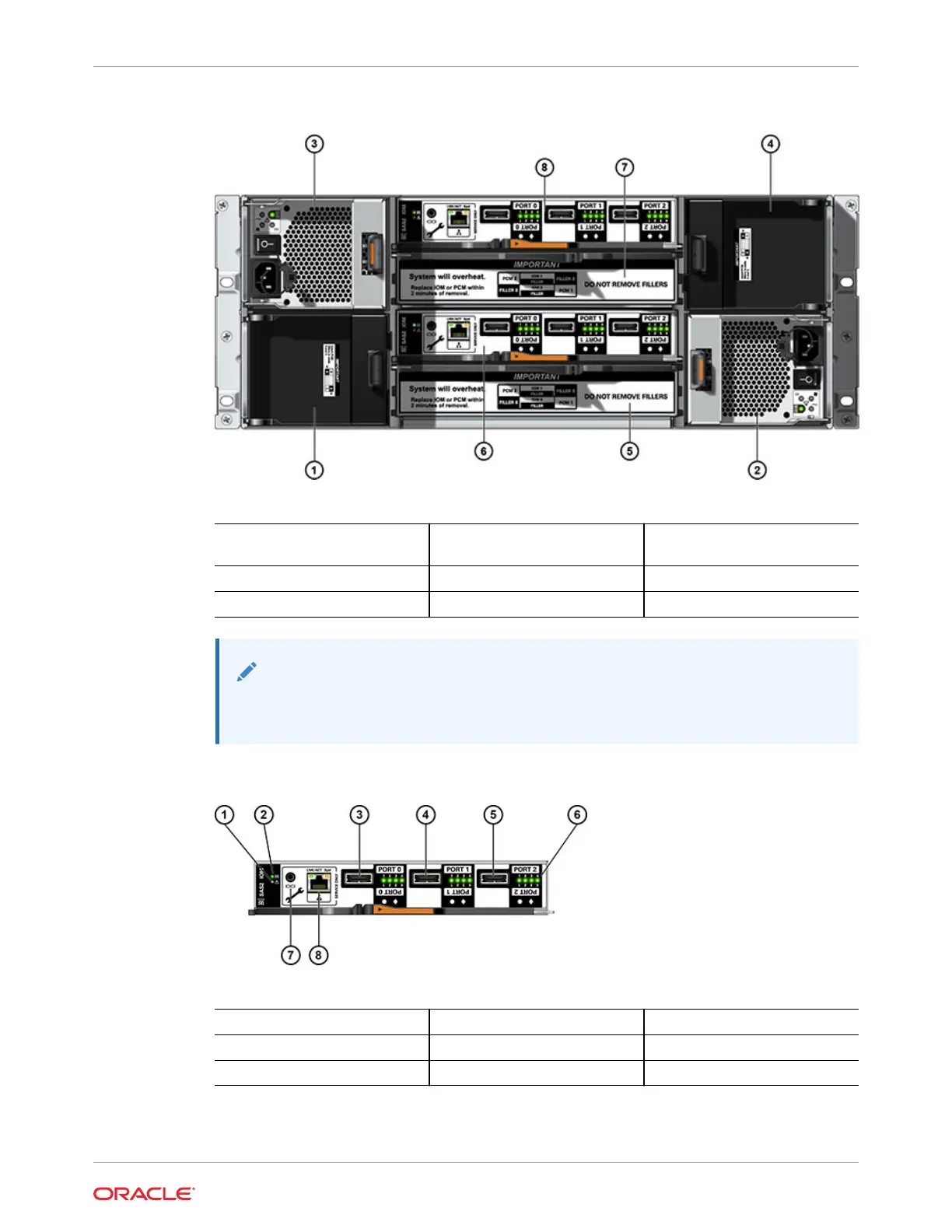

Oracle Storage Drive Enclosure DE2-24C Rear Panel
1 Power supply filler panel, slot 0 2 Power supply with fan module
1
3 Power supply with fan module
2
4 Power supply filler panel, slot 3 5 I/O Module filler panel 6 I/O Module 0
7 I/O Module filler panel 8 I/O Module 1
Note:
It is especially important that power supplies and their filler panels are in the correct
slots.
Oracle Storage Drive Enclosure DE2 I/O Module Indicators
1
Fault/Locate indicator 2 Power/OK indicator 3 SAS-2 Port 0
4 SAS-2 Port 1 5 SAS-2 Port 2 6 Host port activity indicators
7 For Oracle service only 8 For Oracle service only
The Oracle Storage Drive Enclosure DE2-24C and DE2-24P disk shelves use the same I/O
Module.
Chapter 2
Overview of Disk Shelves
2-23
