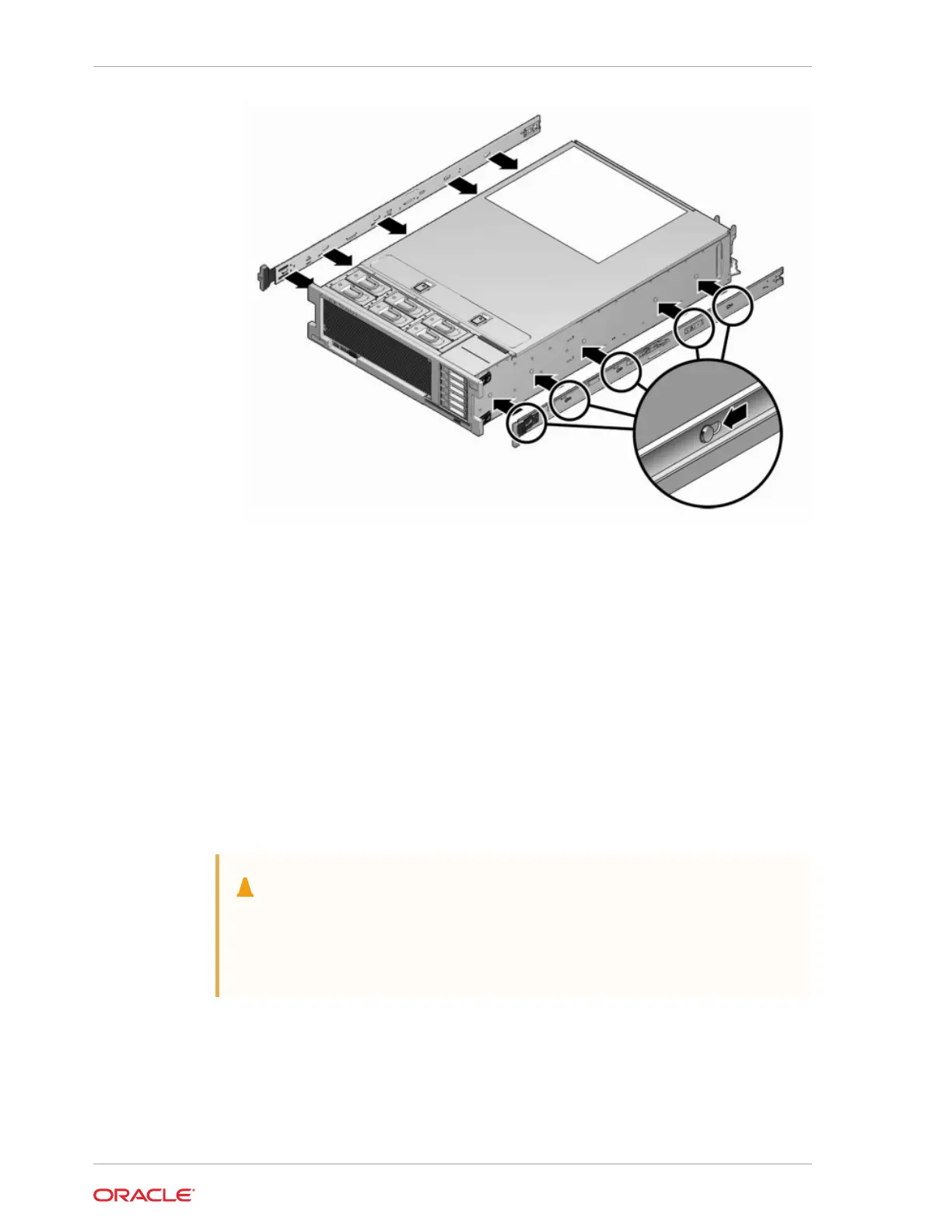

3. With the heads of the four chassis locating pins protruding through the four
keyhole openings in the mounting bracket, pull the mounting-bracket toward the
front of the chassis until the mounting-bracket clip locks into place with an audible
click.
4. Verify that all mounting pins are securely fastened to the chassis.
5. Repeat to install the remaining mounting bracket on the other side of the chassis.
Installing a Sun ZFS Storage 7x20 Controller onto the Rack
Slide Rails
Use the following procedure to install a Sun ZFS Storage 7420, 7320, or 7120
controller onto the rack slide rails.
Caution:
This procedure requires a minimum of two people because of the weight of
the chassis. Attempting this procedure alone could result in equipment
damage or personal injury. Always load equipment into rack from the bottom
up.
Before You Begin
Extend all anti-tilt and stabilization devices from the bottom of the rack.
1. If you are using a universal 19-inch cabinet, snap an M6 square cage nut into the
top and bottom holes of the location where you will be installing the rail plate as
shown.
Chapter 10
Installing a Sun ZFS Storage 7x20 Controller onto the Rack Slide Rails
10-4
