Note:
If the mounting brackets are shipped inside the slide rails, you must remove them
before beginning this procedure; see Removing the Sun ZFS Storage 7x20
Mounting Brackets from Inside the Slide Rails.
1. Position a mounting bracket against the chassis so that the slide rail lock is at the front of
the chassis, and the keyhole openings on the mounting bracket are aligned with the
locating pins on the side of the chassis.

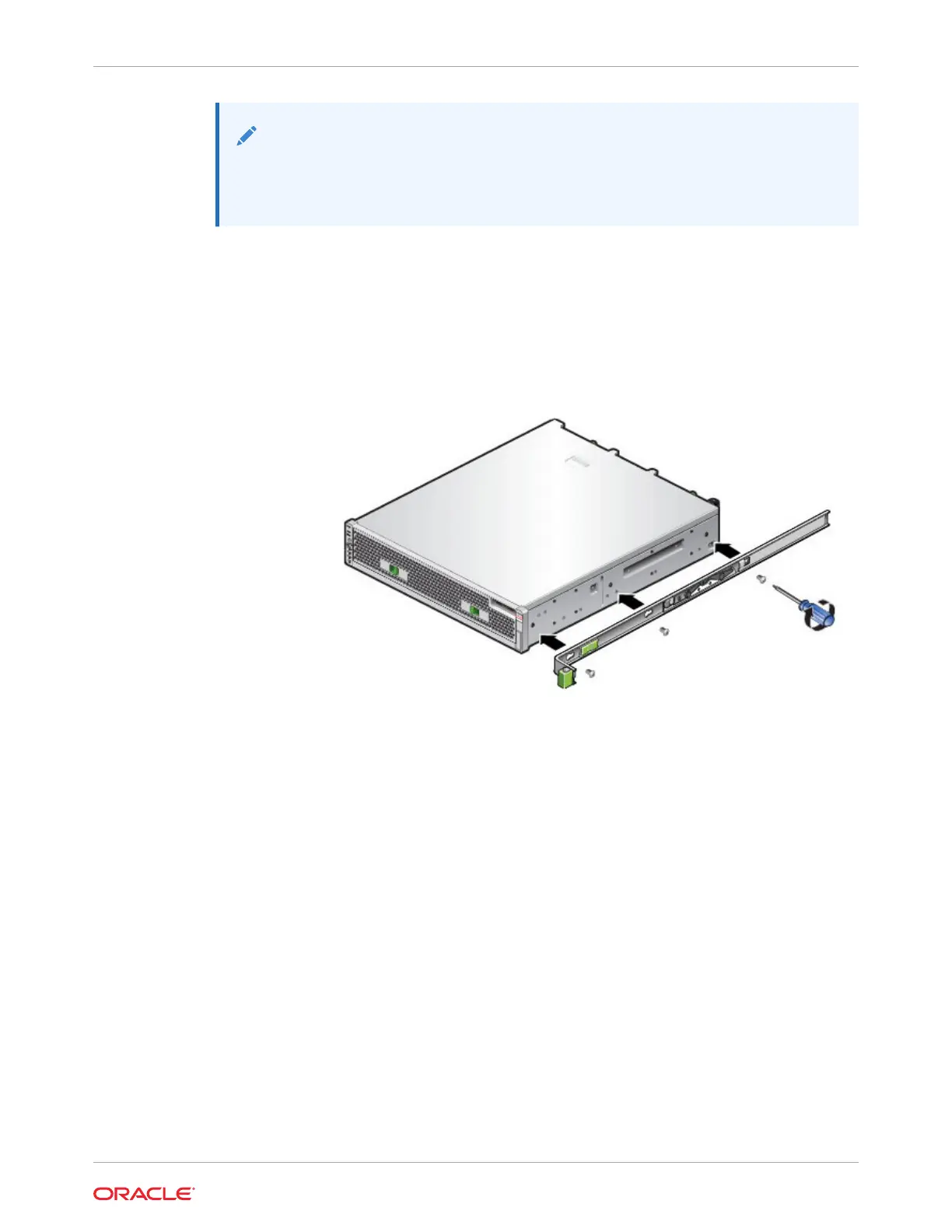

The following graphic illustrates how to attach the Sun ZFS Storage 7120/7320 mounting
brackets.
2. The following graphic illustrates how to attach the Sun ZFS Storage 7x20 mounting
brackets.
Chapter 10
Installing the Mounting Brackets on a Sun ZFS Storage 7x20 Controller
10-3
