Oracle ZFS Storage ZS5-x Cluster Cabling
Three Category 5 Ethernet cables are provided. Each cable is 2.5 meters in length.
• Connect one cable from serial port 0 of one controller to serial port 1 of the other
controller.
• Connect the second cable from serial port 1 of one controller to serial port 0 of the
other controller.
• Connect the third cable between the Ethernet ports of each controller.

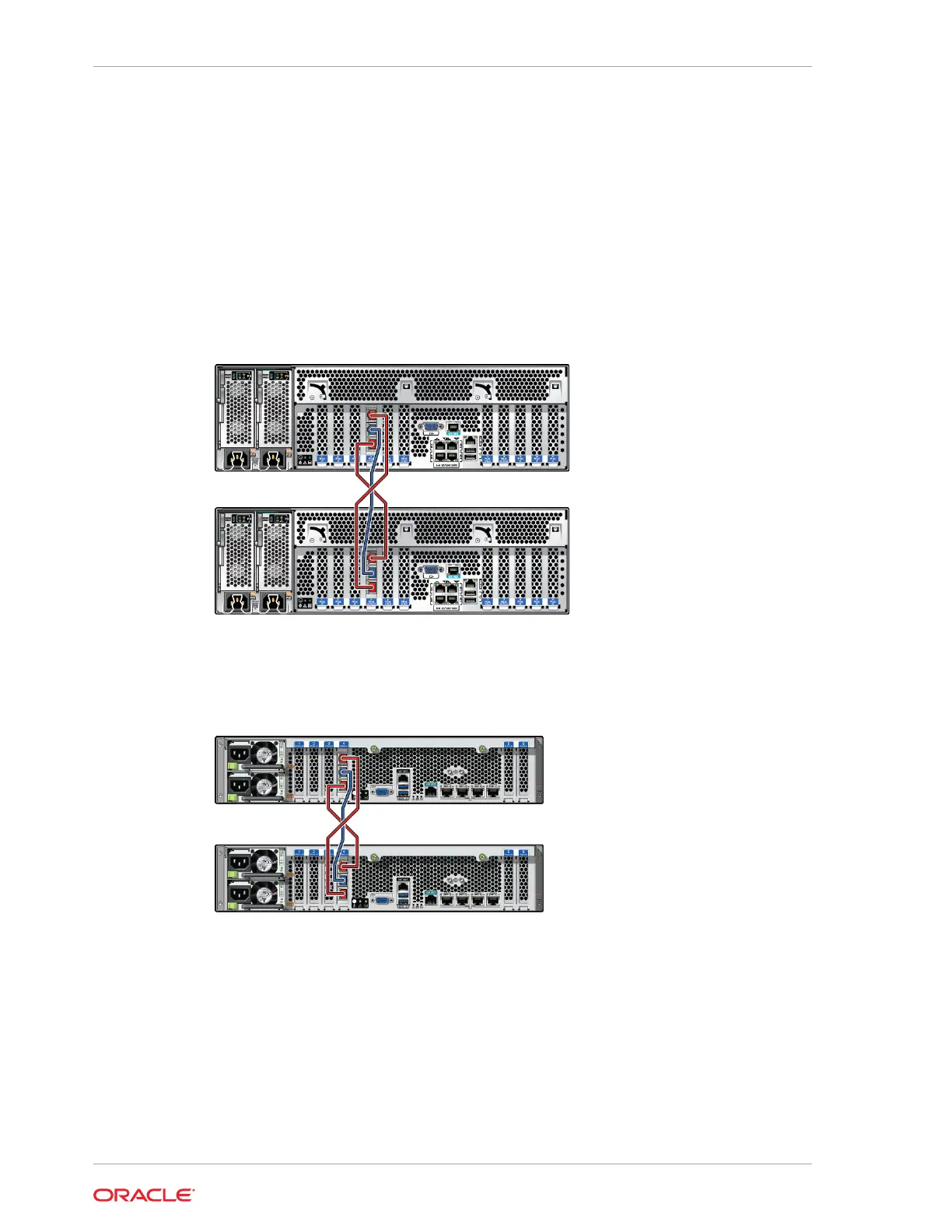

The following figure shows cluster cabling between two Oracle ZFS Storage ZS5-4
controllers.
The following figure shows cluster cabling between two Oracle ZFS Storage ZS5-2
controllers.
Oracle ZFS Storage ZS4-4 Cluster Cabling
Three Category 5 Ethernet cables are provided. Each cable is 1 meter in length.
Connect the cables in the same way as described for Oracle ZFS Storage ZS5-x
controllers.
The following figure shows cluster cabling between two Oracle ZFS Storage ZS4-4
controllers.
Chapter 11
Connecting Cluster Cables
11-4
