g. For clustered controllers, repeat steps a-f for the second controller, and
choose a unique controller name.

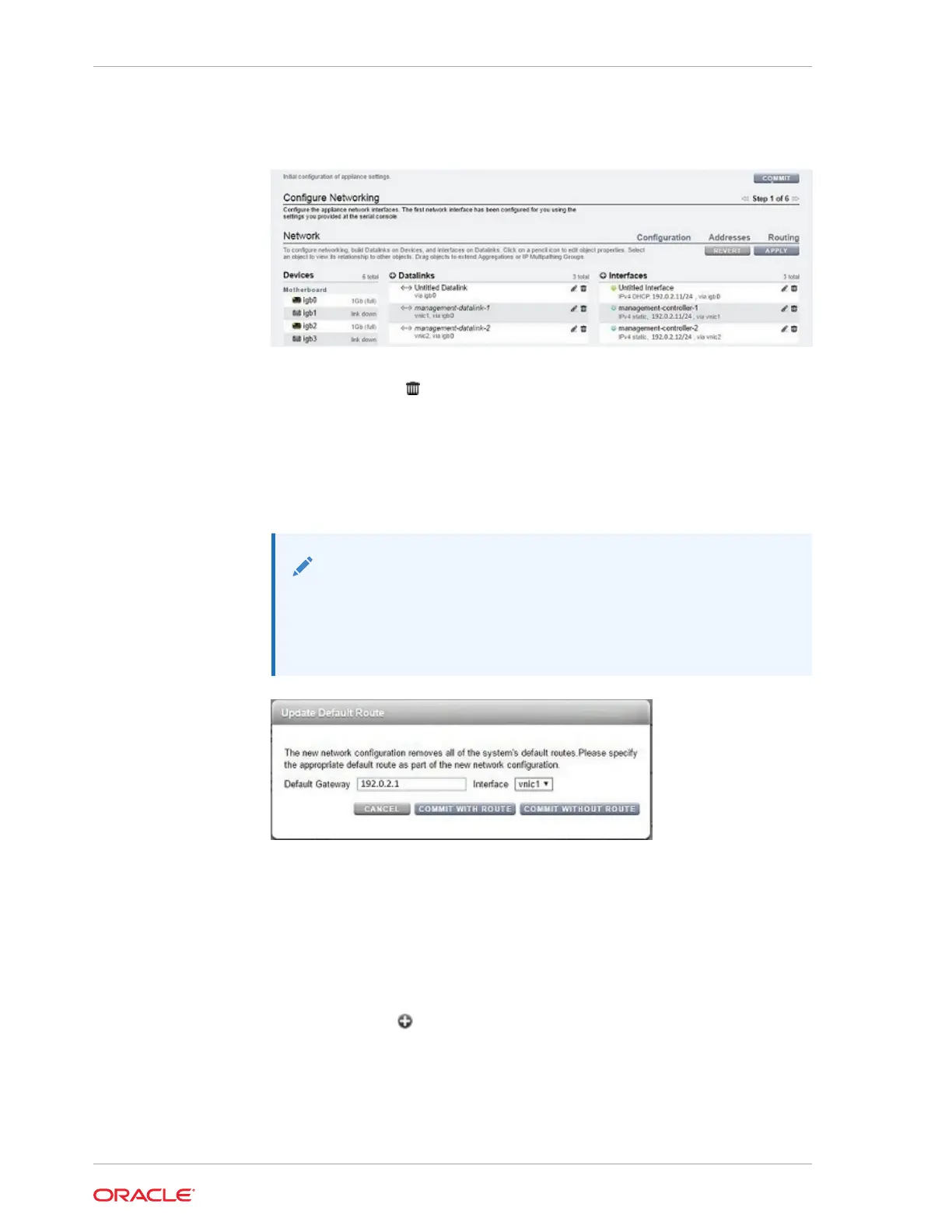

h. Click the trash icon next to the default interface, named Untitled Interface,
to destroy it, and click APPLY.
i. In the Update Default Route dialog box, type the Default Gateway and select
an Interface from the drop-down menu. Click COMMIT WITH ROUTE.
The default gateway is the default router IP address. For the interface, select
the datalink that you assigned to the first management interface.
Note:
It is strongly recommended to set a route because it enables
communication with the appliance via the BUI and CLI. Without a
route, the only means of communication with the appliance is
through an Oracle ILOM connection to the SP.
j. To configure additional routing, go to step 7. Otherwise, click COMMIT and
skip to step 8.
7. Optional: To configure additional routing, use the following steps.
For clustered controllers and if not using a VNIC, create a route on each interface
that is assigned to a controller. For detailed routing information, see Configuring
Network Routing in Oracle ZFS Storage Appliance Administration Guide, Release
OS8.8.x.
a. Click the add icon next to Routing Table Entries.
b. In the Insert Static Route dialog box, set the following properties:
• Family - Select IPv4
• Kind - Select Default
Chapter 13
Performing Initial Configuration (BUI)
13-10
