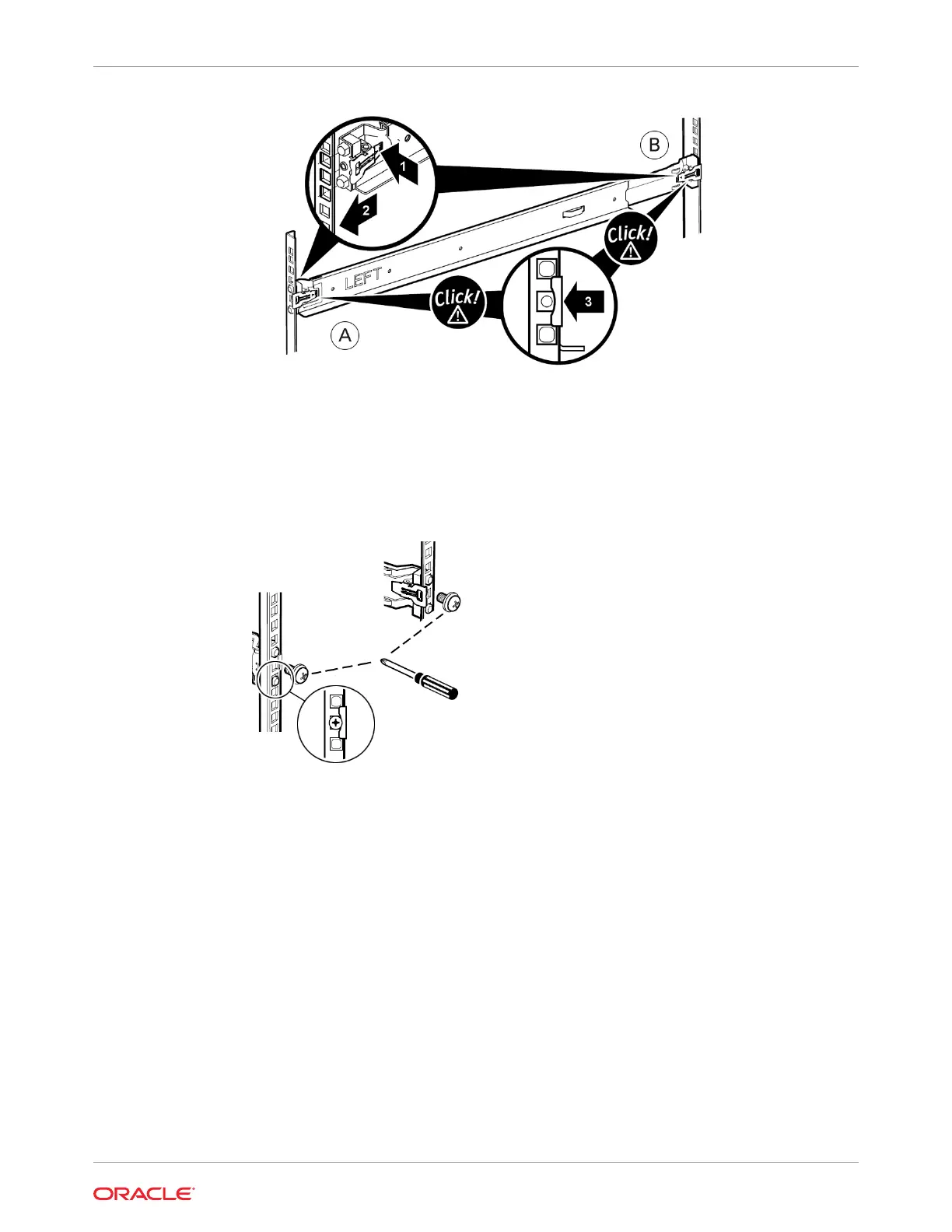

d. Close the rail clamps over the rails by releasing the clamp lever [3].
You will hear an audible click as the clamps lock in place over the rack rails.
e. Repeat steps a through d for the second rail.
4. Install one screw through the rack and into the rear of each rail.
5. Using a mechanical lift or two people, one at each side of the disk shelf, carefully lift and
rest the shelf on the bottom ledge of the left and right rails. Do not lift using the power
supply handles.
Chapter 3
Installing an Oracle Storage Drive Enclosure DE3-24P Disk Shelf
3-3
