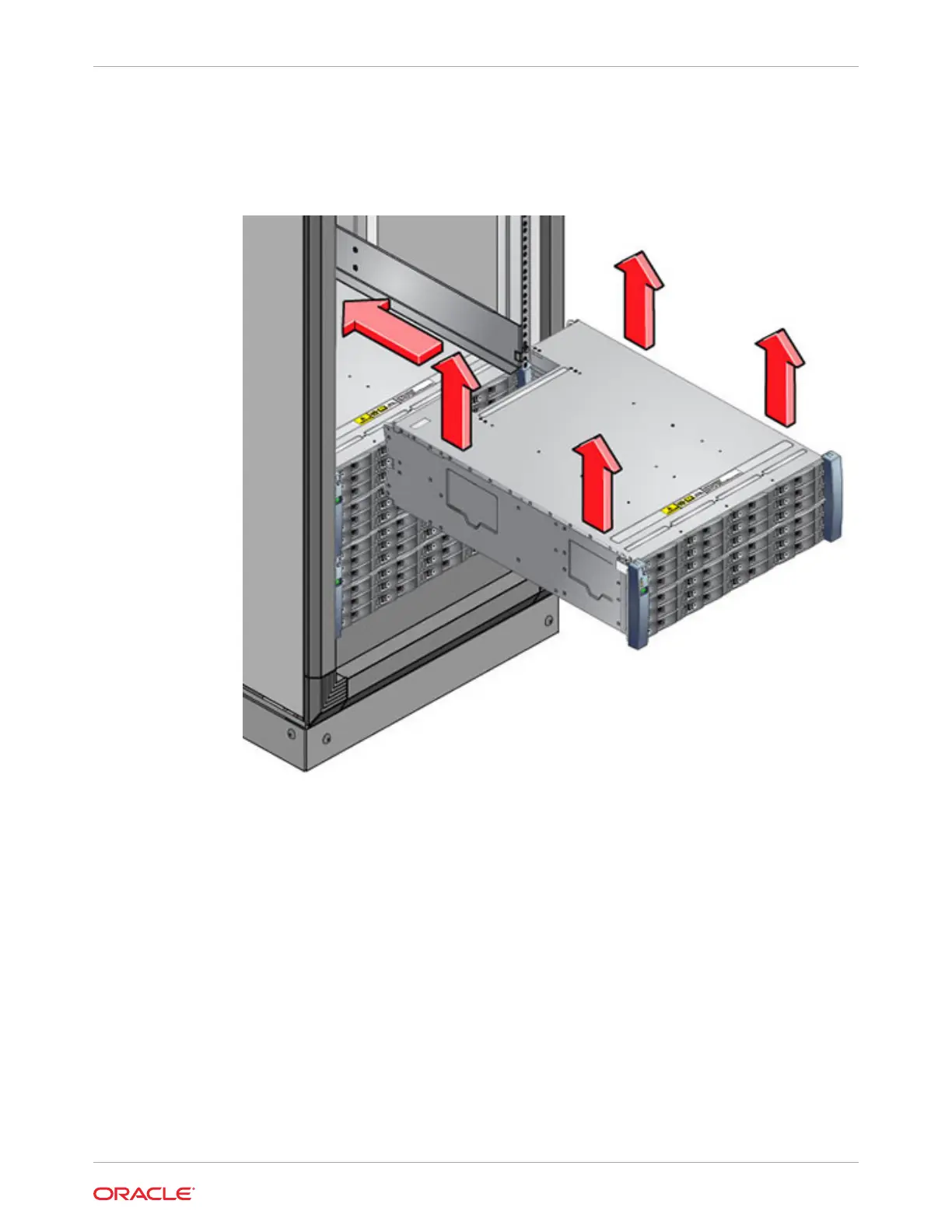

8. Using a mechanical lift or two people, one at each side of the disk shelf, carefully lift and
rest the shelf on the bottom ledge of the left and right rails. Do not lift using the power
supply handles.
9. Carefully slide the shelf into the cabinet. Ensure that the shelf is fully seated within the
rails. If removing the shelf to reseat it, support it at all times.
10. Remove the front side caps, install two screws into each front side, and replace the caps.
11. Install one long patchlock screw per rail to secure the rear of the shelf to the rear of the
rack.
Chapter 3
Installing an Oracle Storage Drive Enclosure DE2-24C Disk Shelf
3-15
