2. Lower the rack stabilization feet if you have not already done so.
3. Push the slide rails into the slide-rail assemblies in the rack as far as possible.

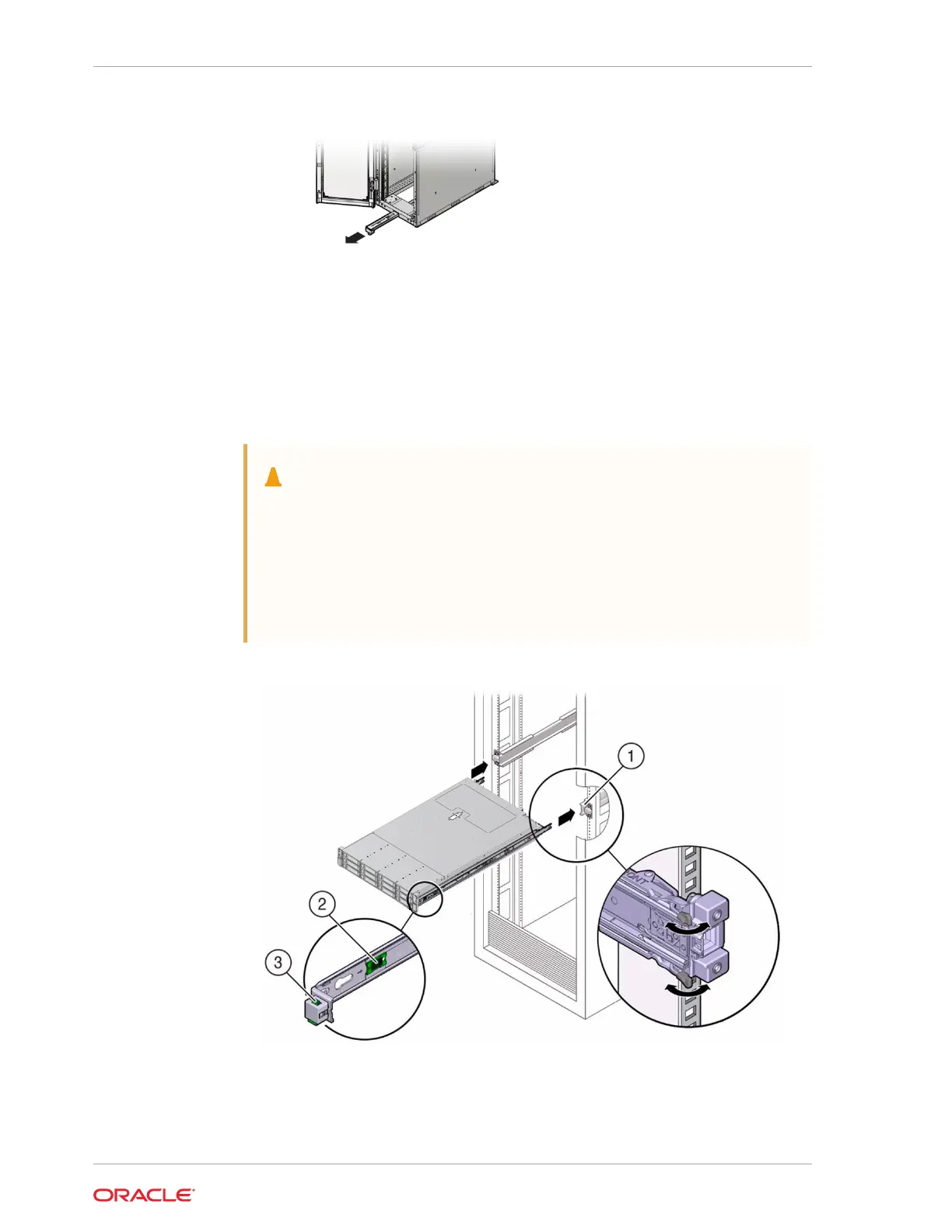

4. Raise the chassis so that the back ends of the mounting brackets are aligned with
the slide rail (1) and insert the chassis into the slide rails, pushing the chassis
slowly, until the mounting brackets meet the slide-rail stops (approximately 12
inches, or 30 cm).
Caution:
When inserting the controller into the slide rail, ensure that both the top
and bottom mounting lips of the mounting brackets are inserted into the
slide rail. The controller should slide forward and backward easily if
correctly installed. If the unit does not slide easily, ensure that each
mounting lip is inserted properly. If the mounting brackets are not
inserted properly, the unit may fall when removing it from the rack,
causing equipment damage and possibly personal injury.
5. Simultaneously push and hold the green slide-rail release buttons on each
mounting bracket (2) while you push the chassis into the rack. Continue pushing
Chapter 4
Installing an Oracle ZFS Storage ZS9-2 Controller onto the Rack Slide Rails
4-4
