3.3 Bottom Panel

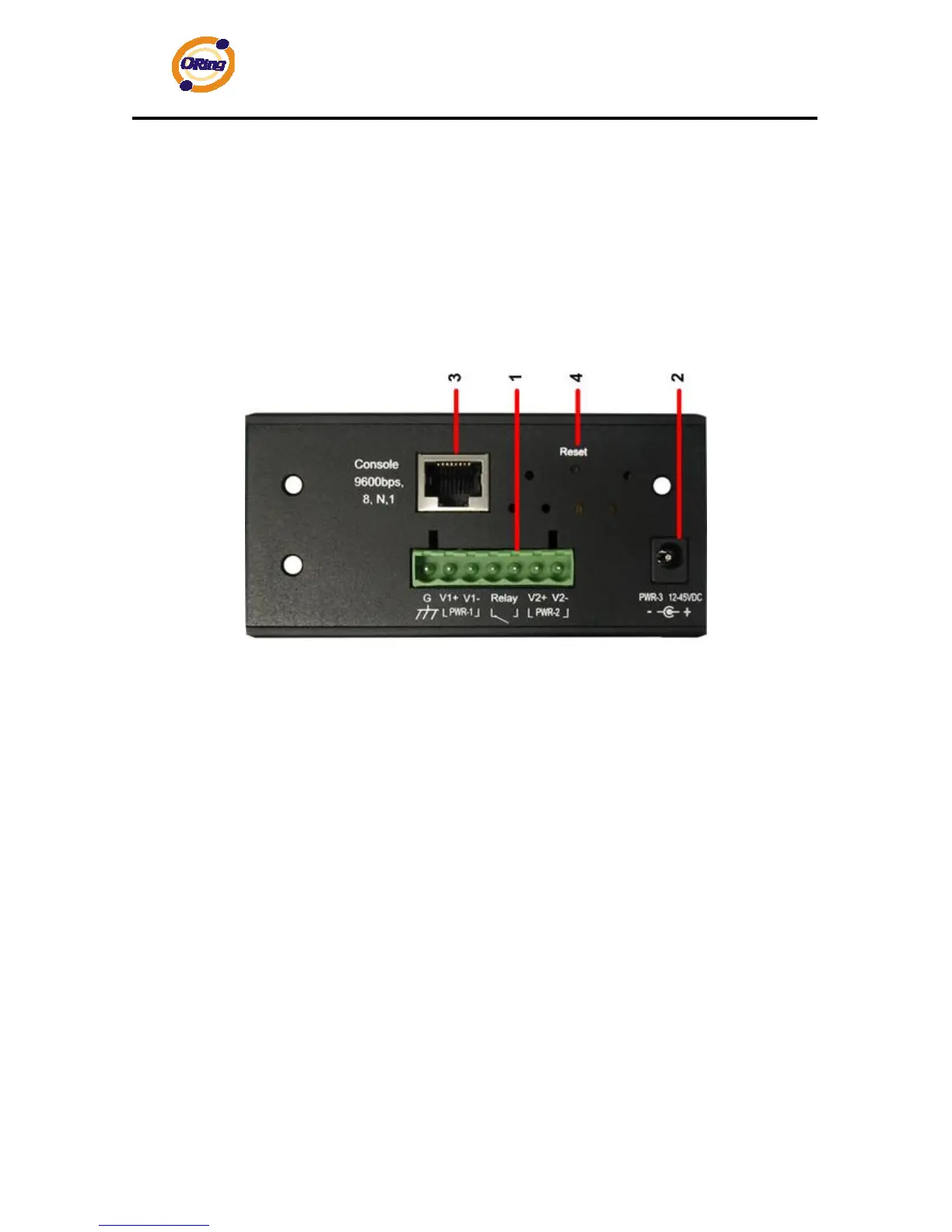

The bottom panel components of IGS-3032GC are shown as below:
1. Terminal block includes: PWR1, PWR2 (12-48V DC) and Relay output (1A@24VDC).
2. Power jack for PWR3 (12-45VDC).
3. Console port (RJ-45).
4. Reset button. Push the button 3 seconds for reset; 5 seconds for factory default
