IGS-3032GC User’s Manual
17

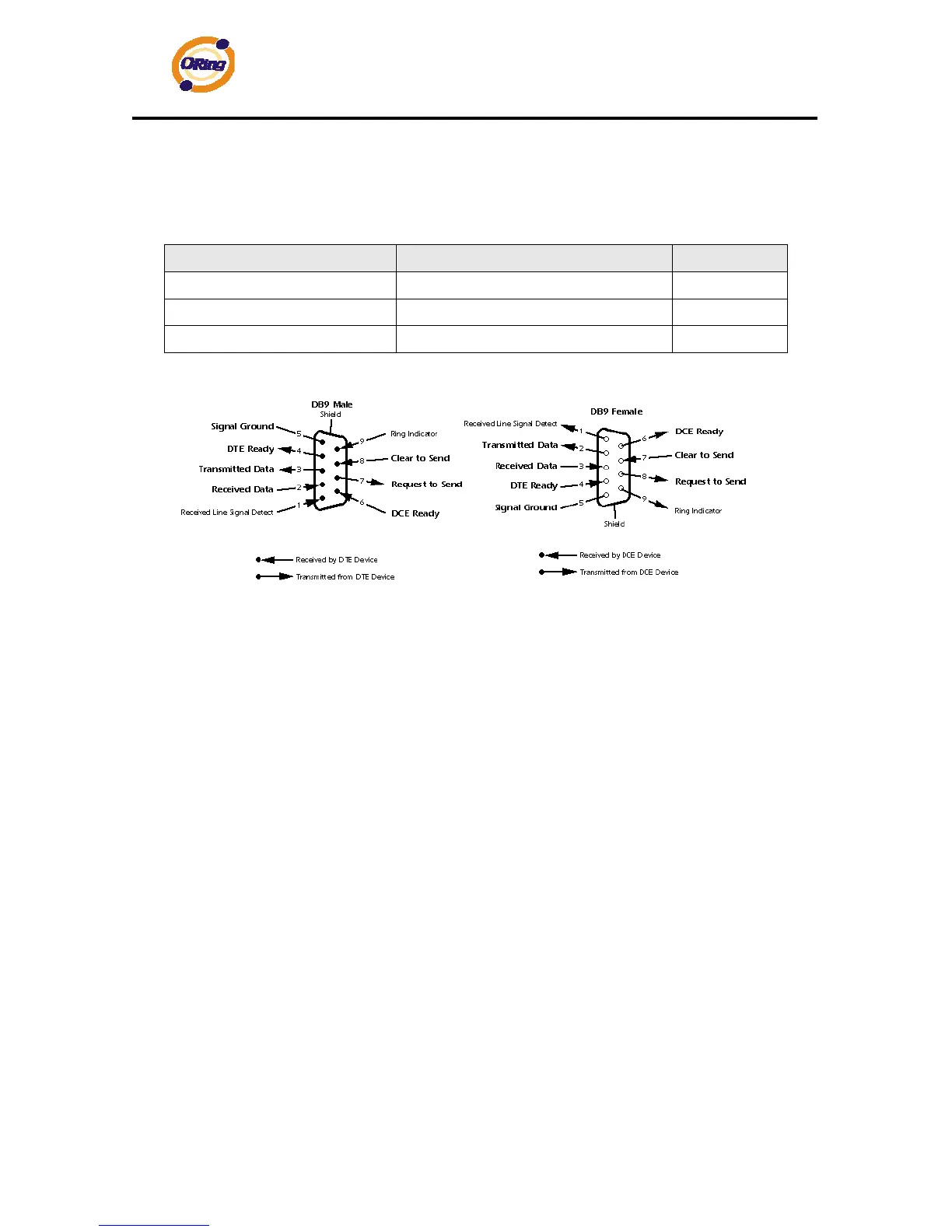

4.3 Console Cable
IGS-3032GC switch can be management by console port. The DB-9 to RJ-45 cable can be
found in the package. You can connect them to PC via a RS-232 cable with DB-9 female
connector and the other end (RJ-45 connector) connects to console port of switch.
PC pin out (male) assignment RS-232 with DB9 female connector DB9 to RJ 45
Pin #2 RD Pin #2 TD Pin #2
Pin #3 TD Pin #3 RD Pin #3
Pin #5 GD Pin #5 GD Pin #5
