IGS-3032GC User’s Manual
40

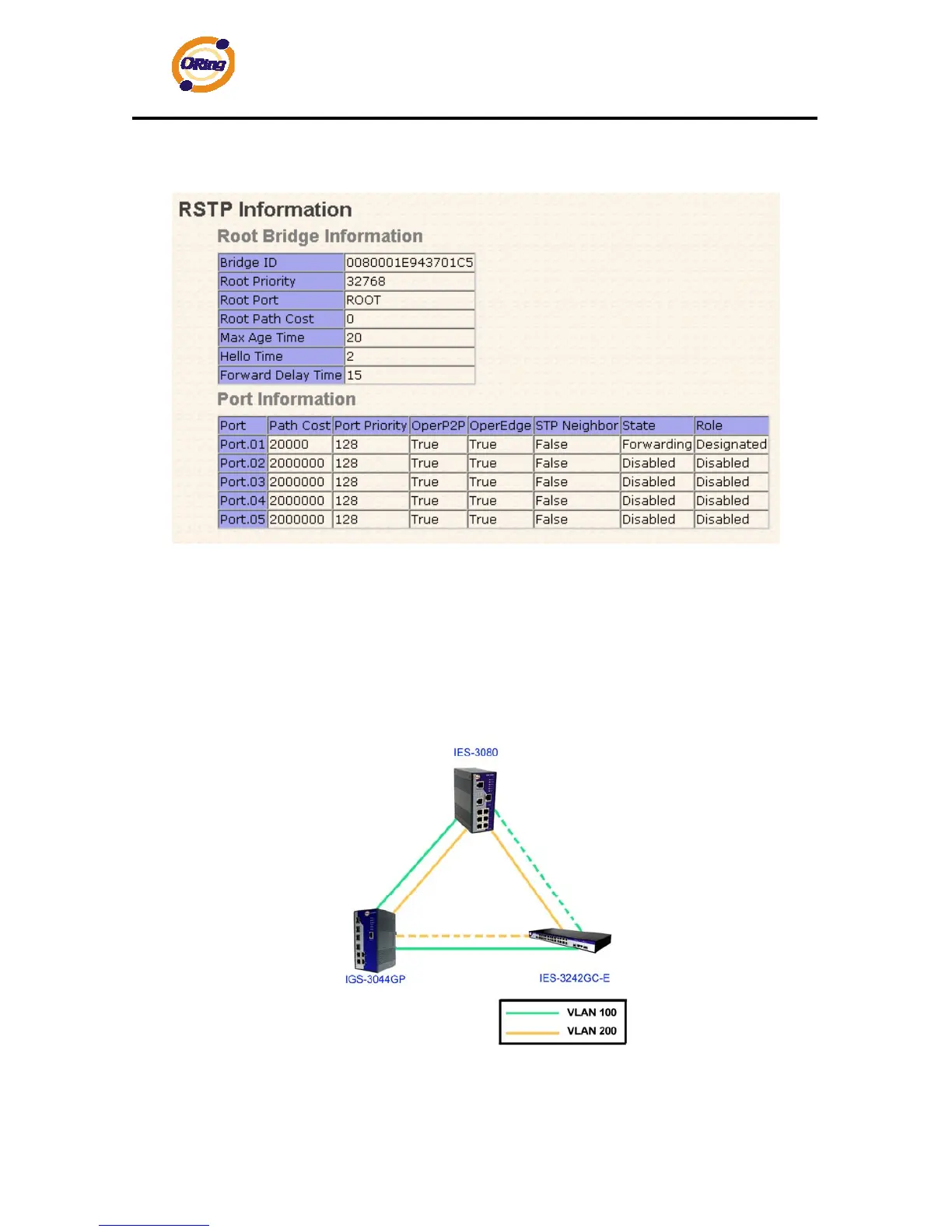

RSTP Information
Show RSTP algorithm result at this table.
RSTP Information interface
5.1.5.5 MSTP
Multiple Spanning Tree Protocol (MSTP) is a standard protocol base on IEEE 802.1s. The
function is that several VLANs can be mapping to a reduced number of spanning tree
instances because most networks do not need more than a few logical topologies. It supports
load balancing scheme and the CPU is sparer than PVST (Cisco proprietary technology).
