4.2 Redundant Power Supply Option
The Power Supply units that are used within this chassis are shared by the electrical components within the chassis. Both units effectively
distribute power until one unit becomes nonoperational. In this case, the effect of power distribution is shifted to the functional Power Supply.

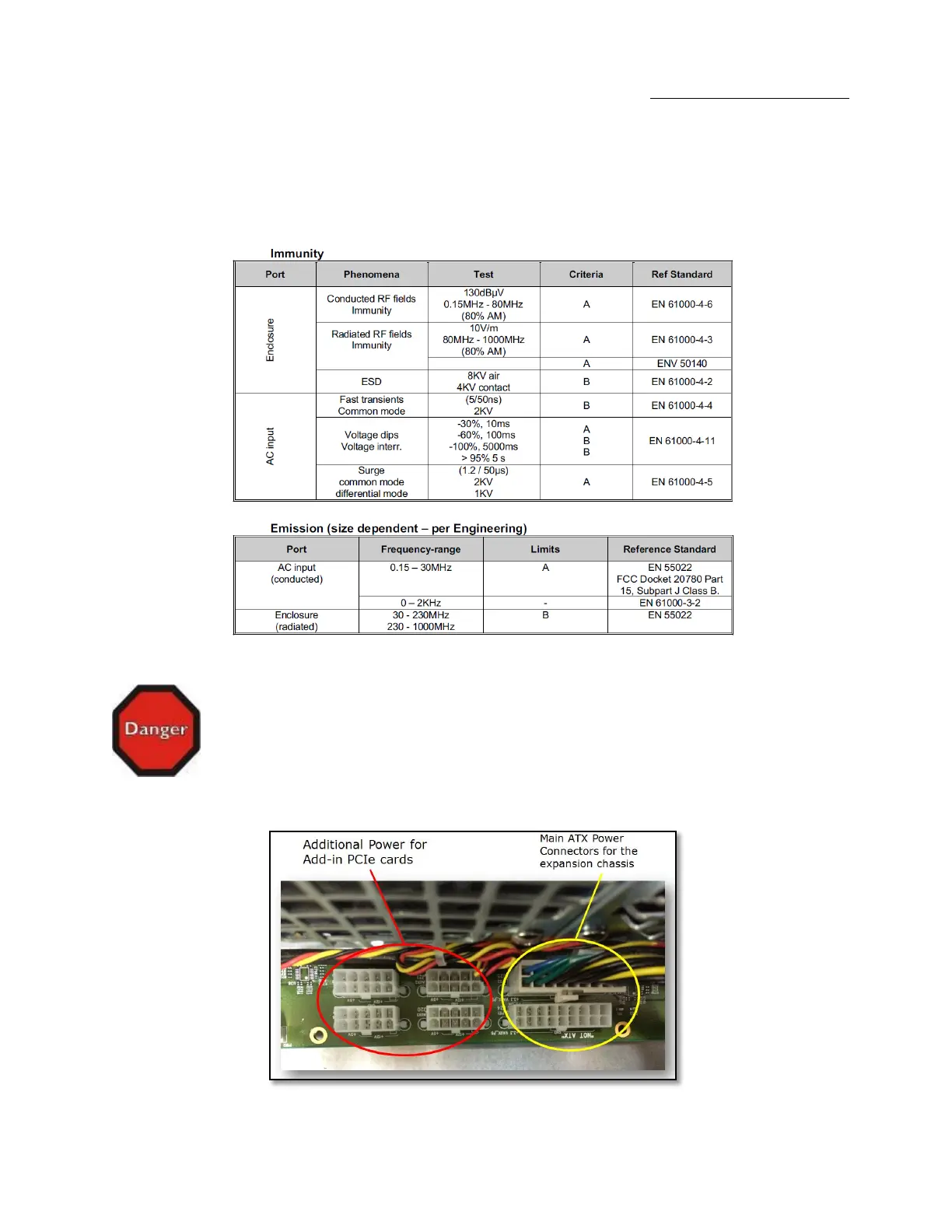

Further information about the Power supply’s electromagnetic capability (EMC) is listed below:
DANGER or STOP
DO NOT TEMPER WITH THE INTERIOR POWER CONNECTIONS THAT LINKS TO CONNECTORS J24 AND J25. IT PROVIDES
POWER TO THE ENTIRE BACKPLANE. ONLY USE THE GIVEN CABLE FOR CONNECTION SINCE IT IS NOT AN ATX MODEL
