OSS EB16-Basic - X8 Interface Card Leds and Lane Settings

One Stop Systems
ExpressBox 16 Basic| 37

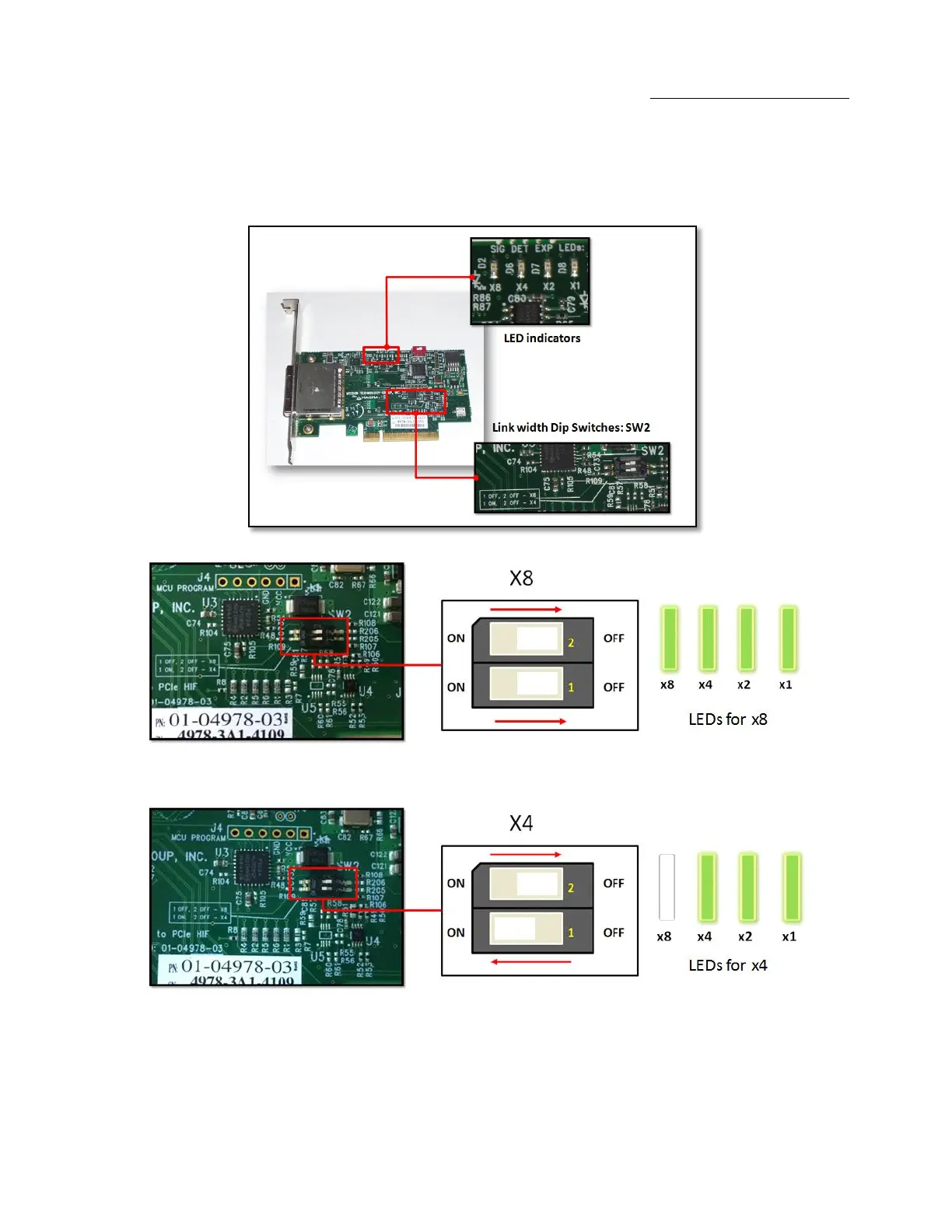

4.3.3 x8 Interface Card LEDs and Lane Settings
The card that is x8-capable (uses x8 iPass cable) contains status indicators that tell users the condition it is currently operating in. There are LED
indicators for the lanes that are being used for data transfer and whether the board is powered correctly. A switch is also available to change
the amount of lanes that would be operational for usage by the user.
