ExpressBox 16 Basic| 41
4.7 Backplane Dipswitches
The following dipswitches on the EB16 board are for internal manufacturing use only for
programming EEPROM.
SW2, SW4, SW5 , SW7, SW9, SW10, SW11
DO NOT TOUCH THIS!!! DO NOT CHANGE SETTINGS!!
Changing or moving the dipswitches will corrupt the EEPROM, which will render the
slots or the entire expansion board non-operational.

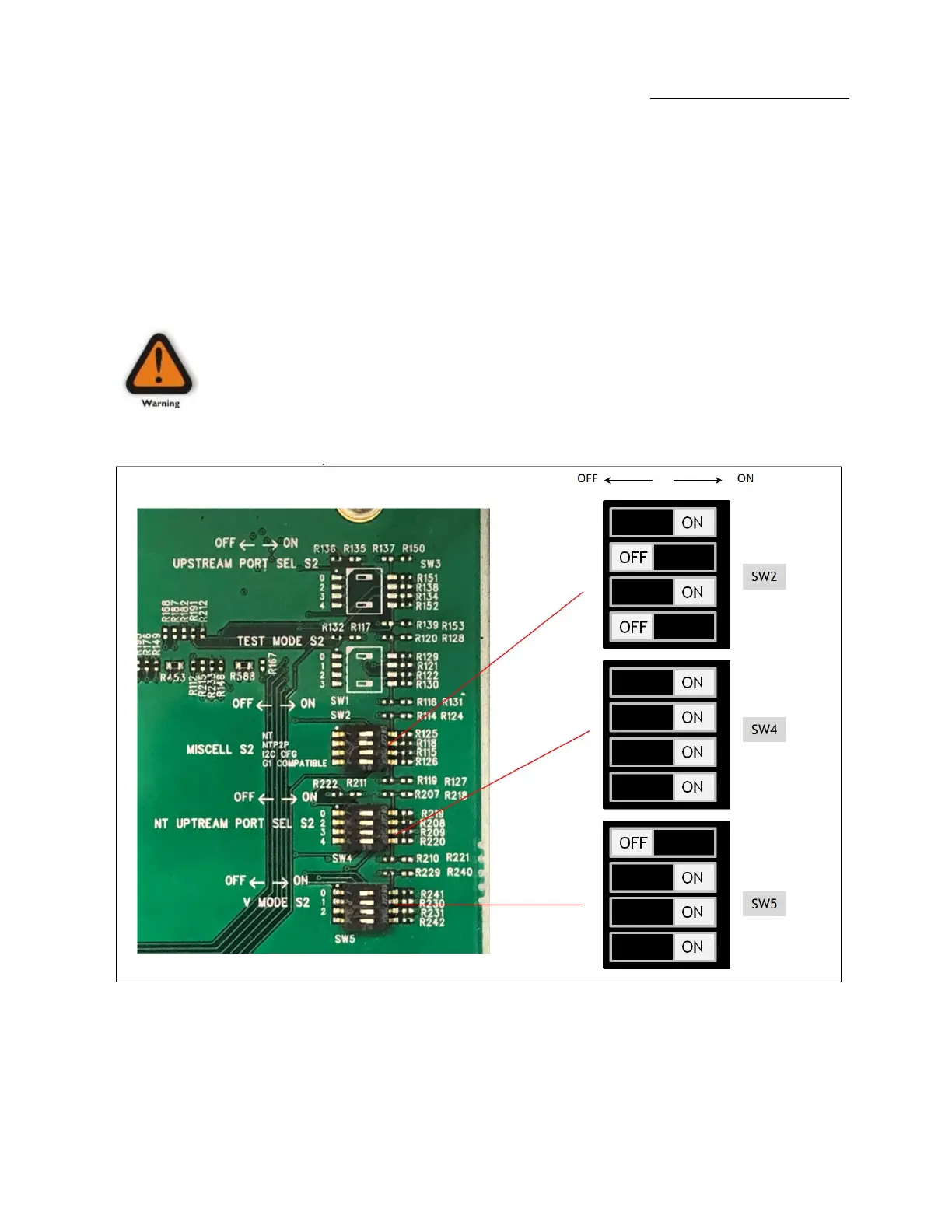

Below are the manufacturing default settings for the backplane / expansion board dipswitches
