OSS EB16-Basic - Power Connectors and Cables

One Stop Systems
ExpressBox 16 Basic| 43

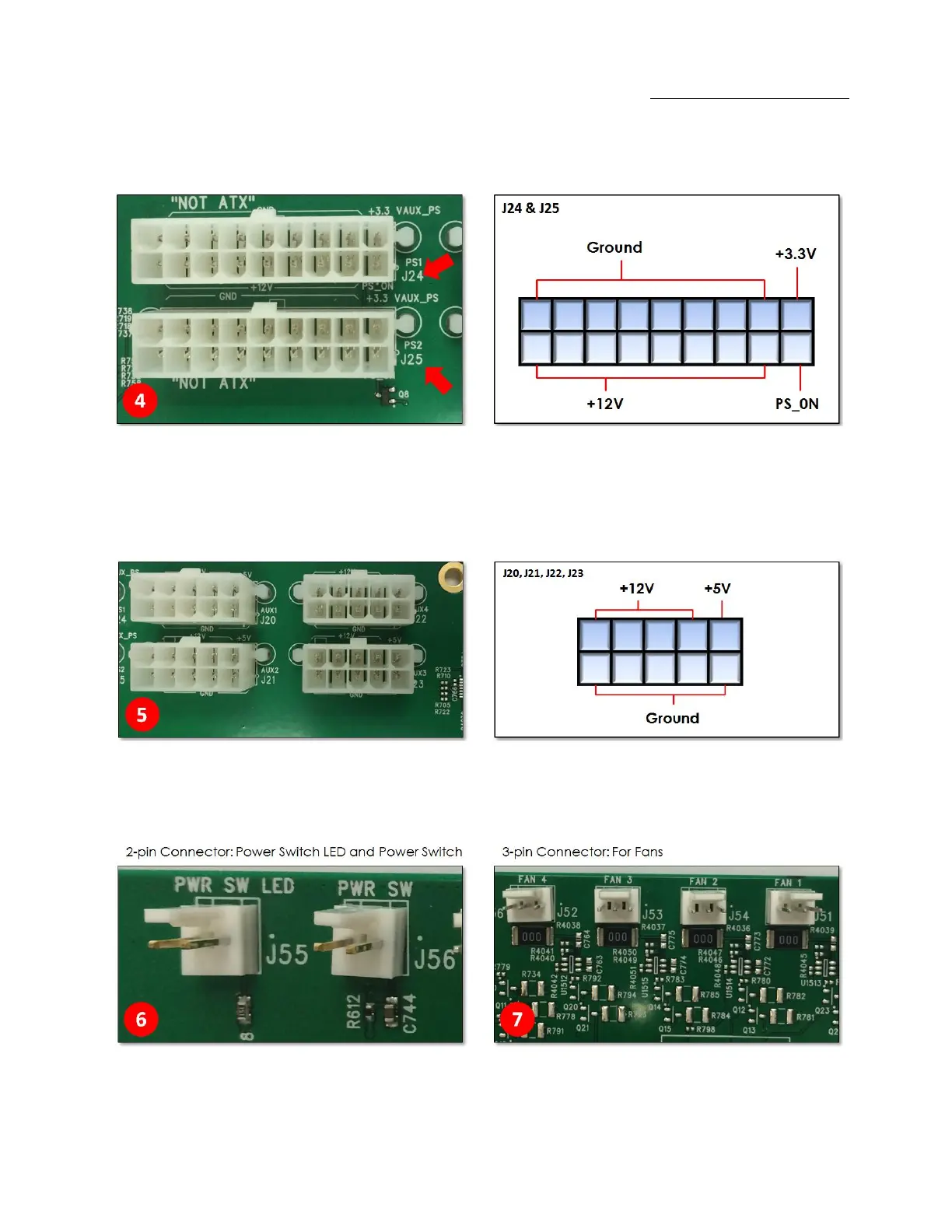

4.8 Backplane Power Supply Connectors
The pictures below are the two female Power Supply connectors (18-pin connector) on the main board / backplane.
4.8.1 Backplane Aux Power Connectors
These are the four Auxiliary power connectors available on the main board / backplane. It is a10-pin power connector.
4.8.2 Fan Connectors & Power / LED Connectors
