ExpressBox 16 Basic| 36
4.3.2 x16 Card Bandwidth / Lane Settings
The width of the active data lanes may vary based on the PCIe slot that you are using for your OSS host interface card. Be sure to check the PCIe
slot in your computer to determine how many data lanes it can support. It should be labeled near the slot. The default value that the card is

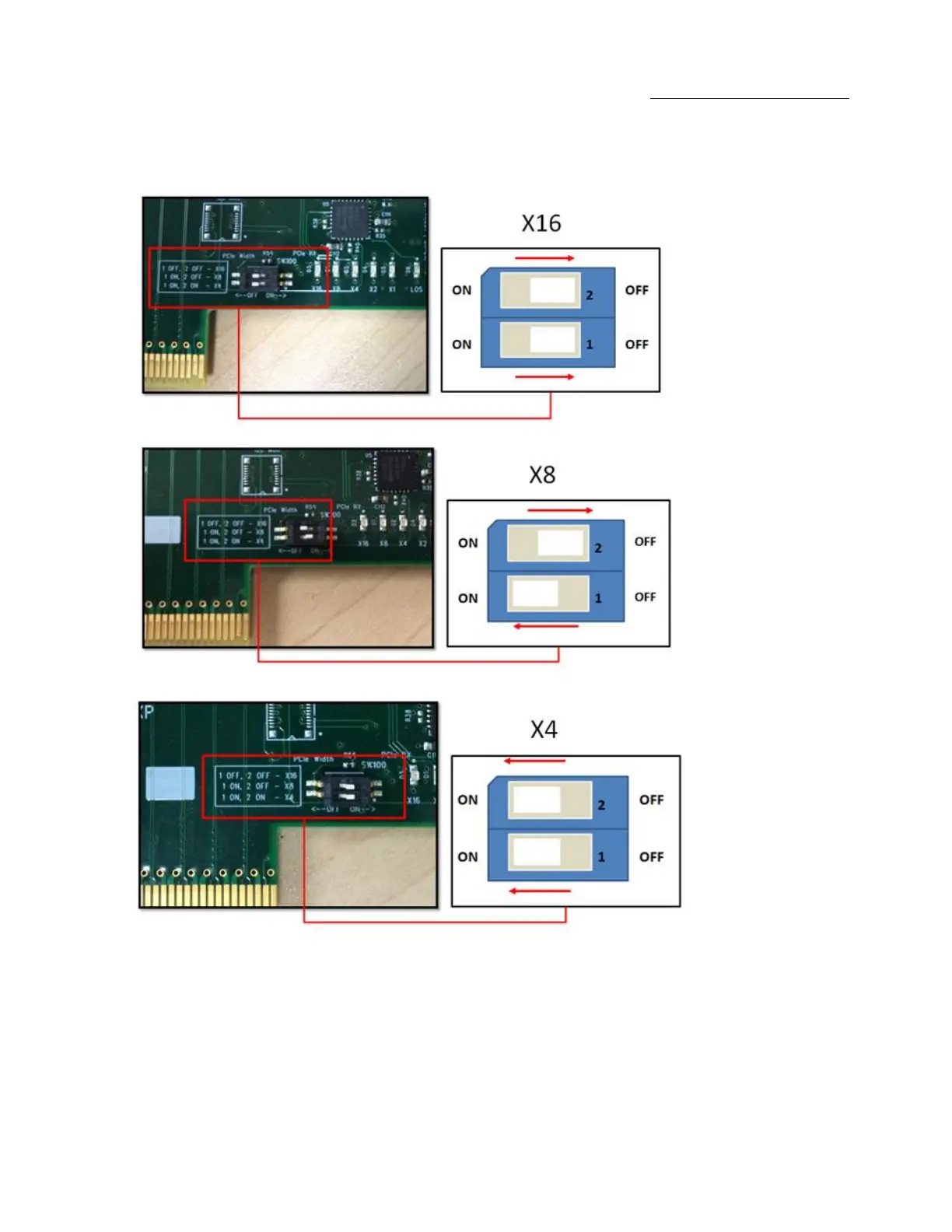

operating in is x16. In order to change the bandwidth of the card, refer to the Dipswitch labeled SW100.
