ExpressBox 16 Basic| 39

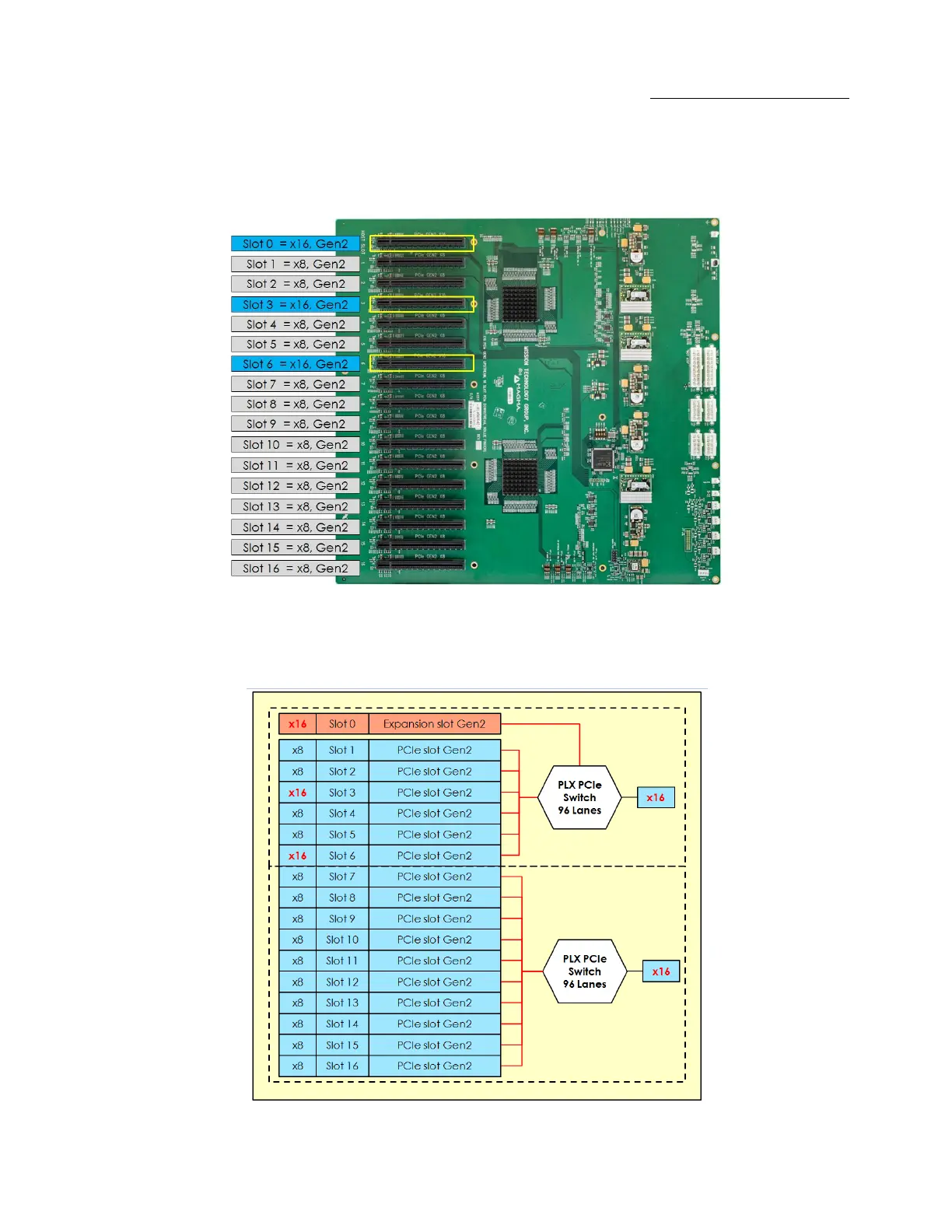

There are 17 slots in the EB16 unit, from slot 0 to slot 16. Slot0 is the designated slot for expansion interface card. There are three x16 PCIe
slots and thirteen x8 PCIe slots.
 Main board (with 16 slot PCIe slots) is Gen 2 with PLX PCIe switch.
 Expansion and Host cards are Gen 2 x16
4.5 Backplane Block Diagram
