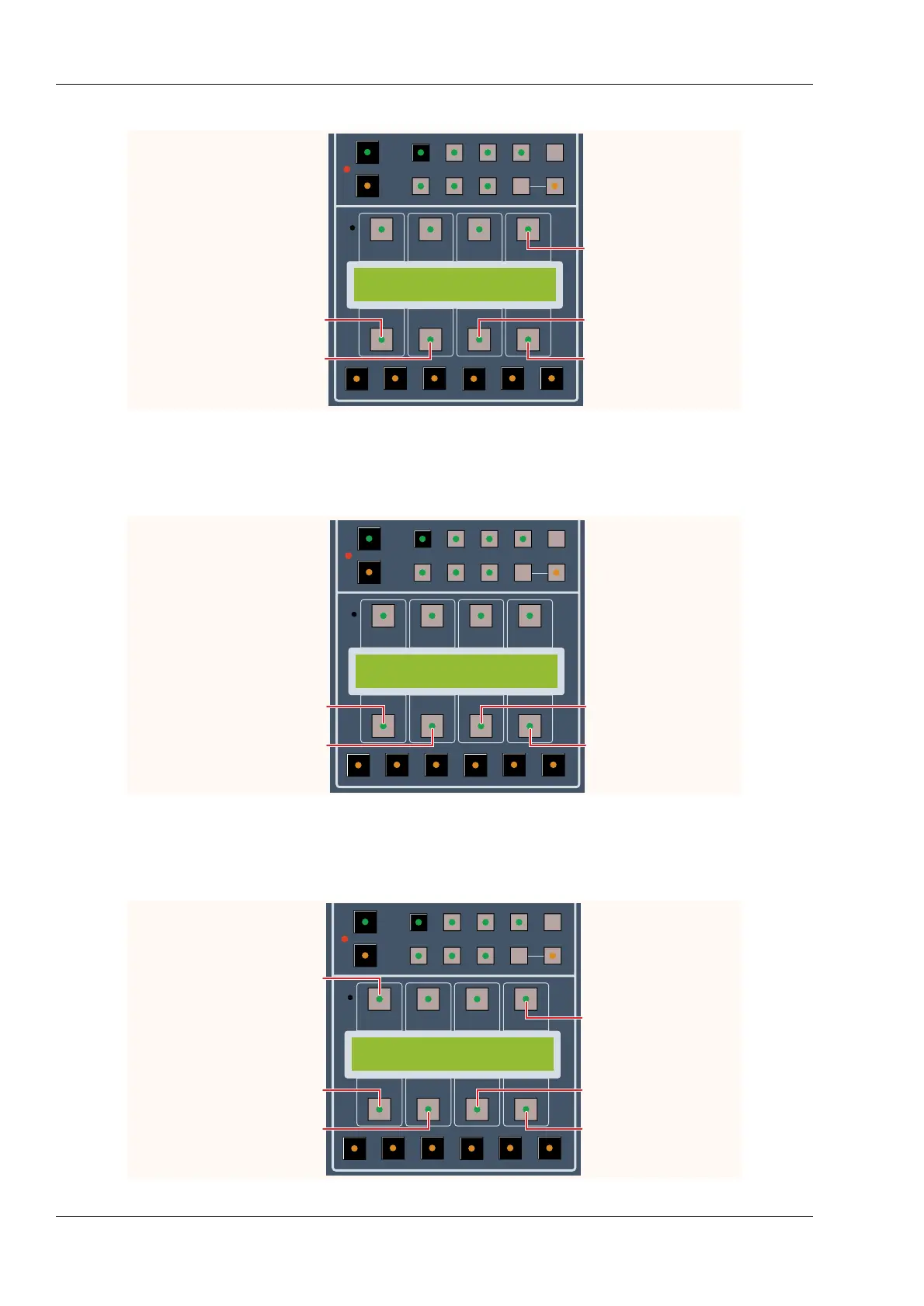

5.4.6 TCGEN Menu
5.4.7 TCGEN SET Menu
5.4.8 TCGEN Time Code Input
Increments number
above cursor
Sets time code to
00:00:00:00
Moves cursor to Left
Decrements number
above cursor
Returns to Set menu
Moves cursor to Right
Meter Solo Group Recall Automation Misc
One
Many
F1
None Selected
F2 F3 SoftKey Toggle
Module
Undo
Set
Transparent
Swap Last
State
Auto
Select
Shift
Ö 00:00:00:00 Ü
ZERO ü ï DONE
Sets loop end time code
Sets Start time code
Sets User bits
Returns to TCGEN menu
Meter Solo Group Recall Automation Misc
One
Many
F1
None Selected
F2 F3 SoftKey Toggle
Module
Undo
Set
Transparent
Swap Last
State
Auto
Select
Shift

START LP END UBITS DONE
Toggles looping
On and Off
Press to set Start and
Loop End time code
Sets time code rate
Resets to
Start time code
Toggles generator
On and Off
Meter Solo Group Recall Automation Misc
One
Many
F1
None Selected
F2 F3 SoftKey Toggle
Module
Undo
Set
Transparent
Swap Last
State
Auto
Select
Shift
00:00:00:00 -RATE- RESET
SET LP ON 30 START
Section 5 - Eagle Automation STATUS 18R Operation and Maintenance Manual
5 - 10
August 1999
