6.6 Internal Termination of VITC Input
Vertical Interval (Video) Time Code is interfaced to a coax connector labeled VITC on the
rear of the Auxiliary panel, next to the Digital Master Module.
A VITC time code bus should be terminated with a 75 Ohm termination connector after
the last input in the chain. As shipped, the STATUS VITC time code input is not 75 Ohm
terminated. If internal termination is required, install JP1 on the console’s time code
board as shown.
The Time Code board (Assy No. 181574 or PB-51DA) is located beneath the blank
auxiliary panel, near the front of the console.
STATUS 18R Operation and Maintenance Manual Section 6 - Alignment and Maintenance
August 1999
6 - 7

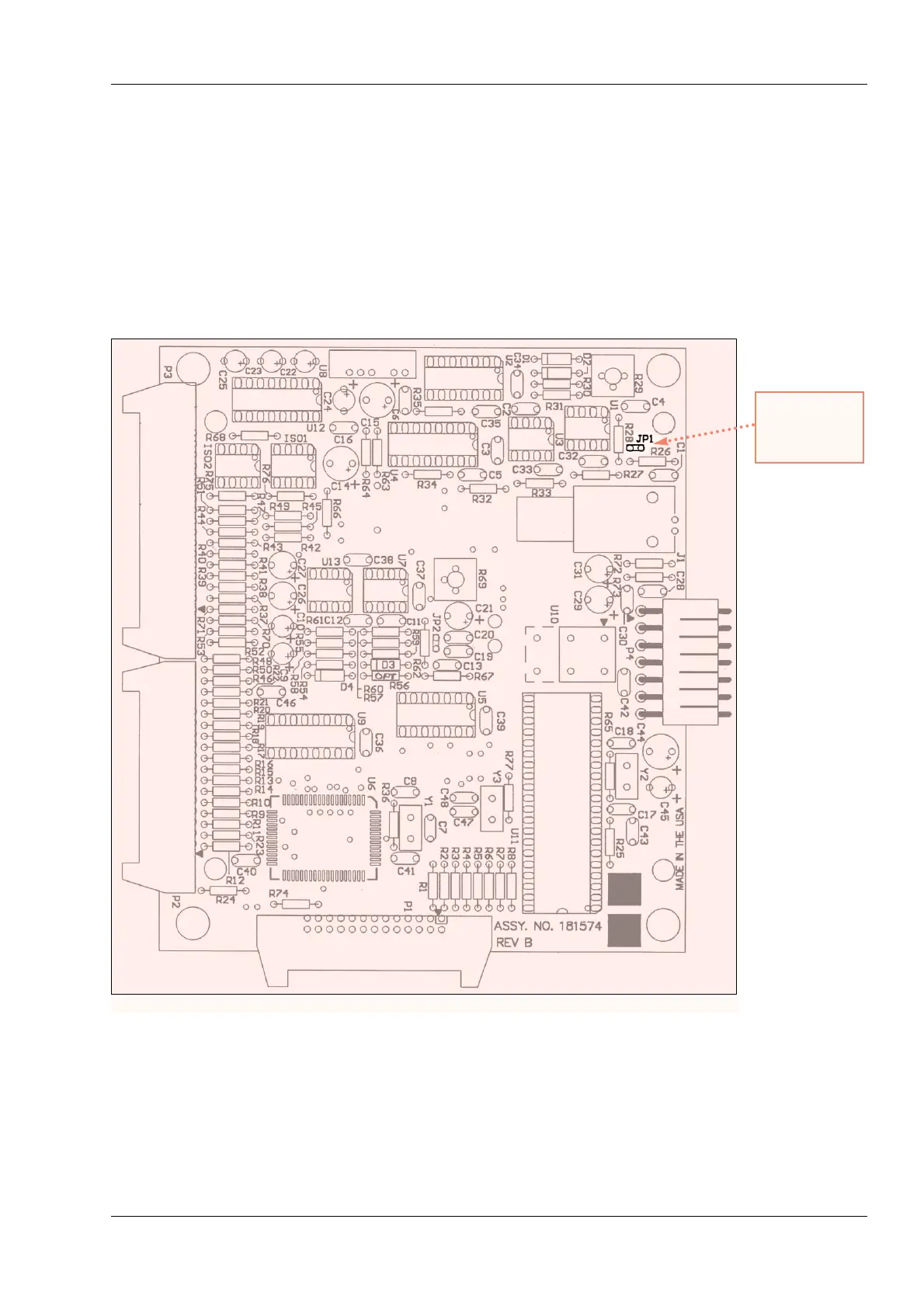

75 Ohm VITC
Termination
Jumper JP1
STATUS Time Code Board
