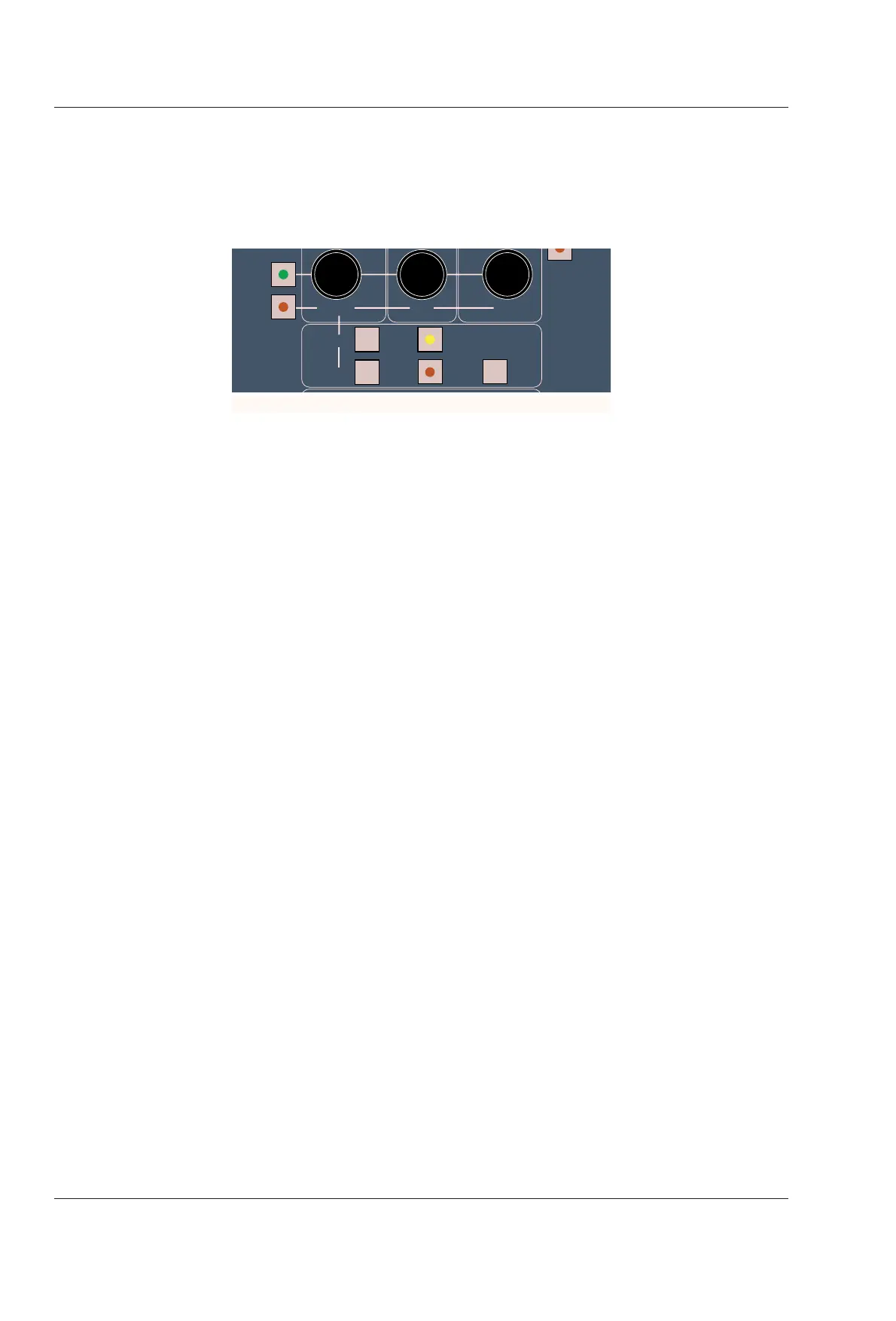

■ Preset Section Controls
The Preset section controls work in conjunction with the Preset/Key/Link switch and
the Preset rotary encoder. To select a preset:
1. Press the Preset/Key/Link select switch.
2. Turn the Preset rotary encoder until the desired preset number is displayed
on the LCD.
All load and save operations are performed on the preset displayed.
• Gate Button: When the Gate button LED is on, the gate preset will be will be loaded
or saved during a load or save operation.
• C/L Button: When the C/L button LED is on, the compressor/limiter preset will be will
be loaded or saved during a load or save operation.
• Load Button: Pressing Load while holding the Preset/Key/Link selection button
loads the selected gate and/or compressor/limiter preset into the currently selected
path’s dynamics module. The preset number and device(s) loaded depends on the
state of following controls:
- The preset number selected on the LCD.
- The On/Off state of the Gate button
- The On/Off state of the C/L button.
See §B.5.6 for more information about dynamics presets.
• Save Button: Pressing Save while holding the Preset/Key/Link selection button
saves the current gate and/or compressor/limiter settings into the currently selected
preset. The preset number and device(s) saved depends on the state of following
controls:
- The preset number selected on the LCD.
- The On/Off state of the Gate button
- The On/Off state of the C/L button.
See §B.5.6 for more information about dynamics presets.
• Set All Button: Pressing Set All and Load sets all gates and/or compressor limiters to
the currently selected preset The device(s) set depends on the state of following
controls:
- The On/Off state of the Gate button
- The On/Off state of the C/L button.
If Set All is pressed alone, the LCD shows “PRESS LOAD TO SET ALL...”
indicating that Load and Set All must be pressed together.
B - 8
August 1999
Appendix B Dynamics Option STATUS 18R Operation and Maintenance Manual
